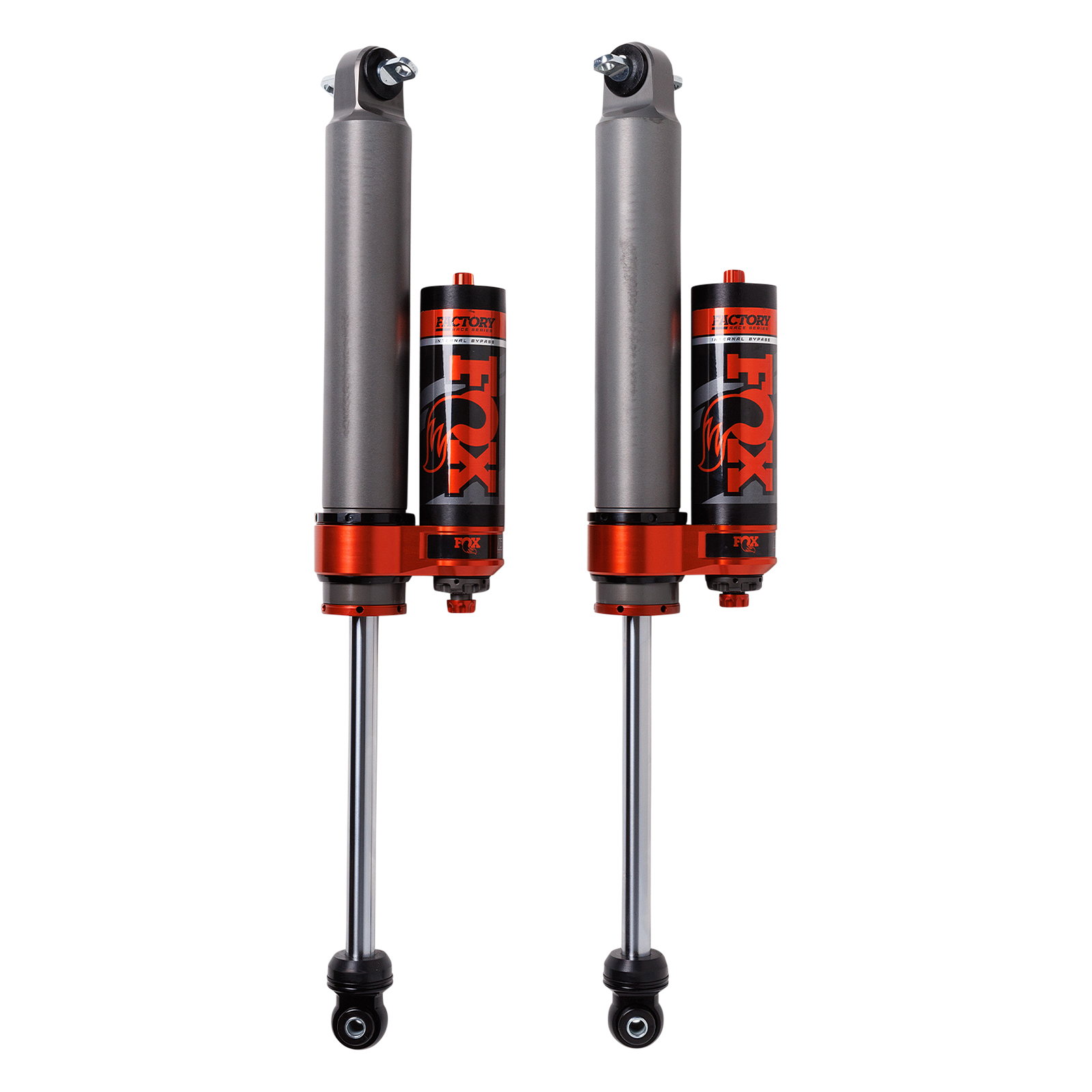

Shock Absorber 07-18 Jeep Wrangler JK Rear Internal Bypass 2.5 Factory Race Series Piggy-Back 2.5-4 Inch Lift Dual Speed Compression Kit FOX

SKU

883-26-110-BKTK

List price

$2,099.95

Price

$2,099.95

Description

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.

Features and Benefits:

Performance Tuned For Vehicle Specific Application
Durable Zinc Plated Seamless Alloy Body
External Reservoir System Dissipates Heat Fast
Black Anodized CNC Machined Aluminum Components

Details:

Lift Height: 2.5-4 Inch Lift
Diameter: 2.5 Inch
Location: Rear
Series: Factory Race
Top: Bar Pin
Travel Length: 10.58 Inch
Bottom: Eyelet
Extended Length: 27.88 Inch
Collapsed Length: 17.12 Inch
Reservoir Type: Piggyback
Shock Type: Smooth Body
Material: Aluminum
Warranty: 1 Year
Sold As: Kit

Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/aaOPZxjJDRQ%3Fsi%3DYHHwfDwACC-JaixT&max_width=0&max_height=0&hash=fvGtOdDaWsSEM2tsw7z5tqXAKxGrPBCHL4ozvRyIXnY"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Ride Comparison – Factory 3.0 vs. Performance Elite 2.5 Shocks » ACADEMY | FOX"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2007-2017 Jeep Wrangler

2018-2018 Jeep Wrangler JK

Installation

Installation Instructions

605-01-322_REV-1_Color.pdf (5.43 MB)

Specs

Material

Aluminum

Specs

Country of Origin: US

Shock Type: Smooth Body

UPC: 711745592674

Availability: Available

Location: Rear

Universal: No

Collapsed Length: 17.12 Inch

Extended Length: 27.88 Inch

Travel/Length: 10.58 Inch

Lift Height

2.5-4 Inch Lift
