Ram 13+ Heavy Duty Drag Link Synergy MFG

SKU

8701-01-FSVG

List price

$400.00

Price

$400.00

Description

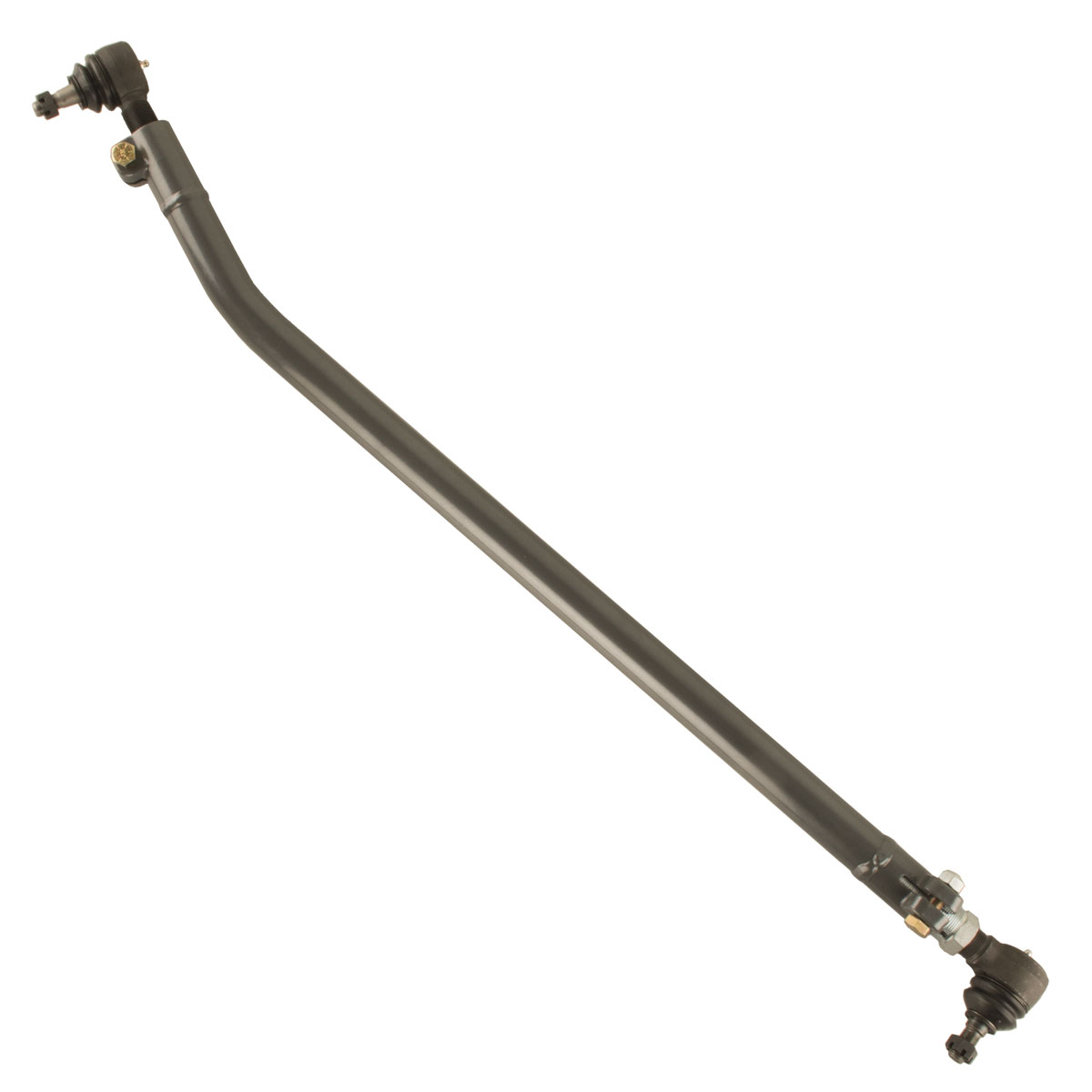

Ram Heavy Duty Drag Link. All new design and components specific to the new radius arm Ram Truck platform. Direct bolt-in replacement for the stock drag link for an immediate upgrade in steering feel, stiffness, and strength. Drag link is made from high quality DOM steel tubing for maximum strength. Single plane tie rod end on the pitman arm side eliminates drag link flop. You will not find a better drag link on the market!

Fits: 2014+ RAM 2500/2013+ RAM 3500 4x4

Benefits:

Improves strength and steering feel and eliminates any chance of bending.
Offers a more direct connection to the road compared to stock; no more bent drag links and constantly having to align your vehicle.
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance. Synergy High Performance Grease recommended (4119).
Eliminates unwanted drag link flop.
Drag Link length adjustable on the vehicle.
Compatible with stock wheels and tires.

Technical Features:

Drag Link bolts right into the factory mounts with no additional wheel requirements.
No factory drag link components need to be reused.

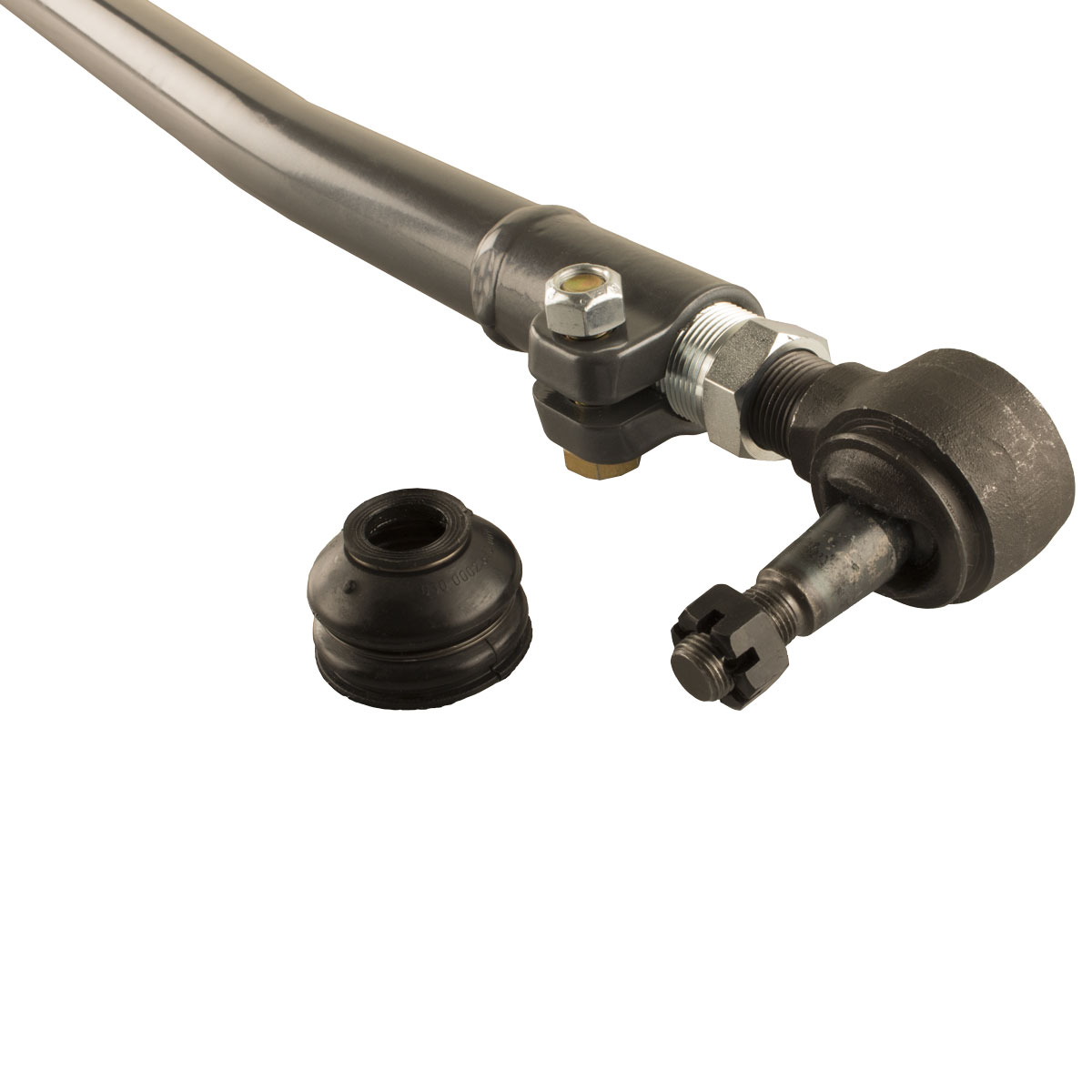

Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 inch shank.

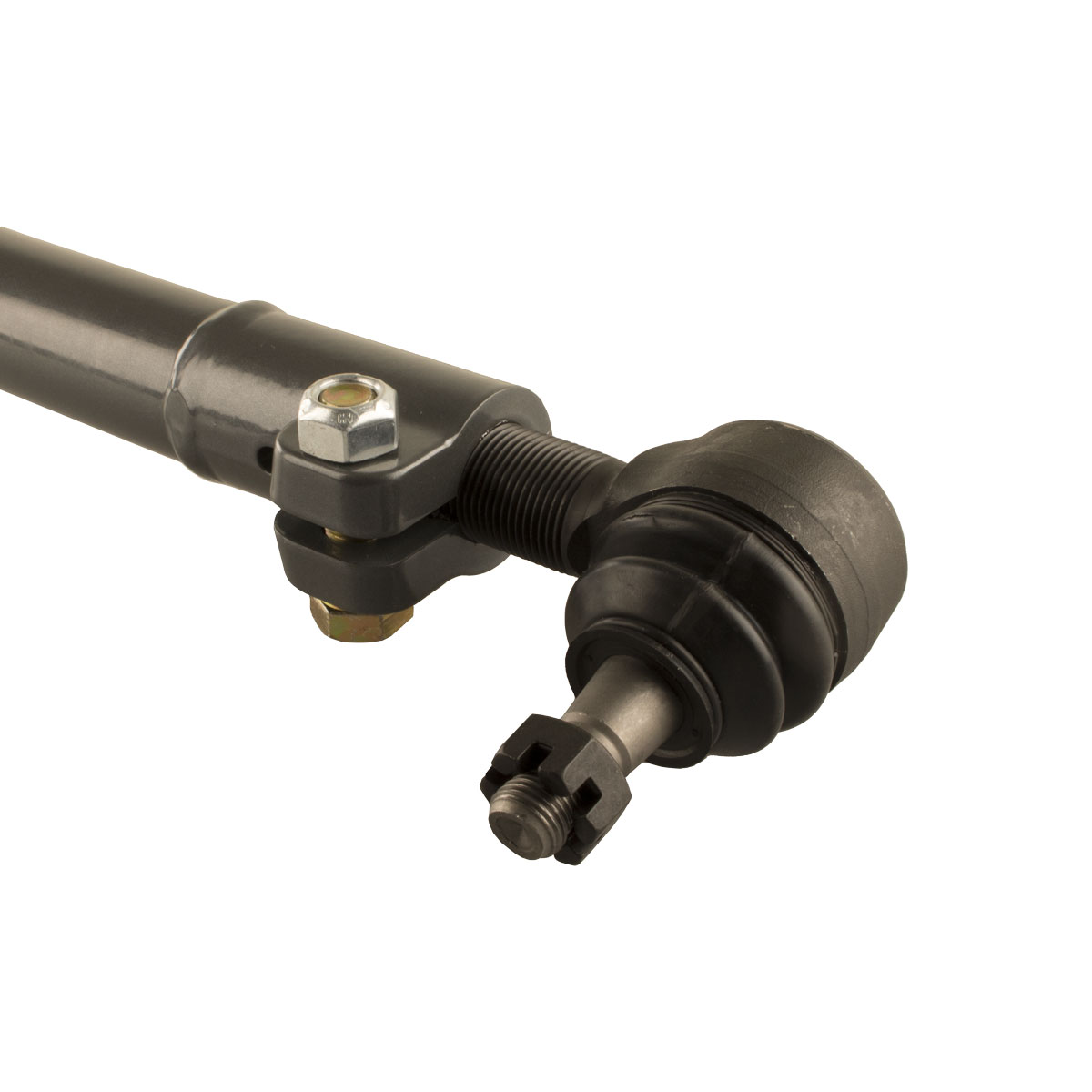

Single Plane tie rod end used on the pitman arm side to prevent unwanted drag link flop.
Drag Link is CNC formed from 1.50 inch x .250 wall DOM tubing.
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle.
Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment.
100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools.

Notes:

Replacement Tie Rod Ends: 4134-L (1x), 4160-L (1x)
Min collapsed length: 39.13 inches
Max extended length: 41.50 inches

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/40Ti7W6lG6A&max_width=0&max_height=0&hash=RaOA_4HG9zwtOfQIfr7ToecabOT7p6luhkczPtjtDbs"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Synergy Manufacturing"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2013-2018 Ram 3500 Big Horn

2013-2018 Ram 3500 Laramie Longhorn

2013-2018 Ram 3500 Tradesman

2013-2013 Ram 3500 ST

2013-2018 Ram 3500 SLT

2013-2015 Ram 3500 Lone Star

2013-2018 Ram 3500 Laramie

2014-2015 Ram 3500 Laramie Limited

2014-2018 Ram 2500 Laramie Longhorn

2014-2018 Ram 2500 Big Horn

2014-2015 Ram 2500 Lone Star

2014-2016 Ram 2500 Outdoorsman

2014-2018 Ram 2500 Power Wagon

2014-2015 Ram 2500 Laramie Limited

2014-2018 Ram 2500 SLT

2014-2018 Ram 2500 Laramie

2014-2018 Ram 2500 Tradesman

2016-2018 Ram 2500 Limited

2016-2018 Ram 3500 Limited

2017-2017 Ram 3500 Lone Star

Installation

Installation Instructions

8701-01-INST.A.pdf (999.48 KB)

Specs

Country of Origin: USA

UPC: 00887753146441

Location: Front

Harmonized Tariff Code: 8708948000
