ProLink E Expert Shackle Mount Assembly Factor 55

ProLink E Expert Shackle Mount Assembly Black Factor 55

SKU

00310-04-GGBW

List price

$261.25

Price

$261.25

Description

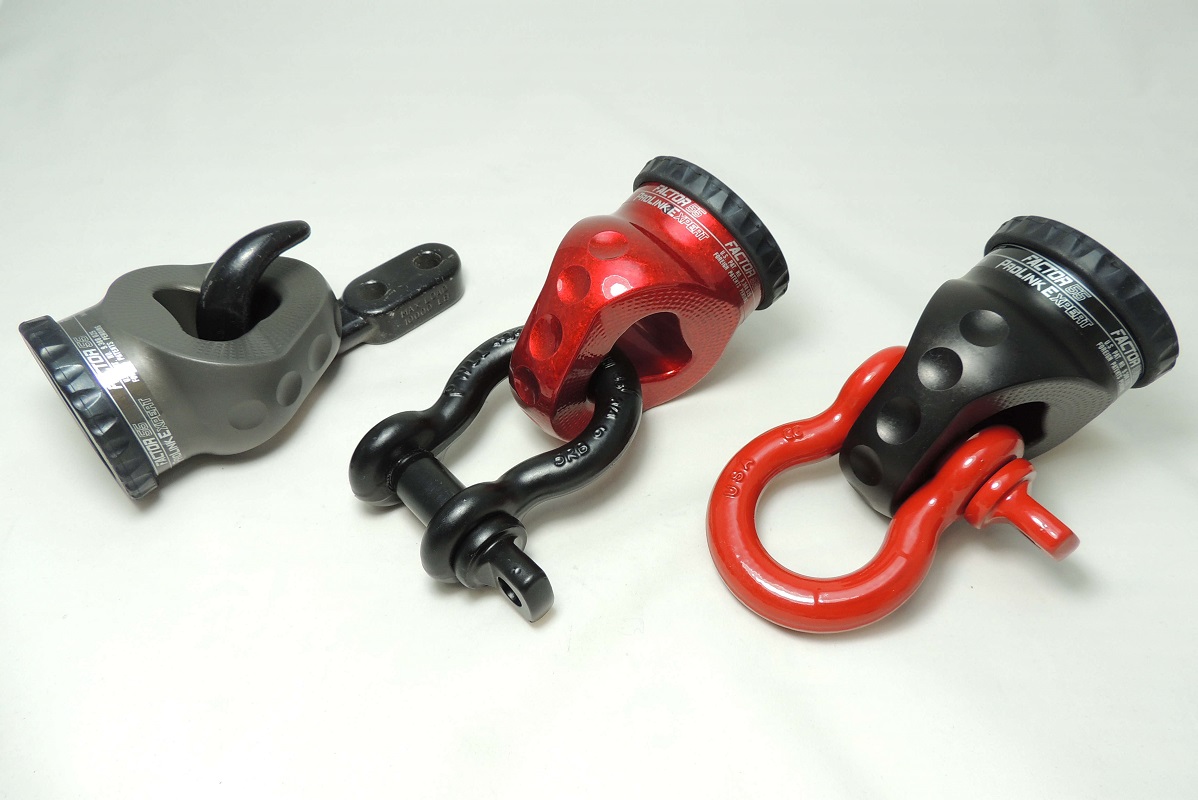

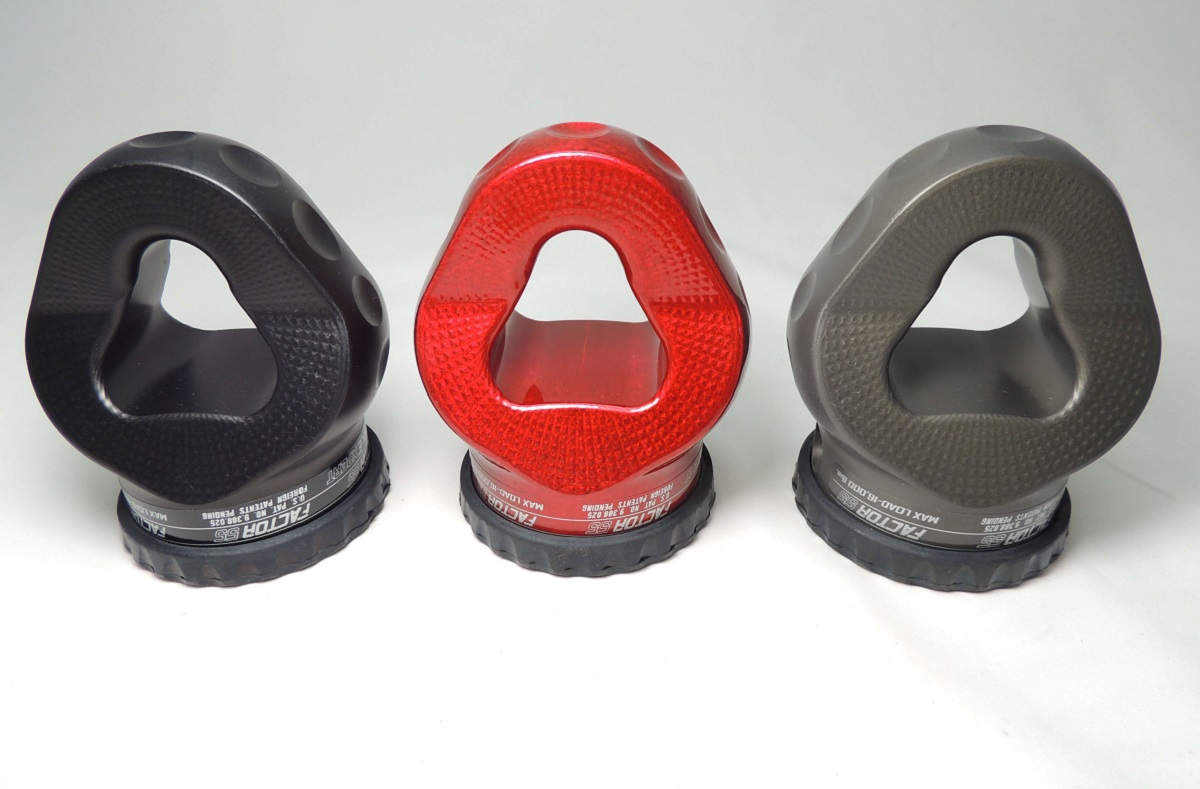

ProLink Expert. Replace conventional winch hooks with a safer more secure shackle/D-ring. Lightweight, Precision CNC machined 6000 series aluminum. No splicing required, titanium double shear pin design.

Designed for both steel cables and synthetic winch ropes. Integrated EPDM rubber boot for fairlead protection. Connects to either the pin or bow end of common 3/4 inch screw pin shackles. Connects to the pin ends of 7/8 inch and 1 inch screw pin shackles. Fits over most OEM tow hooks.
Warning: Keep forces in line. Do not side load shackle

Features:

Color: Black
For rope and cable diameters up to 3/8 inch
Fits common 3/4 inch screw pin shackles/D-rings
Mil-Spec anodized or powder coated
5/8 inch diameter 6AI-4V titanium double shear pin
Max Load: 16,000 pounds
Ultimate Strength: 40,000 pounds
Weight: 30oz

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/A6EEwCvtqLo&max_width=0&max_height=0&hash=ZCjiGj9EyqERlB_Gyy__JpkIldEXDGNHOjCn8y6JajI"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Factor 55 ProLink Products"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Specs

Material

6160 Aluminum

Specs

Country of Origin: USA

Sold As: Each

Availability: Available

Universal: Yes

Mfg Label: Winch Shackle Mount

Color

Black
