Description

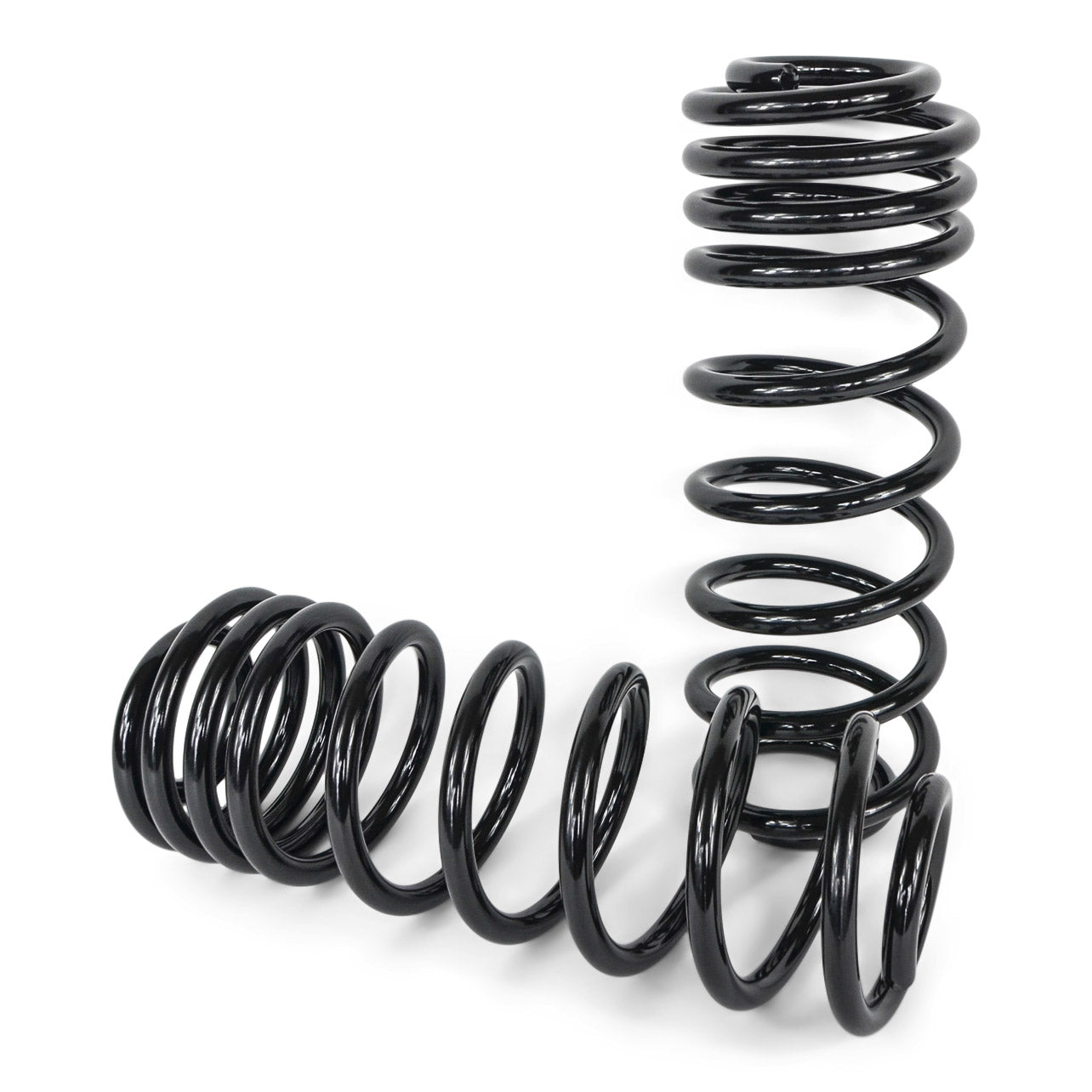

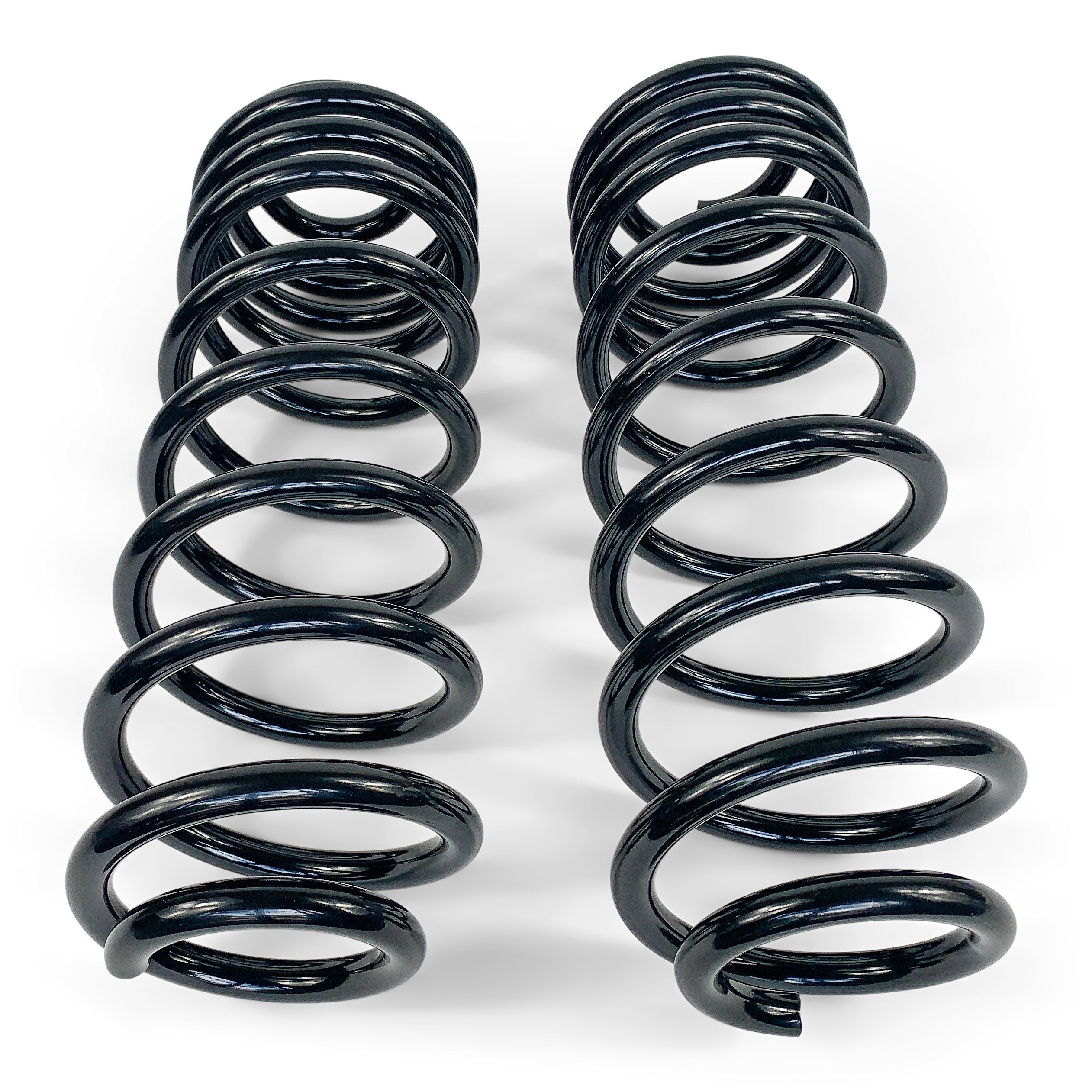

JL 1.5 inch HD Rear Coils. Jeep Wrangler 1.5 inch HD Dual Rate Rear Coil Springs (2018+, JL)
Quick Glance:
- Free Length = 17.75 +/- .25
- Spring Rate 1 = 145 LBS/IN
- Spring Rate 2 = 250 LBS/IN
- Powder Coated Black
Made in the USA!
Enhance your Jeep Wrangler's suspension with our premium coil springs, engineered for exceptional ride quality, durability, and load-carrying capacity. Perfect for daily driving and off-road adventures, these springs handle aftermarket bumpers, winches, and accessories without sacrificing comfort.
Key Features:
- Superior Ride Quality: Designed for a smooth, comfortable ride without compromising durability.
- Load-Carrying Capacity: Built to handle the added weight of aftermarket bumpers, winches, and gear with ease.
- High-Quality Construction:
- Taller spring design for increased capacity without stiffness.
- Powder-coated black for rust and corrosion resistance.
- Individually Packaged: Each spring is labeled with a custom part number and securely packaged in a heavy-duty bag.
Why Choose Our Coil Springs?
- Balanced Performance: Delivers a smooth ride while supporting heavy loads.
- Durable and Reliable: Crafted to withstand rugged off-road conditions and extended use.
- Custom Fit: Designed specifically for Jeep Wrangler models for seamless integration.
Kit Includes:
Two coil springs, sold as a pair.
Upgrade Your Jeep's Suspension
Achieve the perfect balance of comfort, capacity, and durability with our Jeep Wrangler Coil Springs. Designed for reliable performance and a smooth ride, these springs are ideal for both on-road and off-road enthusiasts.
Jeep Wrangler (JL 2018+) HD dual rate rear coils provide the perfect solution for your heavily loaded vehicle without sacrificing ride quality!
Designed for vehicles equipped with approximately 300-400 lbs + of extra weight from heavy gear and accesories. Due to the increasing popularity of Overlanding, we wanted to create a spring capable of standing up to your bed rack, roof top tent, etc. without having to sacrifice height or ride quality!
Note: While these springs are designed to provide the advertised height when used on a heavily loaded vehicle, expect 1/2 inch-1 inch more lift if used on vehicles that fall below the intended weight range for this product.
Made-In-The-USA, zinc plated, and powder coated black for long lasting protecting from the elements.
Coil Springs: Linear rate, dual rate, triple rate, what do you really need? We actually use all 3 variants depending on the vehicle, height and capacity requirements. Linear coils have a single spring rate and are evenly spaced top to bottom which makes for a great spring for most applications. T
he main advantage being that the coils don't touch each other, which can lead to wear and tear and coil failure.
The dual rate coil has a tight set of coils usually at the top, and then a second set of coils with more traditional spacing below. Dual rate coils do not ride any better than single rate coils despite popular belief.
The first rate is usually completely compressed and acts as a spacer, its purpose is to provide a longer free length coil so at maximum articulation the coil doesn't unseat.
In most applications, including the Front of our JL/JT 2.5 and 3.5 inch lift kits the coils do not unseat and there is a top post and bottom bump stop present so coils cannot fall out even at max articulation.
But in the rear, there is no coil post or lower internal retainer, and therefore a dual rate coil is necessary, or in the JT's case a triple rate coil due to the additional cargo area and weight.
All of our coils are powder coated black using a new SealKor finish which is a zinc rich powder coat to help in the prevention of rust and corrosion.
