Jeep Front Adjustable Track Bar Jeep TJ/LJ, XJ, ZJ, MJ Synergy MFG

SKU

8155-01-FSVG

List price

$300.00

Price

$300.00

Description

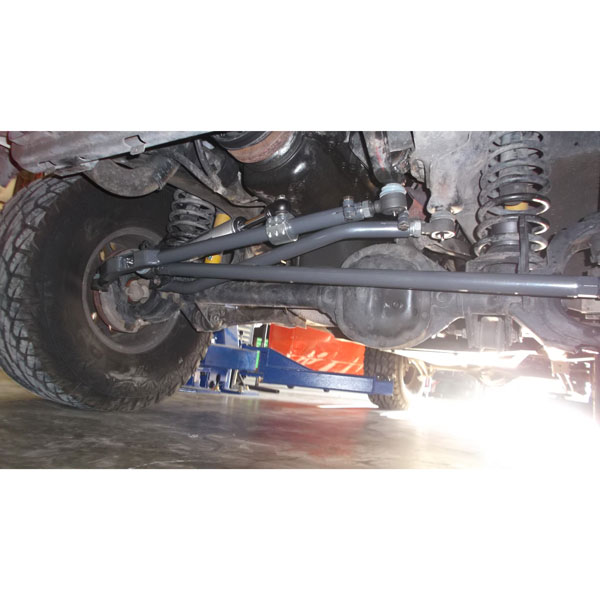

Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar. A heavy duty, adjustable, front track bar designed as a factory style replacement for TJ/LJ, XJ, ZJ, and MJ applications. It directly mounts to the factory tapered track bar mount on the frame but requires the axle mount to be drilled to 9/16 inch for added strength. A recommended weld-on gusset is included for the axle side mount for reinforcement. The track bar offers improved rigidity and allows centering of the front axle when running a suspension lift. Fits 0-4 inch lifts.

Fits:

1997-2006 Jeep Wrangler (TJ)
2004-2006 Jeep Wrangler (LJ)
1987-2001 Jeep Cherokee (XJ)
1993-1998 Jeep Grand Cherokee (ZJ)
1987-1992 Jeep Comanche (MJ)

Details:

Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar
Bolts into factory tapered track bar bracket on the frame
Requires axle mount to be drilled to 9/16 inch
Optional welding (required if desired to install axle gusset)
Made from 1-3/8 inch 1018 CR Solid Round Barstock
Includes new Grade 8 mounting bolts and hardware
Synergy double adjuster sleeve and pinch bolt assembly allows for adjustment of track bar length without removal from vehicle
Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance
Fits 0-4 inch Lifts

Notes:

Factory style replacement track bar for 0-4 inch of lift
2.0 inch to 3.0 inch bump stop spacers will be required if the axle is pushed forward slightly from stock and an aftermarket diff cover is used. The larger diameter of the Synergy track bar and tie rod end will interfere with the diff cover if no bump stop spacer is used. We recommend cycling the suspension to full compression with the track bar installed to ensure no interference is occurring.
Approximate collapsed length = 31 inch
Approximate extended length = 32.4 inch

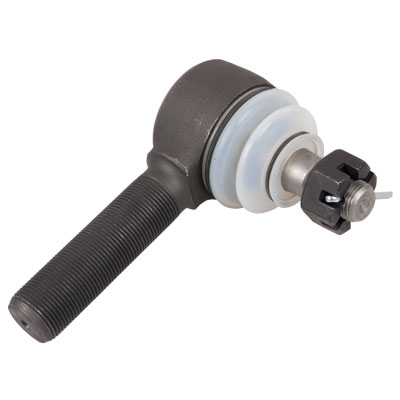

Replacement bushing is 4323-01, replacement tie rod end is 4135-L
Requires drilling. Sanding and welding optional

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/40Ti7W6lG6A&max_width=0&max_height=0&hash=RaOA_4HG9zwtOfQIfr7ToecabOT7p6luhkczPtjtDbs"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Synergy Manufacturing"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1987-1988 Jeep Comanche Laredo

1987-1988 Jeep Cherokee Chief

1987-1992 Jeep Cherokee Limited

1987-1990 Jeep Cherokee Pioneer

1987-1992 Jeep Cherokee Laredo

1987-1992 Jeep Comanche Pioneer

1987-1988 Jeep Comanche Chief

1987-1993 Jeep Cherokee

1987-1992 Jeep Comanche

1988-1992 Jeep Comanche Eliminator

1989-2001 Jeep Cherokee Sport

1991-1992 Jeep Cherokee Briarwood

1993-1998 Jeep Grand Cherokee Limited

1993-1997 Jeep Cherokee Country

1993-1993 Jeep Grand Cherokee

1993-1998 Jeep Grand Cherokee Laredo

1994-1995 Jeep Grand Cherokee SE

1994-2001 Jeep Cherokee SE

1995-1995 Jeep Grand Cherokee Orvis

1996-1996 Jeep Cherokee Classic

1997-1997 Jeep Grand Cherokee Orvis

1997-2006 Jeep Wrangler Sport

1997-2006 Jeep Wrangler SE

1997-1998 Jeep Grand Cherokee TSi

1997-2004 Jeep Wrangler Sahara

1998-1998 Jeep Grand Cherokee 5.9 Limited

1998-2001 Jeep Cherokee Limited

1998-2001 Jeep Cherokee Classic

2002-2006 Jeep Wrangler X

2003-2006 Jeep Wrangler Rubicon

2004-2006 Jeep Wrangler Unlimited

2006-2006 Jeep Wrangler 65th Anniversary Edition

Installation

Installation Instructions

8155-01-INST-A-TJ-FRONT-TRACK-BAR.pdf (768.37 KB)

Specs

Country of Origin: US

UPC: 00887753145451

Location: Front

Harmonized Tariff Code: 8708807000
