Description

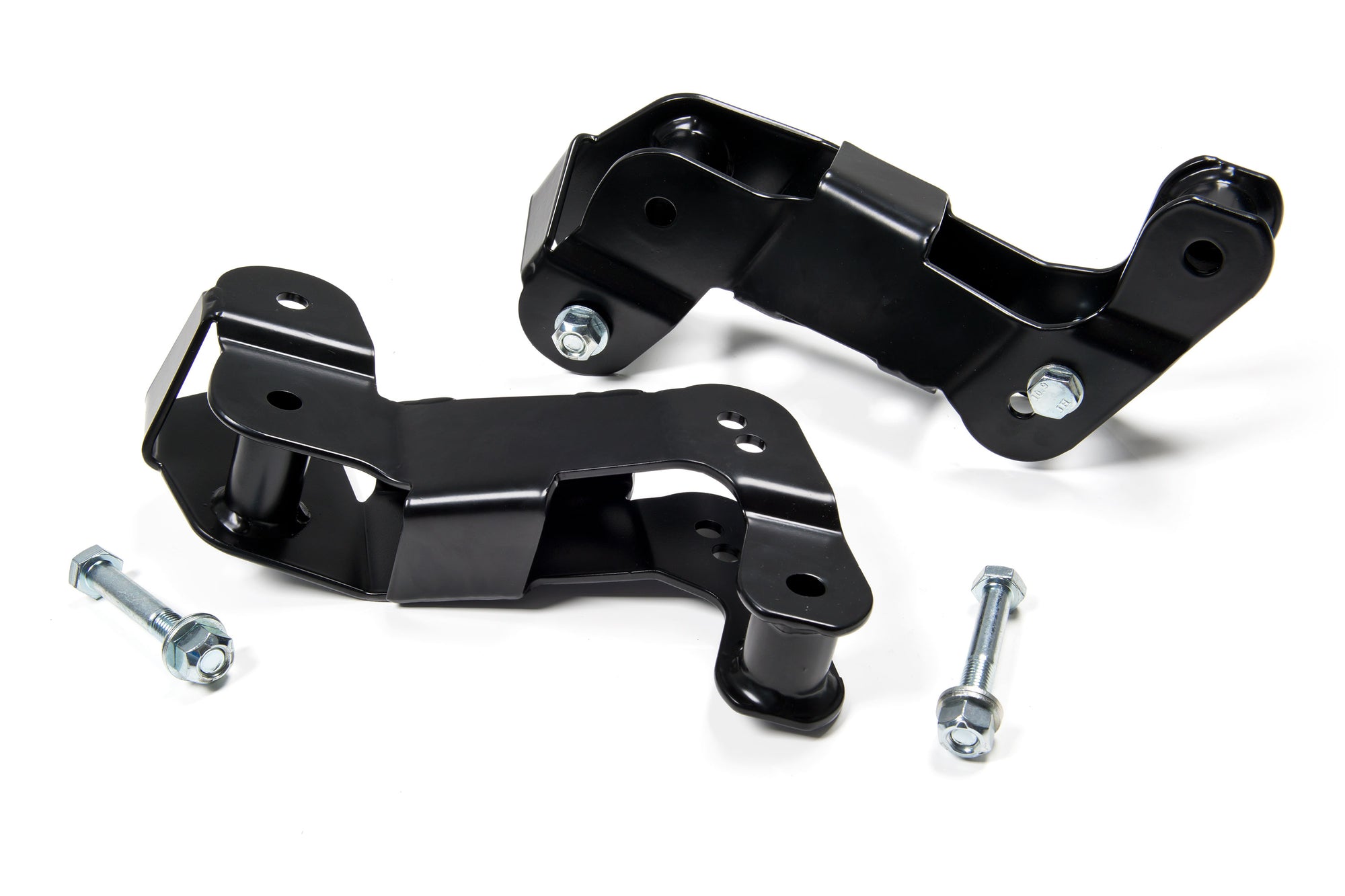

Improve the handling of your lifted Jeep Wrangler JK with JKS Front Control Arm Correction Brackets. Designed for use with 2 inch - 4.5 inch lift kits, these brackets enhance control arm operating angles to mimic or improve on factory arm angles and improve anti-dive during braking.
By lowering the control arm mounting point slightly, the brackets place the arms closer to the axle mount, correcting caster and geometry issues caused by the lifted ride height.
Two mounting hole positions correct geometry for different lift heights. Heavy-duty, 1-piece, fully boxed 7GA steel brackets install inside the factory upper and lower control arm mounts with the factory hardware.
The fully gusseted design provides extra confidence both on and off-road. For ultimate performance, these Control Arm Correction Brackets can be used with JKS adjustable control arms.
Features:
- Correct control arm operating angle and mimic factory suspension geometry.
- Improve on-road handling and control.
- Correct caster for 2 inch - 4.5 inch of lift.
- Improve front drive shaft CV joint operating angles.
- Made from heavy-duty 7GA steel, fully boxed and welded for superior strength.
- Installs inside the factory upper and lower control arm mounts with factory hardware.
