Description
Maximize the performance of your Chevy Trail Boss or GMC AT4 1500 truck by installing FOX Performance Elite 2.5 coil-over kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 0 Inch
- Rear Lift Height: 0 Inch
- Requires a maximum of 5.5 Inch BS Wheel for Tire clearance to the upper ball joint
- All aftermarket wheels should be test fit prior to mounting the Tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
- Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
- 2.7L Turbo models use Diesel kit for proper skid plate fitment.
- FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
- Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Tire Size: 295 / 65 Tire Size 2: 295 / 60 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.53-4 hrs

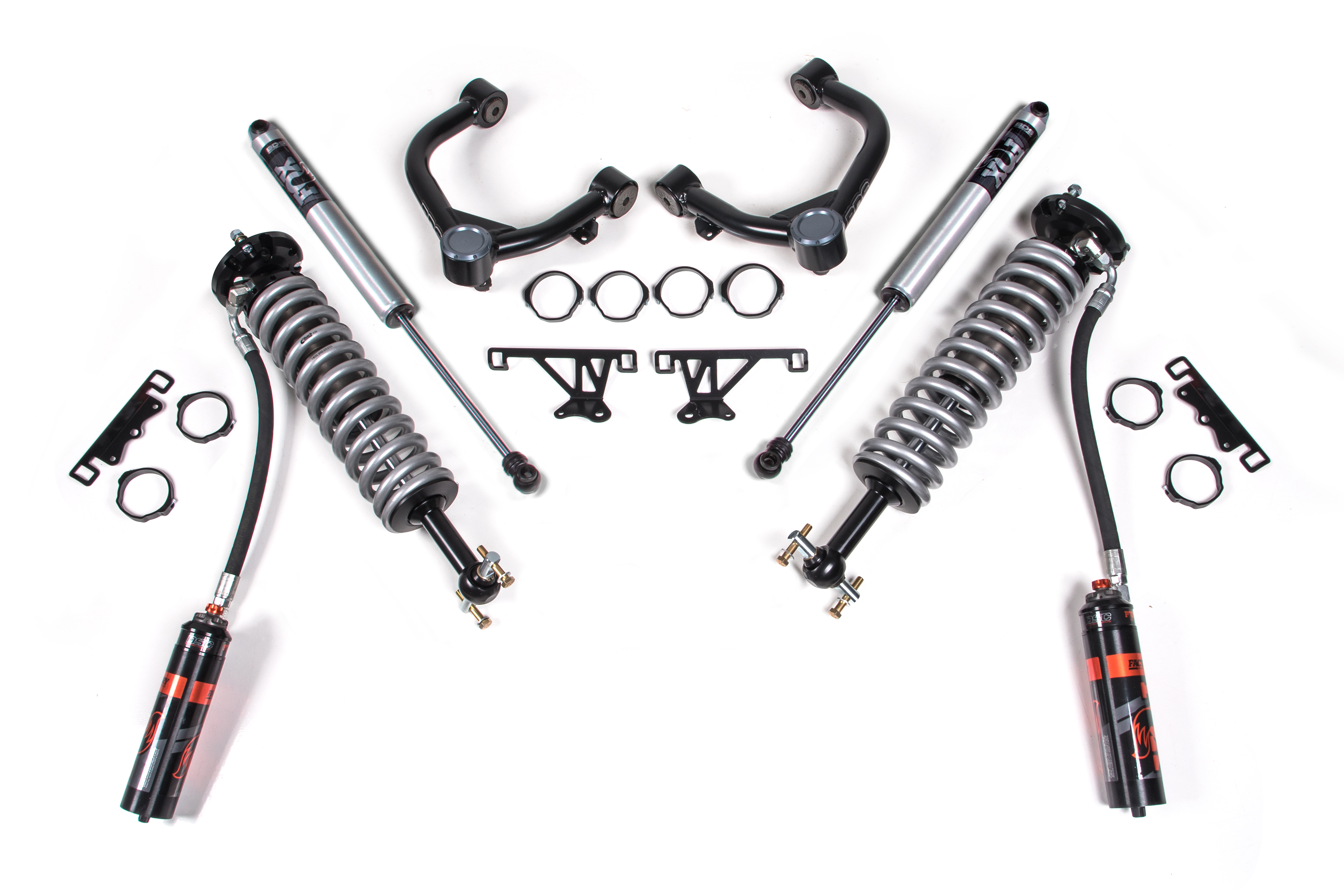

Kit Components:
- Includes one BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 Inch and 6 Inch Lift Applications Only, UPC Code 658848618941
- Includes one FOX88306157, Kit: 2019-2024 GM 1500 Front Coilover, 2.5 Series, AL, R/R, Non-TB/Non-AT4 0-2 Inch Lift, TB/AT4 No Lift, UPC Code 711745603936
- Includes one FOX88326087, Kit: 2019-2024 GM 1500, Rear, 2.5 Truck FRS, R/R, 0-1.5 Inch Lift, Dual Speed Compression Adjust, UPC Code 711745603950
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
Includes one BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 inch and 6 inch Lift Applications Only, UPC Code 658848618941
Includes one FOX88306157, Kit: 2019-2024 GM 1500 Front Coilover, 2.5 Series, AL, R/R, Non-TB/Non-AT4 0-2 inch Lift, TB/AT4 No Lift, UPC Code 711745603936
Includes one FOX88326087, Kit: 2019-2024 GM 1500, Rear, 2.5 Truck FRS, R/R, 0-1.5 inch Lift, Dual Speed Compression Adjust, UPC Code 711745603950
