Description

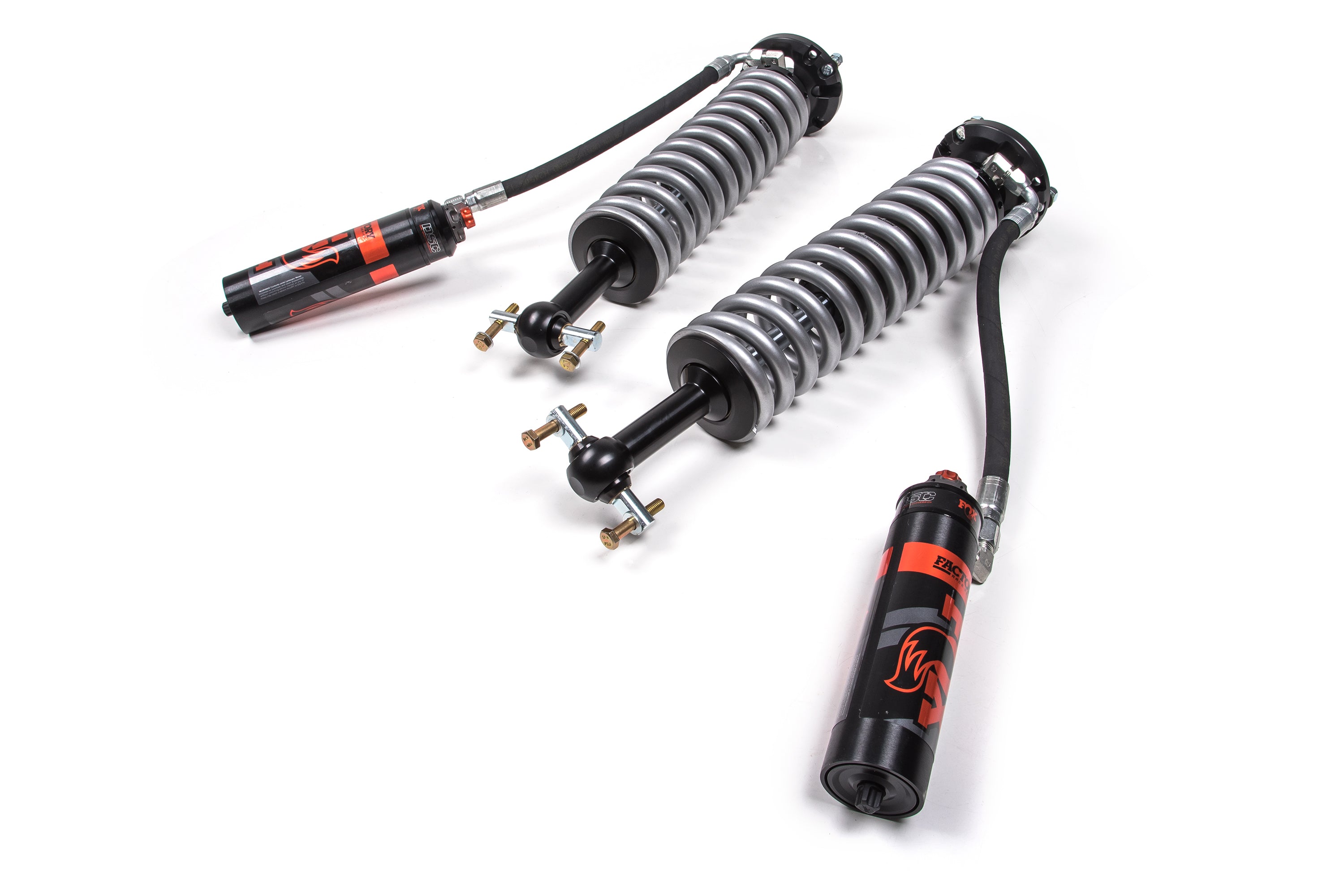

Give your 2019-2023 Silverado/Sierra 1500 with UCA a race-winning technology upgrade to improve damping in any terrain with FOX Performance Elite Series 2.5 Coil-Over shocks with Dual Speed Compression (Dual Speed Compression Adjust) Reservoir Adjusters.
Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box.
The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
- Type: Shocks
- Lower Mount Type: Bar Pin
- Upper Mount Type: OEM
- Gas Charged: true
- Adjustable: true
- Adjustable Dampening: No Adjustable Dampening
- Compressed Length: 21.1400 Inch
- Travel Length: 5.4800 Inch
- Extended Length: No Extended Length
- Shaft Diameter: 7-8
- 2.5-inch Impact extruded and CNC machined 6061-T6 aluminum body resists rust over time
- Hard-anodized for a durable finish
- Black-anodized, CNC-machined 6061-T6 billet aluminum
- Application-specific, adjustable 3.0 Eibach racing springs
- 7/8-inch hard chrome-plated steel shafts
- Application specific valving to maximize performance
- Requires upper control arm.
Kit Components:
- Includes one BDS121633, 2019-2024 Chevy/GMC 1500 Coilover Reservoir Mounting Bracket Kit, UPC Code 658848619184
- Includes one FOX88406323, Kit: BDS 2019-2024 GM 1500, 2.5 Fox Performance Elite Series, R/R, Front, C/O, 6 Inch Lift, Dual Speed Compression Adjust
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Installation
Specs
Kit Components
Includes one BDS121633, 2019-2024 Chevy/GMC 1500 Coilover Reservoir Mounting Bracket Kit, UPC Code 658848619184
Includes one FOX88406323, Kit: BDS 2019-2024 GM 1500, 2.5 Fox Performance Elite Series, R/R, Front, C/O, 6 inch Lift, Dual Speed Compression Adjust
