Forged Johnny Joint 2 1/2 Inch 2.625 Inch X 0.562 Inch Ball 1 1/4 Inch-12 Shank Externally Greased Each RockJock 4x4

Forged Johnny Joint 2 1/2 Inch 2.625 Inch X 0.562 Inch Ball 1 1/4 Inch-12 Left Hand Threaded Shank Externally Greased Each RockJock 4x4

SKU

CE-9114L-HWSH

List price

$66.00

Price

$66.00

Description

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

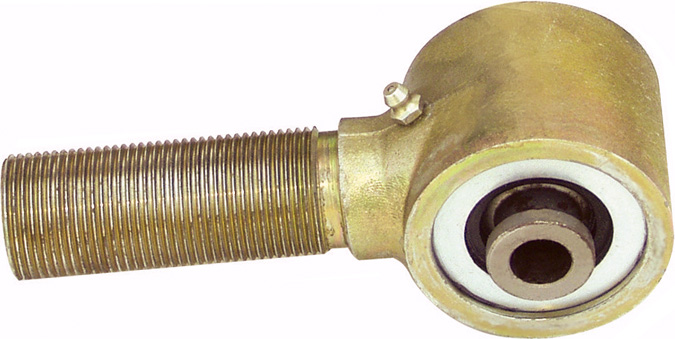

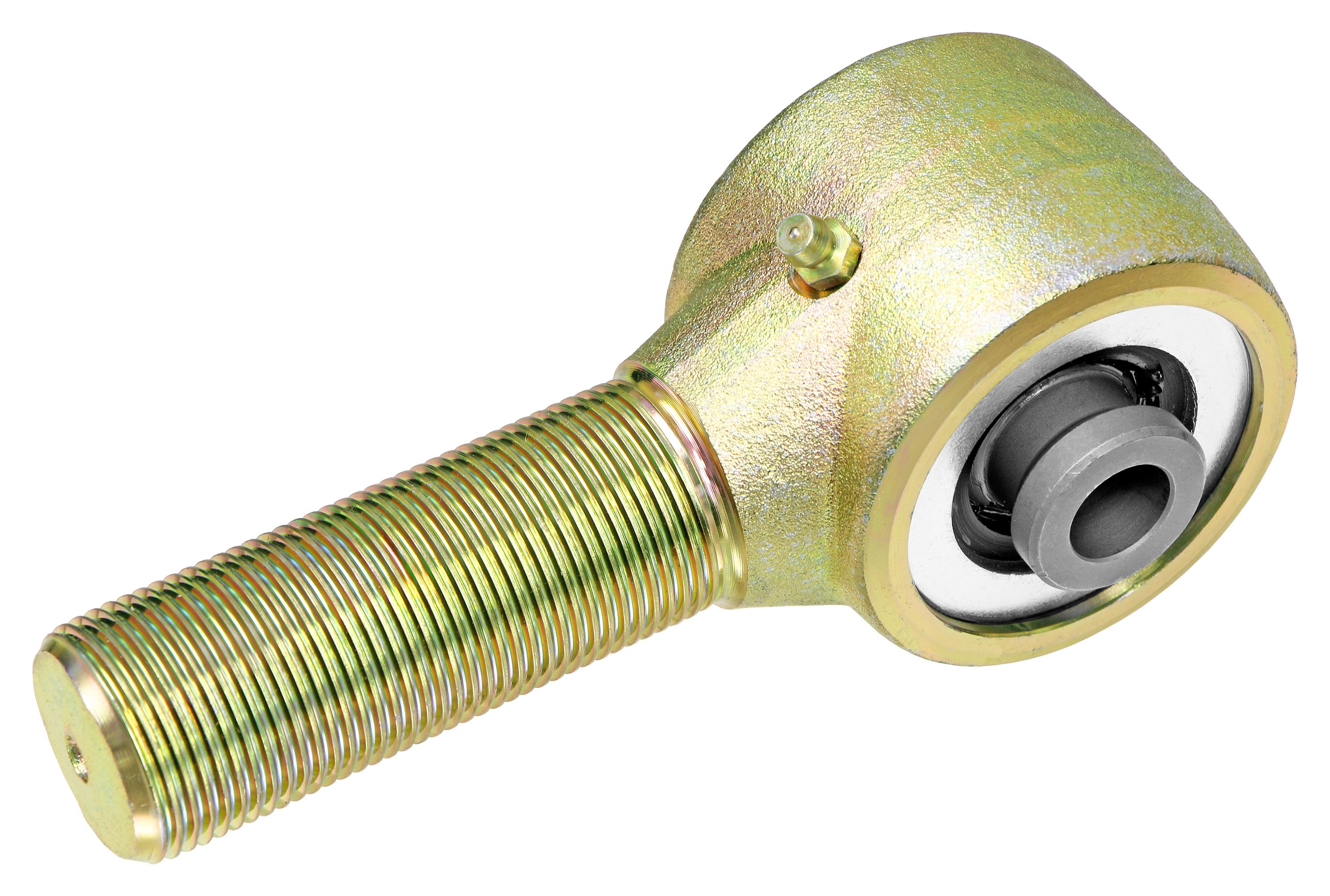

This specific joint is a 2 1/2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 1 1/4 Inch-12 left hand threads on the shank, and a 2.625 Inch mounting width ball with a .562 Inch thru bolt hole. Finished in gold zinc plating.

Details:

Forged Johnny Joint
2 1/2 Inch
2.625 Inch X 0.562 Inch Ball
1 1/4 Inch-12 Left Hand Threaded Shank
Externally Greased
Each

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/xy4RwEDty5M&max_width=0&max_height=0&hash=eAxqRdUmSoXuwhhpPv4w64JUmK8__BJAb1oYSfP_B3k"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "2019 RockJock 4x4 SEMA booth video."
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Specs

Country of Origin: US

Sold As: Each

UPC: 810038152219

Availability: Available

Universal: Yes

Hazmat Flag: No

Thread Rotation: Left Hand Thread
