APEX Truss Upper Link Mount For 97-06 Wrangler TJ Artec Industries

SKU

BR1146S-GNKQ

List price

$24.99

Price

$24.99

Description

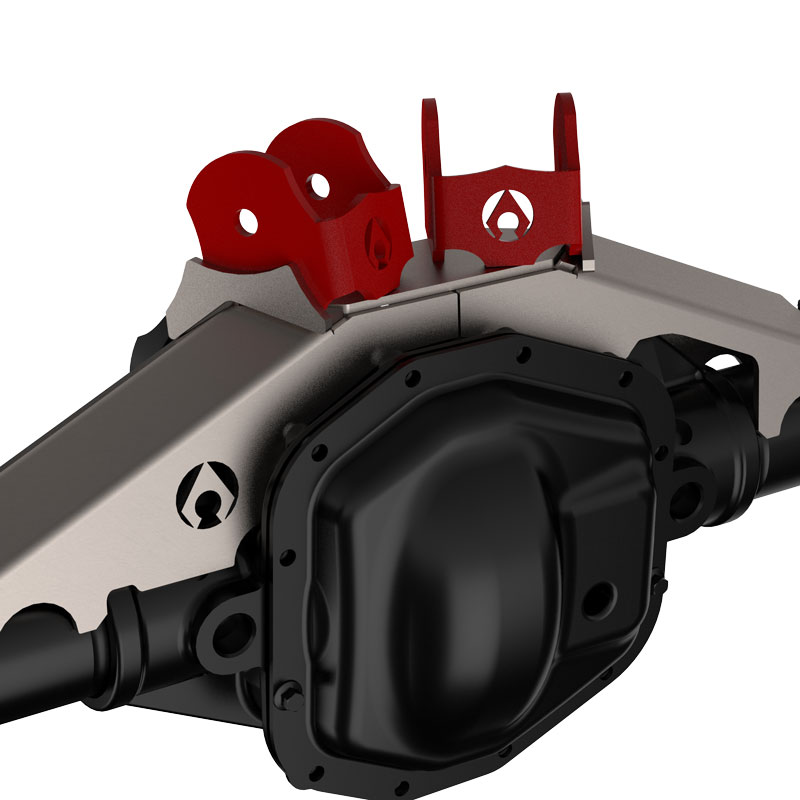

These Link Mounts are designed to mount on a flat surface such as a truss. With the optional APEX Gusset, these will fit perfectly on the new APEX rear Trusses. The APEX gussets allows for your UCA brackets to be mounted at various angles and widths so you can build your 4-link the way it needs to be and be assured the gusset will allow full contact with the bracket and truss.

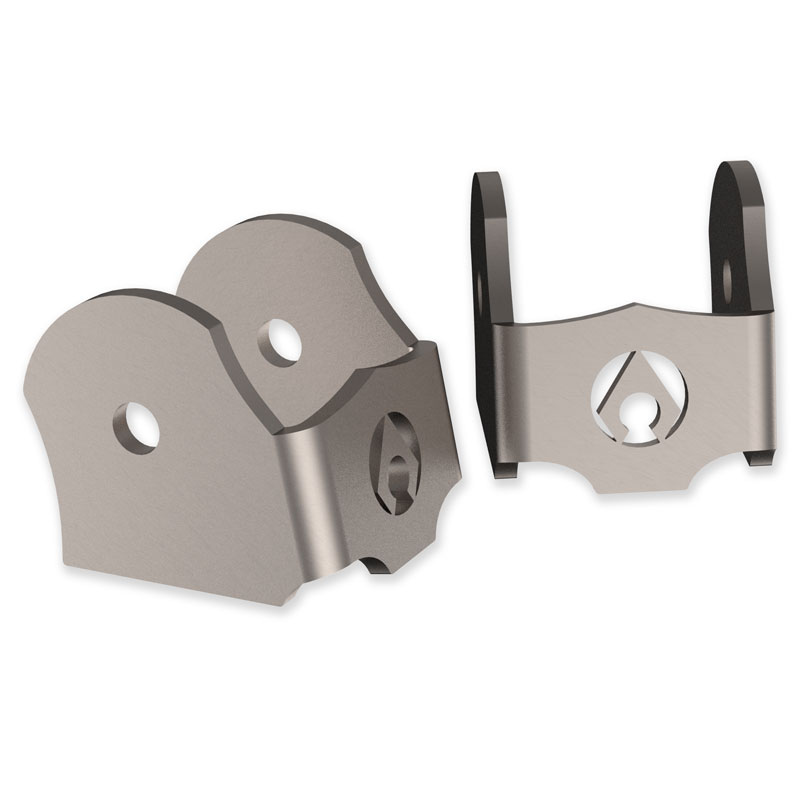

These brackets are CNC cut and bent from 1/4 inch thick mild steel. The bend strengthens the mount so no additional reinforcement is needed. Set at 2.63 inch inner widths for the most common joints. Hole size 9/16 inch but you can drill it out to up 1.0 inch if you'd like.
Features:

APEX Truss Upper Link Mount
Material: 1/4 inch mild steel
Bolt Hole Size: 9/16 inch
Fits: 1997-2006 Jeep TJ and 1997-2006 Jeep LJ
Sold As: Each

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/WOE7xalktJA&max_width=0&max_height=0&hash=9iSOlijid0w_FTGakARZC0TFLdEQq1MqIYLWuSBJBTs"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "#Arteclife"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1997-2004 Jeep Wrangler Sahara

1997-2006 Jeep Wrangler SE

1997-2006 Jeep Wrangler Sport

2002-2006 Jeep Wrangler X

2003-2006 Jeep Wrangler Rubicon

2004-2006 Jeep Wrangler Unlimited

2005-2006 Jeep Wrangler Unlimited Rubicon

2006-2006 Jeep Wrangler 65th Anniversary Edition

Specs

Finish

Bare

Material

Steel

Specs

Country of Origin: US

Sold As: Each

UPC: 810039900857

Availability: Available

Universal: No
