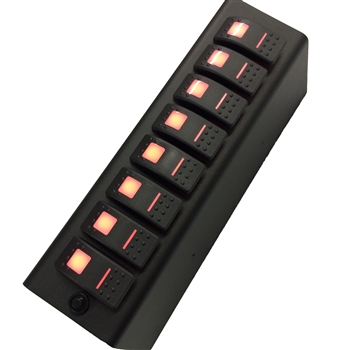

Add On Red LED 8-Switch Panel for 09-18 Jeep Wrangler JK (for SourceSE)

SKU

860880-GNJV

List price

$350.00

Price

$350.00

Description

JK Add On Switch Panel For 8 Circuit SE System for 2009-2018 Wrangler JK with Red switches. This is an Add On Only to be added to SE Touchscreen system (8-700-TSB-JK) to allow Touchscreen and hard switch panel option. Not designed to be used without SourceSE (8 Circuit Source).

The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.

Switch Panel Features:

Dual lit (LED indicator lights, On position and pilot light) in Red (All switches will be one color)
The new switch panel has 8 switches. This panel uses an Ethernet cable that interfaces with the Source with an RJ-45 plug on both ends. Standard cable length will be 10 feet.
Each switch is programmable for Strobe or Flash (by a sequence of On/Off/On quickly)
Automatic system shut down when the panel is unplugged
Lower pilot light has an independent power control push button for full operator control
Switches are Carling Technologies Contura series with an IP67 rating (marine/heavy equipment)
Switch Panel housing is Not plastic but rather, an aluminum formed and welded design to match the interior of the Jeep JK (2009-2015) with specific mounting hardware
Switch panel can be daisy-chained for remote operations (EG: one panel in cab and one panel in far back of truck) can easily add up to 10 switch panels. Options to mix and match with the Touchscreen panels as well.
Two ports available integrated into the CAN-Bus controller.

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/jSkmQyQZUu8&max_width=0&max_height=0&hash=N-8H-RIjCJXSWCF0AxxqcWe5dHjlr_OWju6D6DMsJN0"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "sPOD SE system"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2009-2017 Jeep Wrangler Rubicon

2009-2017 Jeep Wrangler Sahara

2009-2017 Jeep Wrangler Unlimited Rubicon

2009-2017 Jeep Wrangler Unlimited Sahara

2009-2010 Jeep Wrangler Unlimited X

2009-2010 Jeep Wrangler X

2010-2017 Jeep Wrangler Sport

2010-2017 Jeep Wrangler Unlimited Sport

2011-2011 Jeep Wrangler 70th Anniversary

2011-2011 Jeep Wrangler Unlimited 70th Anniversary

2016-2016 Jeep Wrangler 75th Anniversary

2016-2016 Jeep Wrangler Sport S

2016-2016 Jeep Wrangler Unlimited 75th Anniversary

2016-2016 Jeep Wrangler Unlimited Sport S

Specs

Finish

Powdercoat

Material

Aluminum Formed

Specs

Country of Origin: US

Sold As: Kit

UPC: 816482021071

Availability: Available

Universal: No

Battery Cable Length: 84 Inch

Built In Blue Tooth: No

Capacity: 100 AMP

Circuit Breaker Included: 50 AMP

Legends Included: No

Mfg Label: Switch Panel

Mount Location: Between visors on windshied frame

Number of Switches: 8

Product Notes: Must have 8 Circuit SE Source for JK

Single Circuit Capacity: 30 AMP

Switch Color: Red

Switch Illumination: Dual LED

Color

Black
