88-98 K1500/K250 092-97 Yukon 95-98 Tahoe 6 LUG 4WD 6 Inch Lift Kit Zone Offroad

88-98 K1500/K250 092-97 Yukon 95-98 Tahoe 6 LUG 4WD 6 Inch Lift Kit No Shocks Zone Offroad

SKU

ZONC14-FQMS

List price

$1,023.80

Price

$1,023.80

Description

Turn heads and drop jaws when you lift your Chevy with this 6 Inch Lift Kit. This kit has everything you need to clear 35 Inch tires and all the pieces and parts for optimal steering and drivetrain geometry.

Fits 4WD 1988-1998 Chevy/GM K1500 truck & SUVs.
Features:

Heavy-duty differential skid slate improves offroad protection.
High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
Lift system does not change the front track width of the vehicle.
Multi-point differential relocation brackets secure front differential for improved CV operating angles.
Relocation bracket allows for reinstallation of the factory spare tire.
Upper control arm relocation brackets correct front suspension geometry.

Quick Specs:

Front Lift Height 6 Inch
Rear Lift Height 5 Inch
Material 1/4 Inch Steel
Front Lift Method Torsion Bar Drop
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size Stock
Back Spacing Stock
Max Tire Size 35 x 12.5
Wheel Size 2 17 x 9
Back Spacing 2 6 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 20 x 9
Back Spacing 3 6 Inch
Max Tire Size 3 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels Yes
Welding Required No

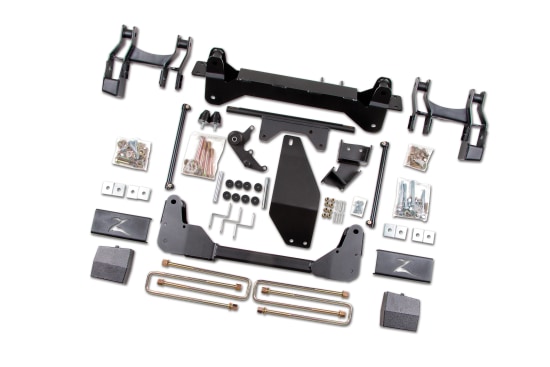

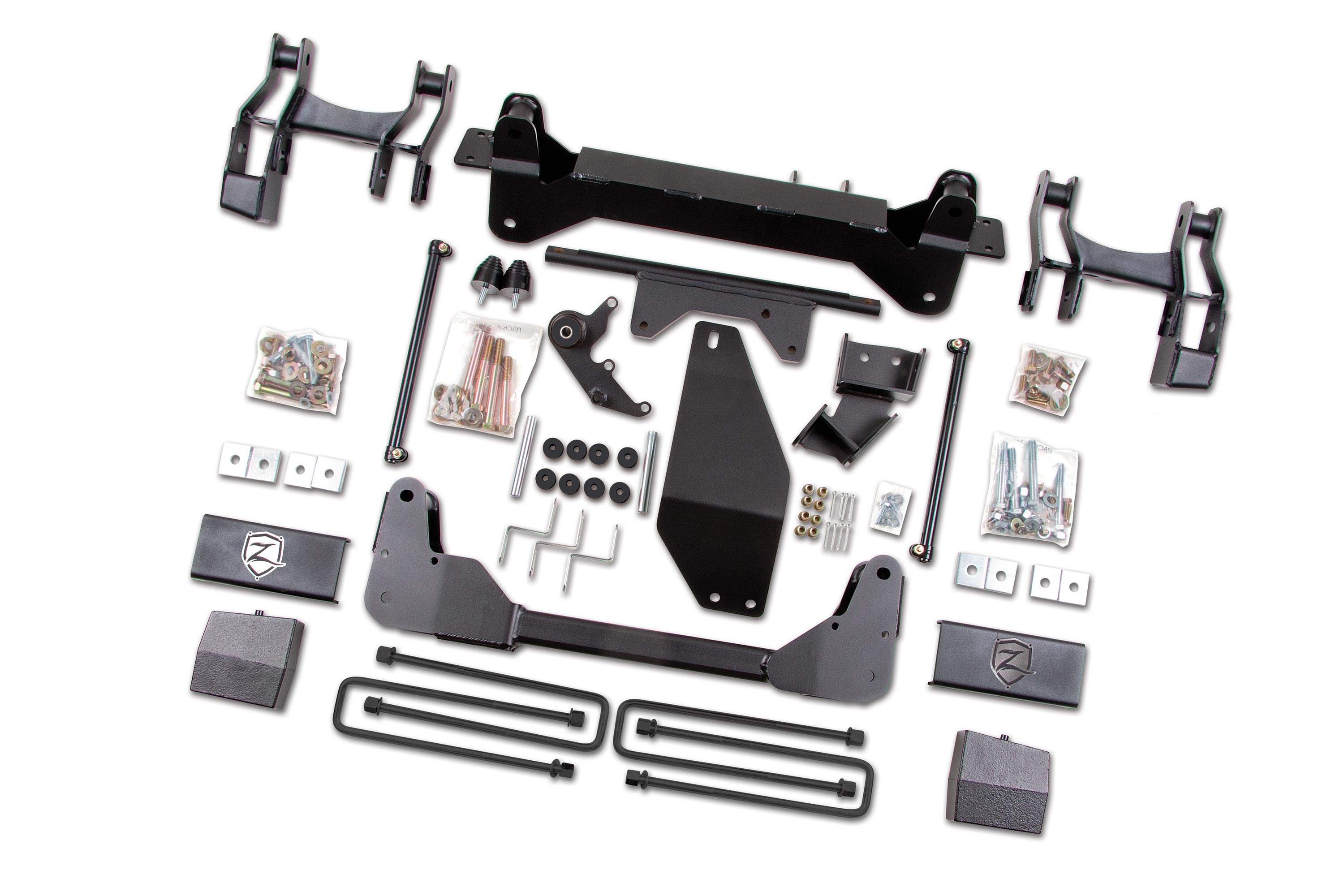

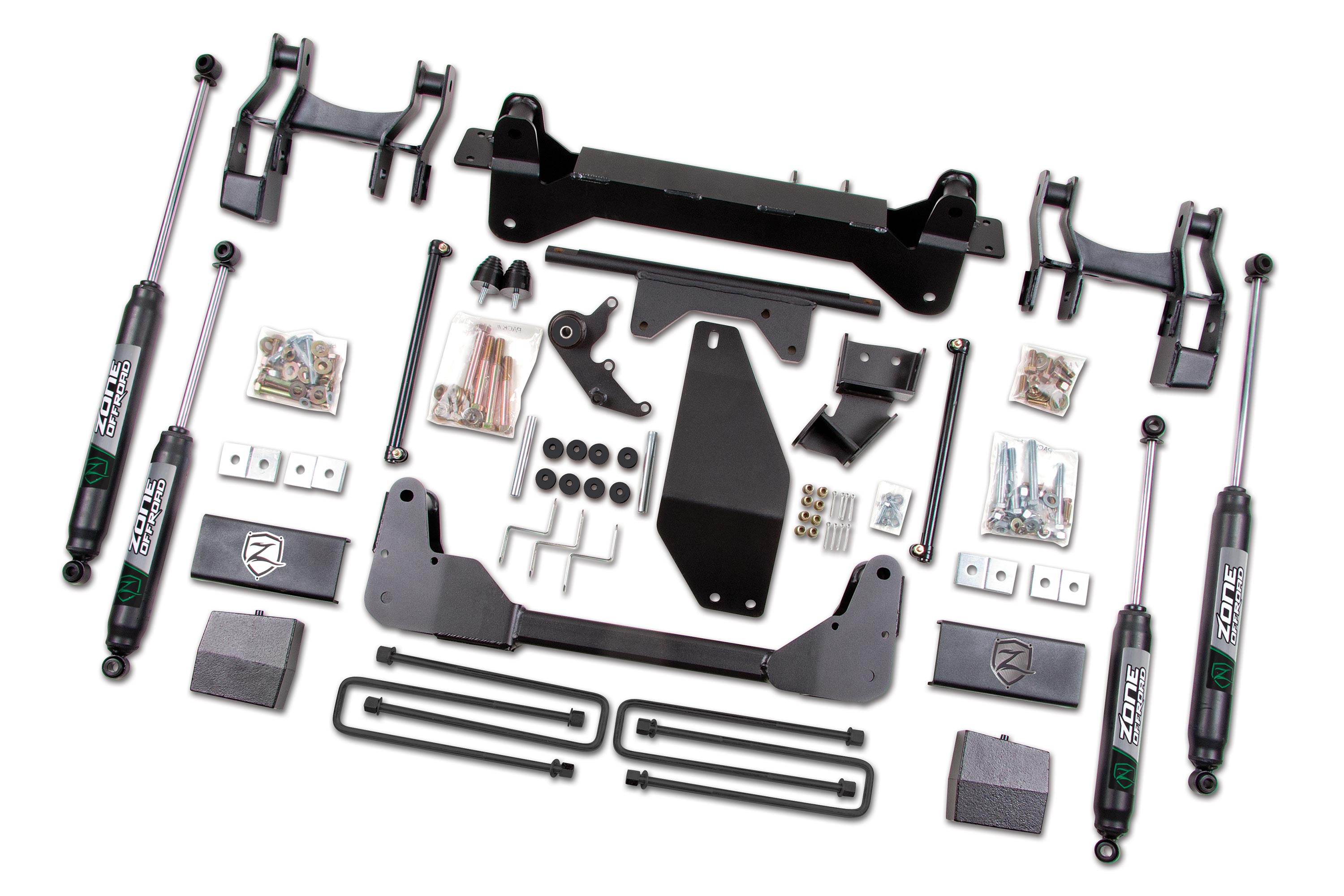

In The Box:

All Necessary Mounting / Installation Hardware
Differential Drop Brackets
Frame Crossmembers
Rear Lift Block & U-Bolt Kit
Skid Plate
Tie Rod End Adjuster
Torsion Bar Crossmember Drop Brackets

Kit Components:

ZONC2640 1988-1998 Chevy/GMC1500 6 Inch Front Box (1of3) 1 711745597235
ZONC2641 1988-1998 Chevy/GMC1500 6 Inch Front Box (2of3) 1 711745597242
ZONC2642 1988-1998 Chevy/GMC1500 6 Inch Front Box (3of3) 1 711745597259
ZONC2649 1988-1998 Chevy/GMC 1500 5.0 Inch Rear Box Kit 1 711745597297

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1988-1998 Chevrolet K2500

1988-1998 GMC K2500

1988-1998 Chevrolet K1500

1988-1998 GMC K1500

1992-1998 Chevrolet K1500 Suburban

1992-1997 GMC Yukon

1995-1998 Chevrolet Tahoe

Installation

Installation Instructions

bba94c49854e175e1972a164b22e4b3cfb14739b_C2640_0.pdf (10.82 MB)

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156360114

Availability: Available

Universal: No

Drive: 4WD

Max Tire: 35 x 12.5

Shocks Included: No

Lift Height

6.0 Inch

Fuel Type

Gas/Diesel
