8 Inch Lift Kit Ford Excursion 00-05 4WD BDS Suspension

8 Inch Lift Kit Ford Excursion 00-05 4WD Fox 2.0 Performance

SKU

BDS304FS-BLDV

List price

$2,654.50

Price

$2,654.50

Description

Take your 2000-2005 Ford Excursion 4WD to the next level with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes replacement Glide-Ride full leaf spring pack, u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Front Lift Method: Leaf Spring
Rear Lift Method: Leaf Spring
Shocks Included: Yes
Front Lift Height: 8 inch
Rear Lift Height: 8 inch

Models with rear CV driveshaft may experience drive line vibration.
Front and rear driveshaft modification will be required.
Due to OE variances, you may need to change the rear block to level the truck.
003202, 003402, 003602, 003609, 003802 & 003809 come with rubber bushings installed.

Easy, 100 percent Bolt-on installation
Glideride leaf springs to provide full lift height and increased capacity
Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
Cast steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

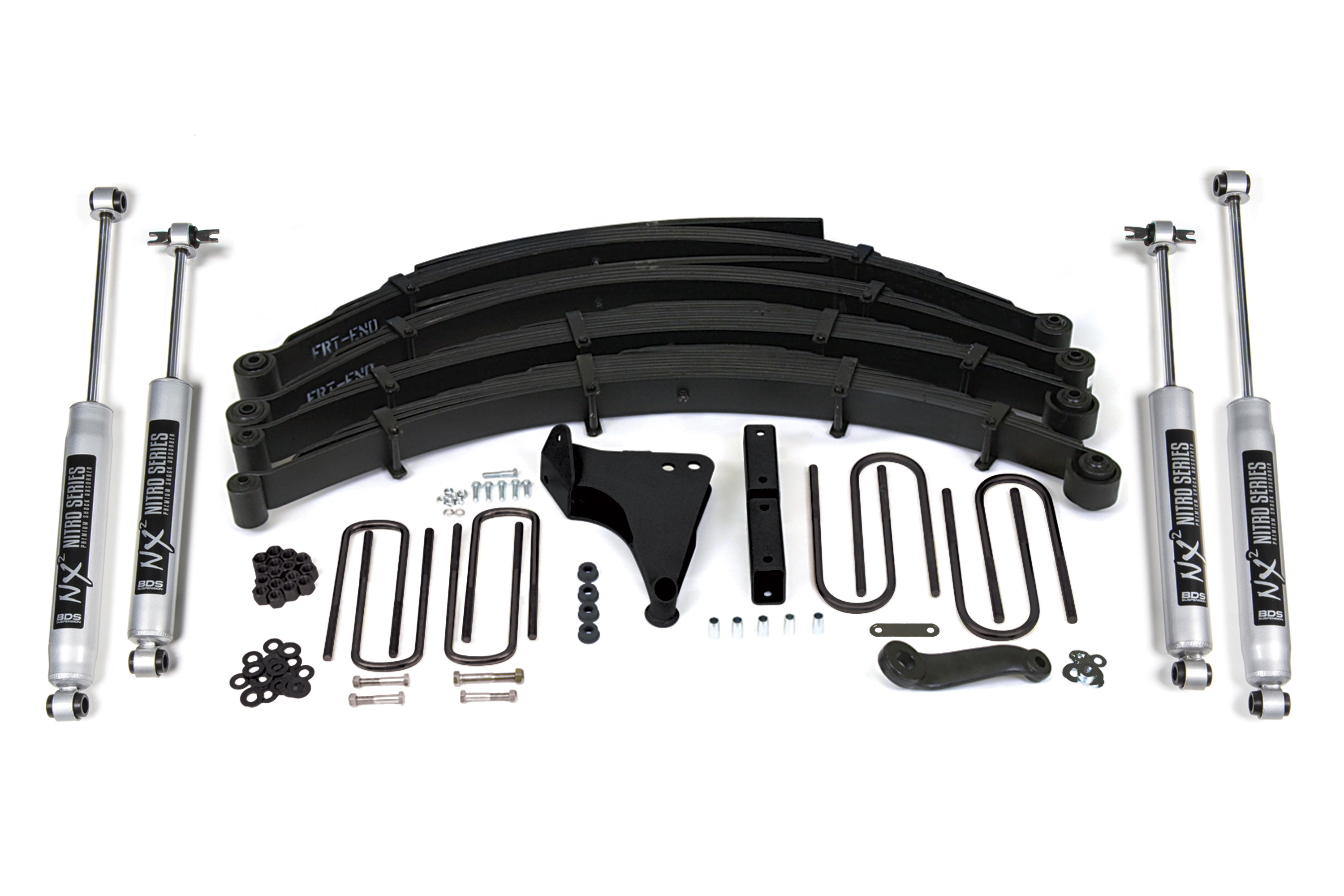

Kit Components:

Includes two BDS003602, Ford F250/350 6 Inch Front Spring, UPC Code 658848611362
Includes two BDS003809, Ford F250/350 8in Rear Spring, UPC Code 658848611423
Includes one BDS013006, 00-01 Ford F250/350 6&8in Front Box Kit, UPC Code 658848612963
Includes one BDS013009, Ford F250/350 6&8in Rear Box Kit, UPC Code 658848612987
Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
Includes two FOX98224762, Fox 2.0 Shock 33.85 x 20.75 x 2- BP8/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2000-2005 Ford Excursion Limited

2000-2005 Ford Excursion XLT

2003-2005 Ford Excursion Eddie Bauer

2004-2005 Ford Excursion XLS

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416416008

Availability: Available

Universal: No

Drive: 4WD

Shocks Included: Yes

Lift Height

8.0 Inch
