7 Inch Lift Kit Toyota Tundra 16-21 2/4WD BDS Suspension

7 Inch Lift Kit Toyota Tundra 16-21 2/4WD NX2 Nitro

SKU

BDS818H-BLDV

List price

$2,195.60

Price

$2,195.60

Description

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra trucks with 7 Inch lift kit suspension system. Get the Tire clearance and attitude you Inch're looking for with the 7 Inch Lift Kit Suspension System for your Toyota Tundra.

This kit takes advantage of BDS Inch's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

High Clearance Crossmembers

These specially designed 1/4 Inch thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components.

Heavy Duty Steering Knuckles

The steering knuckles are critical to setting your lifted truck up right. While taller for the additional lift height, these arms dwarf the factory units to allow additional strength with ductile iron castings, CNC- machined for a precision fit. The steering tie rod mount is relocated to mimic original steering geometry for ESC system compatibility.

Front Lift Method: Cross-Member
Rear Lift Method: Blocks
Shocks Included: Yes
Front Lift Height: 7 Inch
Rear Lift Height: 4 Inch

Requires frame bracket modification and welding.
No strut dissassembly required.
Stock 18 Inch wheels can not be installed. factory 20 Inch wheels with more than 6.25 Inch backspacing can not be installed.
Models with two piece rear drive line would require rear drive shaft modification.
Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
Will NOT work on TRD Pro (Bilstein anf Fox Piggback Strut) models.

High clearance design maximizes ground clearance.
Robust steering knuckles maintain ESC system compliance.
Full width belly skidplate for added protection.
Allows fitment of up to 37 Inch Tires with 7 Inch systems.
Choice of FOX 2.0 Performance or NX2 Nitro shocks for improved capability.

Rear Shock Option NX2 Nitro Series

Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/6.25

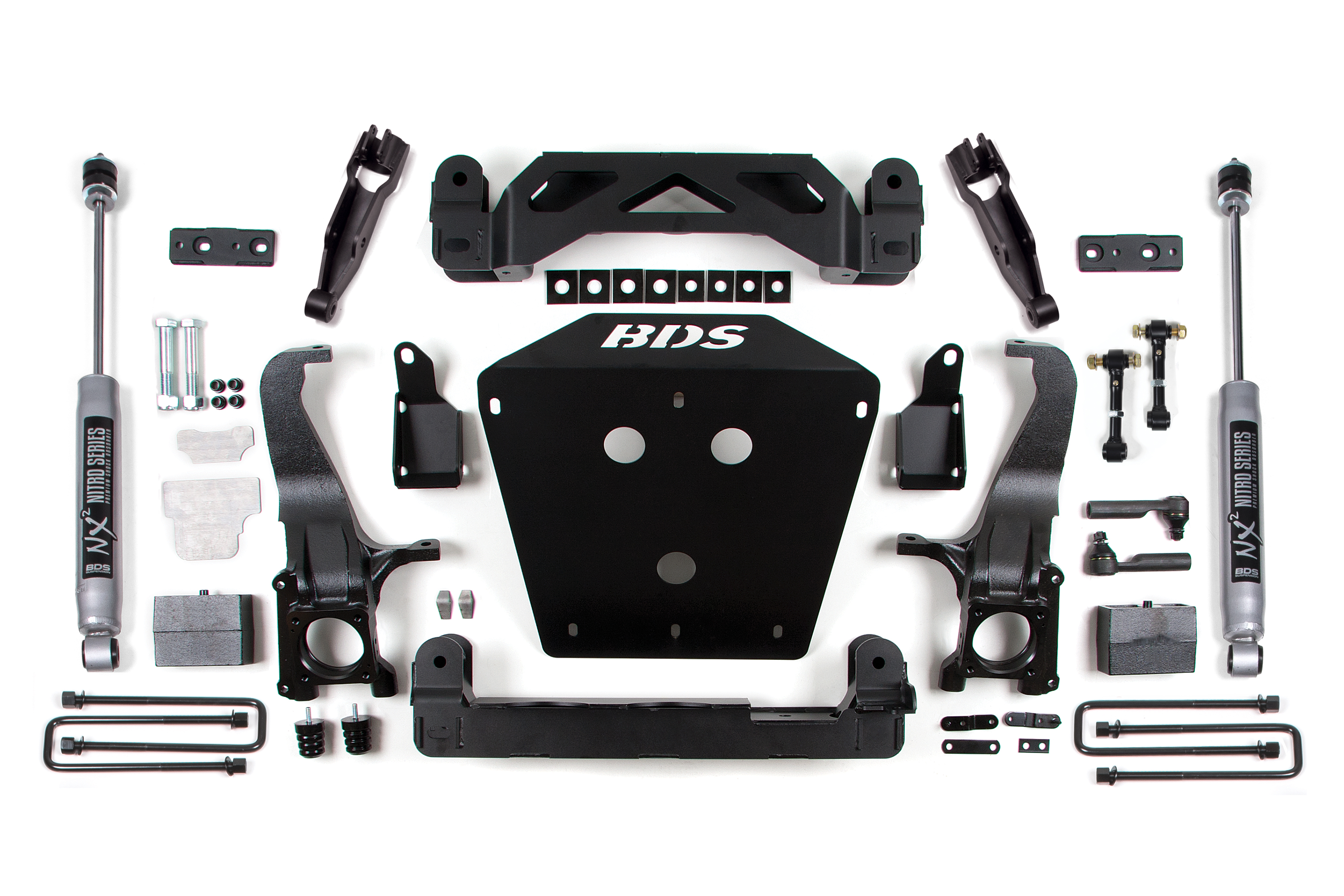

Kit Components:

Includes one BDS018409, 2007-2021 Toyota Tundra 4 Inch Rear Block Kit, UPC Code 658848614486
Includes one BDS028701, 2007-2021 Toyota Tundra Box Kit (2of5), UPC Code 658848616275
Includes one BDS028702, 2007-2021 Toyota Tundra Box Kit (3of5), UPC Code 658848616282
Includes one BDS028703, 2007-2021 Toyota Tundra Box Kit (4of5), UPC Code 658848616299
Includes one BDS028704, 2007-2021 Toyota Tundra Box Kit (5of5), UPC Code 658848616305
Includes one BDS028710, 2016-2021 Toyota Tundra Box Kit (1of5), UPC Code 658848616312
Includes two BDS85952, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745610057

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2016-2021 Toyota Tundra 1794 Edition

2016-2021 Toyota Tundra Limited

2016-2021 Toyota Tundra Platinum

2016-2021 Toyota Tundra SR

2016-2021 Toyota Tundra SR5

2016-2017 Toyota Tundra TRD Pro

2019-2021 Toyota Tundra TRD Pro

2021-2021 Toyota Tundra Nightshade

2021-2021 Toyota Tundra Trail

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416421637

Availability: Available

Universal: No

Drive: 4WD

Shocks Included: Yes

Lift Height

7.0 Inch
