Description
Increase the performance and capability of the 2021-2025 Ford F150 trucks with 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road.
This kit includes everything necessary to set your F150 truck up right with clearance for up to 37 inch tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles.
These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
FOX 2.0 Struts
These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate.
They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat-treated alloy shaft.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features and Benefits
- FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
Recommended Tires and Wheels
- (Trimming may be required)
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Rear Lift Option
- 4 Inch Block Kit
- Level to tail high appearance

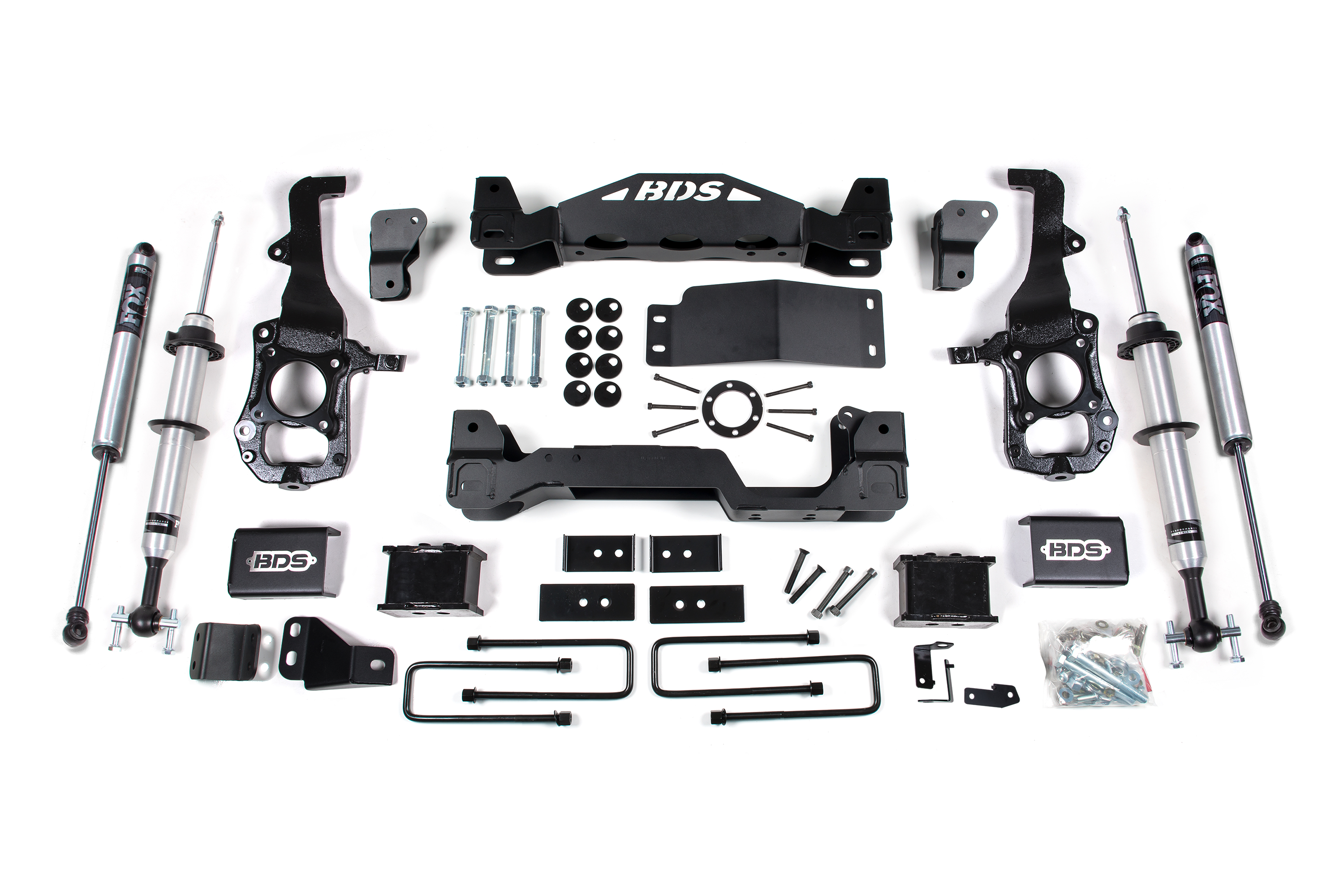

Kit Components:
- Includes one BDS013538, 2021-2025 Ford F150 5 inch Rear Box Kit, UPC Code 658848613663
- Includes one BDS023652, 2021-2025 Ford F150 Front Box Kit (1of2), UPC Code 658848615964
- Includes one BDS023653, 2021-2025 Ford F150 Front Box Kit (2of2), UPC Code 658848615971
- Includes one BDS023670, 2021-2025 Ford F150 Knuckle Box Kit - DS, UPC Code 658848616053
- Includes one BDS023671, 2021-2025 Ford F150 Knuckle Box Kit - PS, UPC Code 658848616060
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
- Includes two FOX98662001, BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, Internal Floating Piston, 6.1 inch, 4 and 6 inch Lift
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
Includes one BDS013538, 2021-2025 Ford F150 5 inch Rear Box Kit, UPC Code 658848613663
Includes one BDS023652, 2021-2025 Ford F150 Front Box Kit (1of2), UPC Code 658848615964
Includes one BDS023653, 2021-2025 Ford F150 Front Box Kit (2of2), UPC Code 658848615971
Includes one BDS023670, 2021-2025 Ford F150 Knuckle Box Kit - DS, UPC Code 658848616053
Includes one BDS023671, 2021-2025 Ford F150 Knuckle Box Kit - PS, UPC Code 658848616060
Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
