Description
Take your 2014-2018 RAM 2500 gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 5.5 inch
- Rear Lift Height: 4.5 inch
- 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
- Heavy duty radius arm drop brackets maintain proper suspension geometry
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5

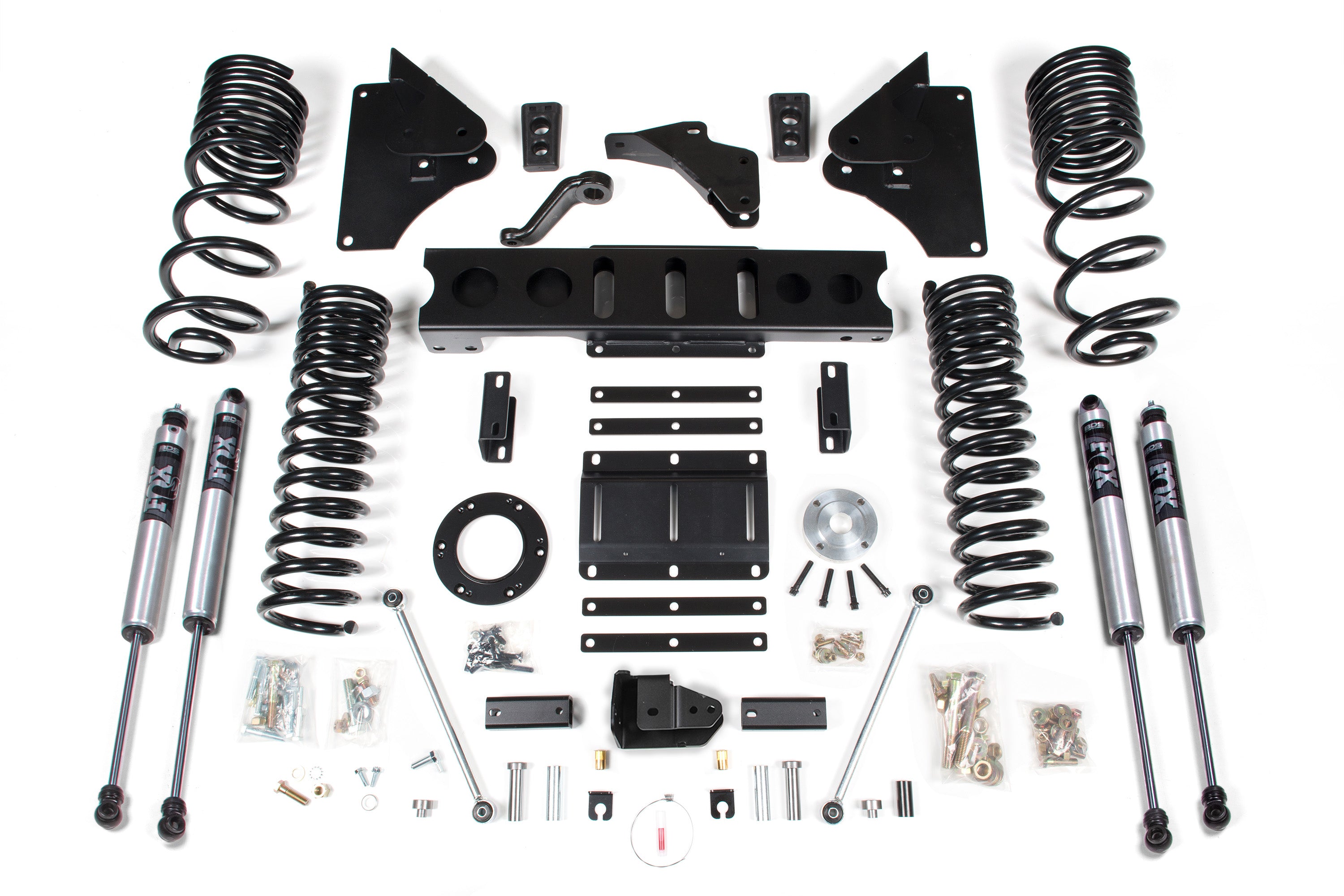

Kit Components:
- Includes one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612475
- Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
- Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
- Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
- Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
- Includes two FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
Includes one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612475
Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
Includes two FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
