Description
BDS steps up the performance and capability of the 1987-1995 Jeep Wrangler YJ with a 5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

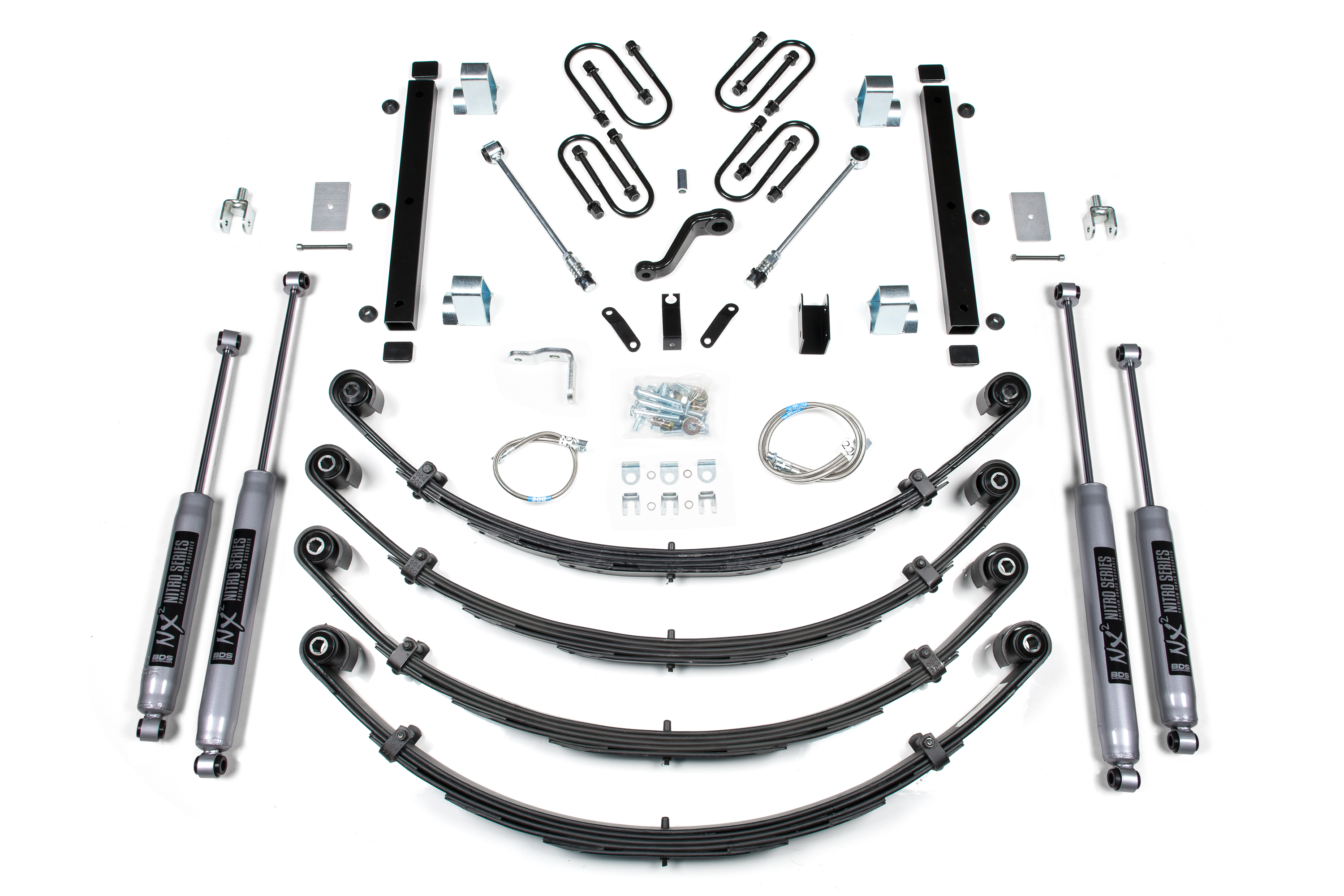

This 5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease the drive line angles. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
- Front Lift Method: Leaf Spring
- Rear Lift Method: Leaf Spring
- Shocks Included: Yes
- Front Lift Height: 5 inch
- Rear Lift Height: 5 inch
- May require a larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.
- A slip yoke eliminator and dual cardan style rear driveshaft is required.
- Extended shackles are recommended to clear the military wraps on the springs.
- Pitman arms will NOT fit YJ models equipped with manual steering.
- Glideride leaf springs to provide full lift height and increased capacity
- Front and rear track bar relocation brackets to center the axle
- Transfer case drop kit to ease the drive line angles
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Easy, 100 percent Bolt-on installation
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Kit Components:
- Includes four BDS004500, 87-95 Jeep YJ 5in Leaf Spring, UPC Code 658848611577
- Includes one BDS014501, 87-95 YJ 5-6 Inch Complete Box Kit, UPC Code 658848614240
- Includes one BDS124013, Jeep YJ Front Solid Anti-sway Bar Kit, UPC Code 711745604575
- Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
- Includes two FOX98224920, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Installation
Specs
Kit Components
Includes four BDS004500, 87-95 Jeep YJ 5in Leaf Spring, UPC Code 658848611577
Includes one BDS014501, 87-95 YJ 5-6in Complete Box Kit, UPC Code 658848614240
Includes one BDS124013, Jeep YJ Front Solid Anti-sway Bar Kit, UPC Code 711745604575
Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
Includes two FOX98224920, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
