4.5 Inch Lift Kit Jeep Wrangler TJ/LJ 97-06 Fox 2.0 Performance Shocks
4.5 Inch Lift Kit Jeep Wrangler TJ/LJ 97-06 Fox 2.0 Performance Shocks
SKU
BDS422FS-BLDV
List price
$2,530.50
Price
$2,530.50

BDS steps up the performance and capability of the 1997-2006 Jeep Wrangler TJ with a 4.5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

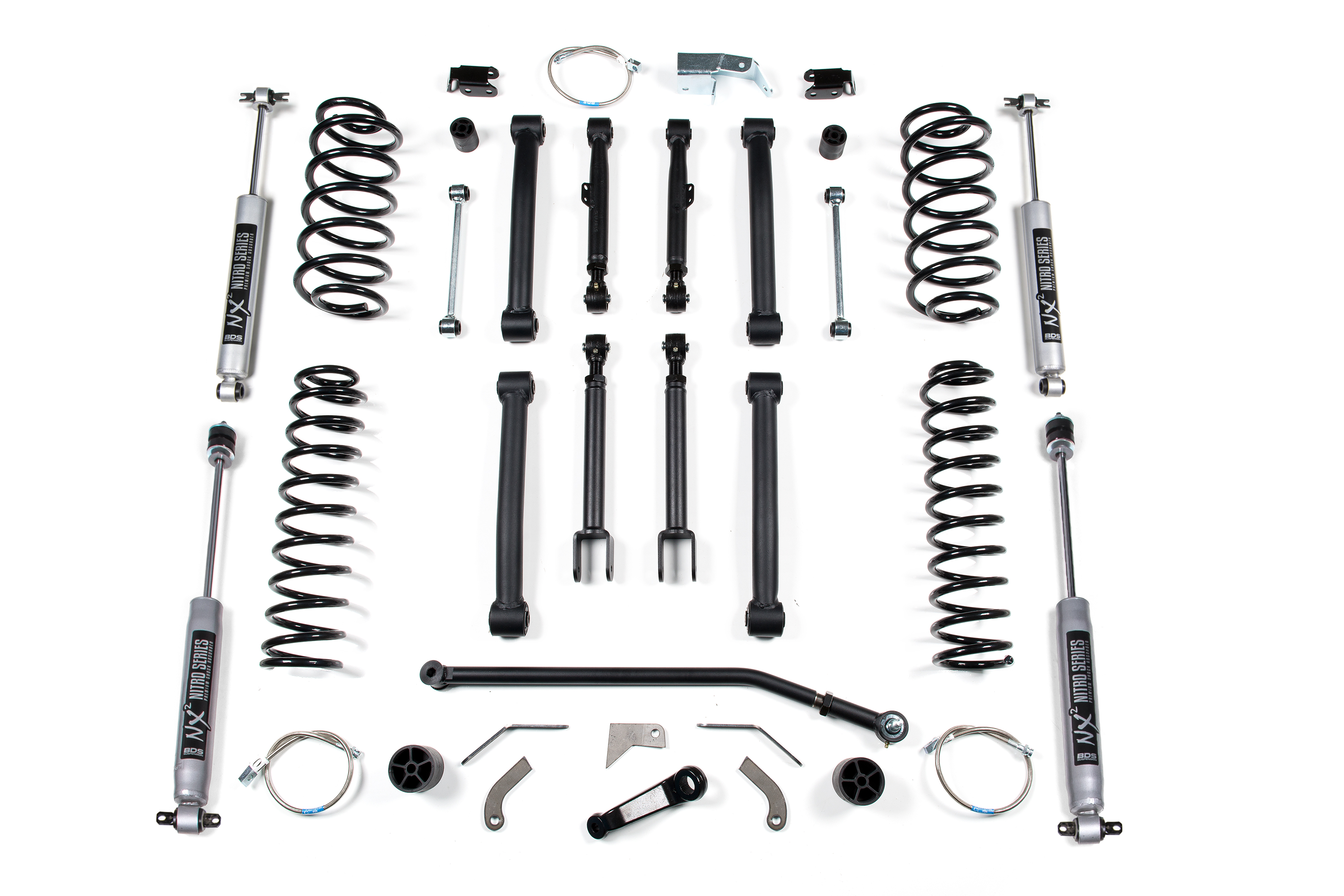

The lift kit includes front BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar that is utilized to recenter the front axle, bump stop extensions, stainless braided brake lines, sway bar quick disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, and heavy duty front upper adjustable and fixed length lower control arms.

The rear kit utilizes Glide-Ride coil springs for maximum travel, stainless braided brake line, rear track bar relocation bracket, BDS ultimate sway bar disconnects for the most possible articulation, and heavy duty front upper adjustable and fixed length lower control arms. Finish of the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.

This results in maximum reliability without premature coil bind.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 4.5 inch
  • Rear Lift Height: 4.5 inch
  1. A slip yoke eliminator and a CV style rear driveshaft are required for this kit.
  2. Some welding required.
  3. Rubicon models may require OEM skid plate modification.
  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • New control arms to properly control the front and rear axle positions
  • Rear track bar bracket repositions rear axle under vehicle
  • Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
  • Allows clearance for 33 inch Tires

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Kit Components:

  • Includes one BDS014457, 1997-2006 Jeep TJ 4.5in Box Kit, UPC Code 658848614196
  • Includes one BDS034451, 1997-2004 Jeep Wrangler (TJ) 4.5in Front Coil, UPC Code 658848616909
  • Includes one BDS034459, 1997-2004 Jeep Wrangler (TJ) 4.5in Rear Coil, UPC Code 658848616930
  • Includes two BDS124327, TJ/XJ Fixed LCA Kit w/rubber bushings, UPC Code 711745605084
  • Includes one BDS124349, TJ Adj. Rear UCA Kit, UPC Code 711745607484
  • Includes two FOX98224967, Fox 2.0 Shock 26.15 x 16.05 x 2- S50/BP7
  • Includes two FOX98224976, Fox 2.0 Shock 23.65 x 15.05 x 2-BP18/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]
Vehicle Fitment
1997-2004 Jeep Wrangler Sahara
1997-2006 Jeep Wrangler SE
1997-2006 Jeep Wrangler Sport
2002-2006 Jeep Wrangler X
2003-2006 Jeep Wrangler Rubicon
2004-2006 Jeep Wrangler Unlimited
2005-2006 Jeep Wrangler Unlimited Rubicon
2006-2006 Jeep Wrangler 65th Anniversary Edition
Specs
Country of Origin: USA
Sold As: Kit
UPC: 840416417425
Availability: Available
Universal: No
Shocks Included: Yes
Lift Height
4.5 Inch
Category
Suspension / Steering / Brakes
Suspension
Lift Kits
Brand
BDS Suspension
Vehicle Type
Jeep

Includes one BDS014457, 1997-2006 Jeep TJ 4.5in Box Kit, UPC Code 658848614196
Includes one BDS034451, 1997-2004 Jeep Wrangler (TJ) 4.5in Front Coil, UPC Code 658848616909
Includes one BDS034459, 1997-2004 Jeep Wrangler (TJ) 4.5in Rear Coil, UPC Code 658848616930
Includes two BDS124327, TJ/XJ Fixed LCA Kit w/rubber bushings, UPC Code 711745605084
Includes one BDS124349, TJ Adj. Rear UCA Kit, UPC Code 711745607484
Includes two FOX98224967, Fox 2.0 Shock 26.15 x 16.05 x 2- S50/BP7
Includes two FOX98224976, Fox 2.0 Shock 23.65 x 15.05 x 2-BP18/EB1
