4 Inch Lift Kit w/ 4-Link Ford F350 Super Duty DRW 17-19 4WD Gas BDS Suspension

4 Inch Lift Kit w/ 4-Link Ford F350 Super Duty DRW 17-19 4WD Gas Fox 2.0 Performance Shocks

SKU

BDS1578FS-BLDV

List price

$2,633.55

Price

$2,633.55

Description

Upgrade your dual rear wheel inchDRW inch 2017-2019 Ford F350 Super Duty gas powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Front Lift Method: Coil Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 3 inch

Minor trimming may be necessary for clearance of 37x12.50 Tires on certain wheel setups
Installation requires a torque wrench capable of 405 ft-lbs

Easy, 100 percent Bolt-on installation
Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
Fabricated steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

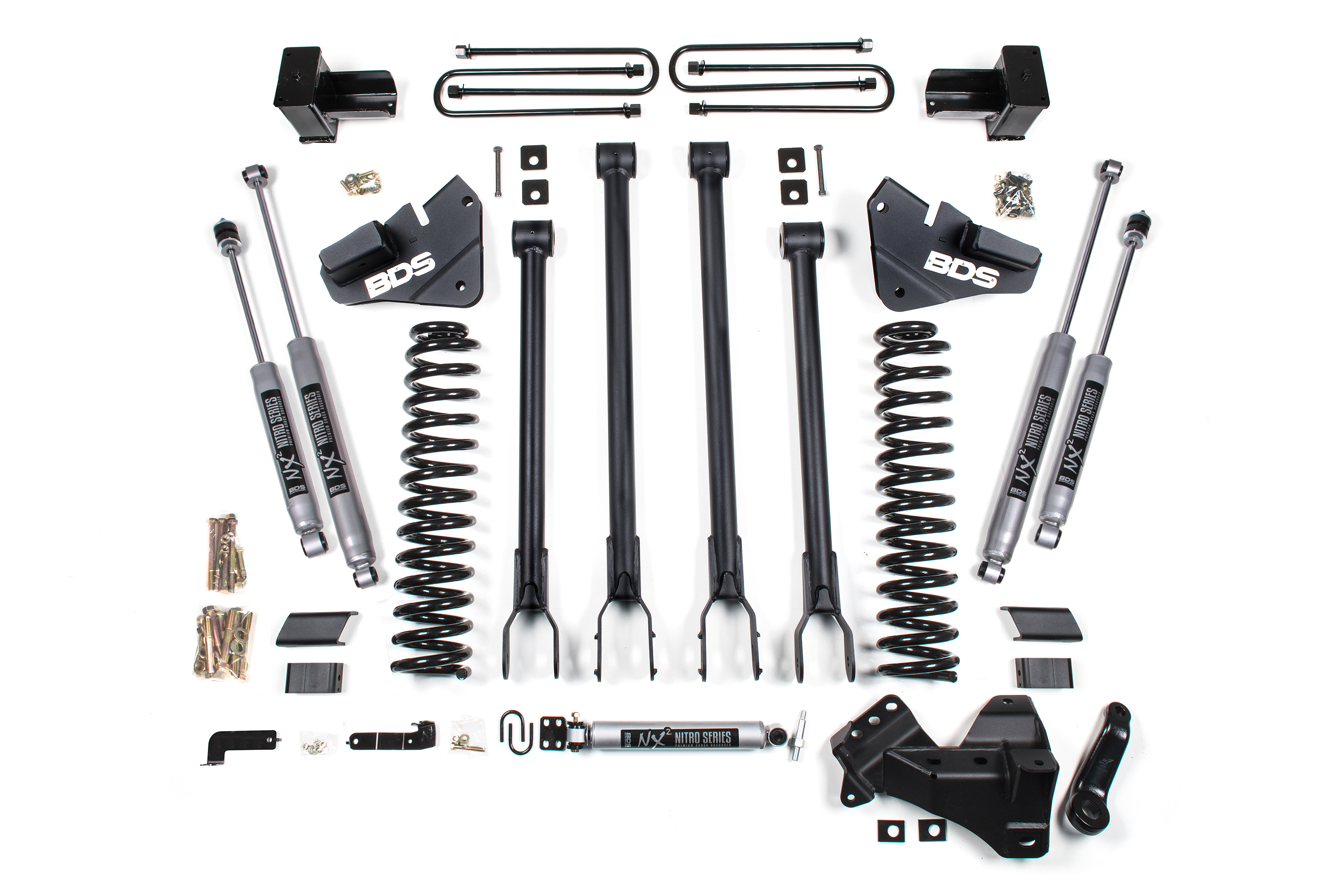

Kit Components:

Includes one BDS013423, 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2, UPC Code 658848613496
Includes one BDS013526, 2017-2020 F350 Dually 5 inch Block Kit, UPC Code 658848613632
Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2017-2019 Ford F-350 Super Duty King Ranch

2017-2019 Ford F-350 Super Duty Lariat

2017-2019 Ford F-350 Super Duty Platinum

2017-2019 Ford F-350 Super Duty XL

2017-2019 Ford F-350 Super Duty XLT

2018-2019 Ford F-350 Super Duty Limited

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416403558

Availability: Available

Universal: No

Drive: 4WD

Shocks Included: Yes

Lift Height

4.0 Inch

Fuel Type

Gas
