4 Inch Lift Kit Ford F250 TTB 87-96 4WD BDS Suspension

4 Inch Lift Kit Ford F250 TTB 87-96 4WD Fox 2.0 Performance Shocks

SKU

BDS306FS-BLDV

List price

$2,000.60

Price

$2,000.60

Description

Update the style of your 1980-1996 Ford F250 TTB 4WD truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, axle pivot drop brackets, forged drop pitman arm for steering correction, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Front Lift Method: Leaf Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 3 inch

This system is designed for Twin-Traction Beam style suspension only. The kit will not work on front solid axle applications.
In some cases a pair of alignment cam BDS129102 may be required to achieve proper caster and camber alignment specifications.

Easy, 100 percent Bolt-on installation
Glideride leaf springs to provide full lift height and increased capacity
Pitman arm maintains proper steering angles for improved handling
Cast steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

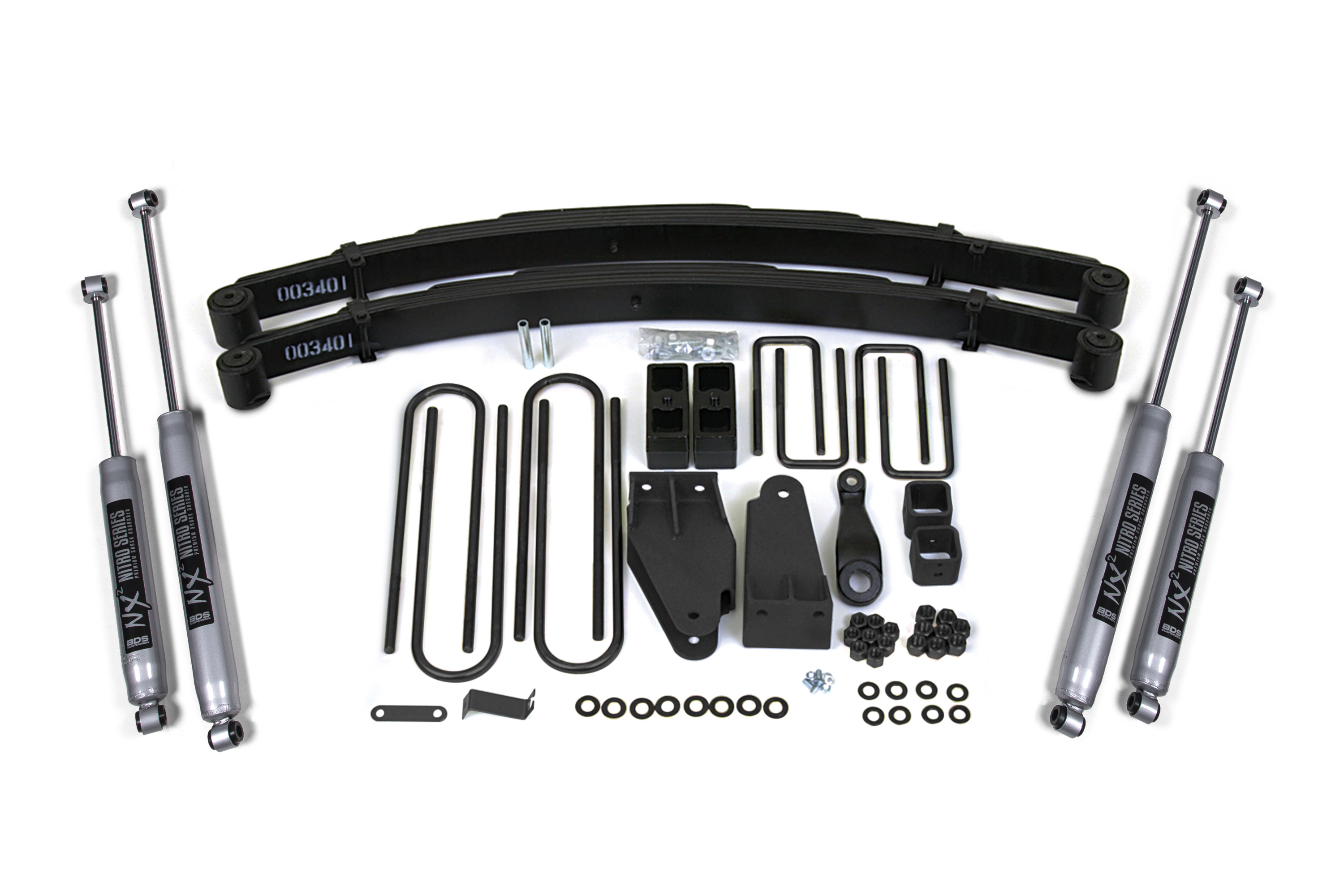

Kit Components:

Includes two BDS003401, 80-96 Ford F250 Gas 4 Inch Front Spring, UPC Code 658848611331
Includes one BDS013309, 80-96 Ford F250 3in Rear Box Kit, UPC Code 658848613274
Includes one BDS013401, 80-96 Ford F250 4 Inch Front Box Kit, UPC Code 658848613342
Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1987-1992 Ford F-250 Custom

1987-1996 Ford F-250 XL

1987-1992 Ford F-250 XLT Lariat

1993-1996 Ford F-250 XLT

1995-1996 Ford F-250 Eddie Bauer

1995-1996 Ford F-250 Special

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416409055

Availability: Available

Universal: No

Drive: 4WD

Shocks Included: Yes

Lift Height

4.0 Inch
