Description
Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Features & Benefits
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-leaf provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
- (Trimming may be required)
- 35 x 12.5 with 15 x 8 and 3.5 in. Backspace
Rear Lift Option
- 4 Inch Block Kit
- Included in the base system.
- Made of cast iron for high strength.
- Designed to provide correct pinion angles.
- 4 Inch Block Kit with Add-A-Leaf
- Help freshen up old worn-out factory leaf springs.
- Provides an additional 1 inch of lift.
- Includes new center pins.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Front Lift Method : Leaf Spring
Rear Lift Method : Blocks
Shocks Included : Yes
Front Lift Height : 4 inch
Rear Lift Height : 4 inch

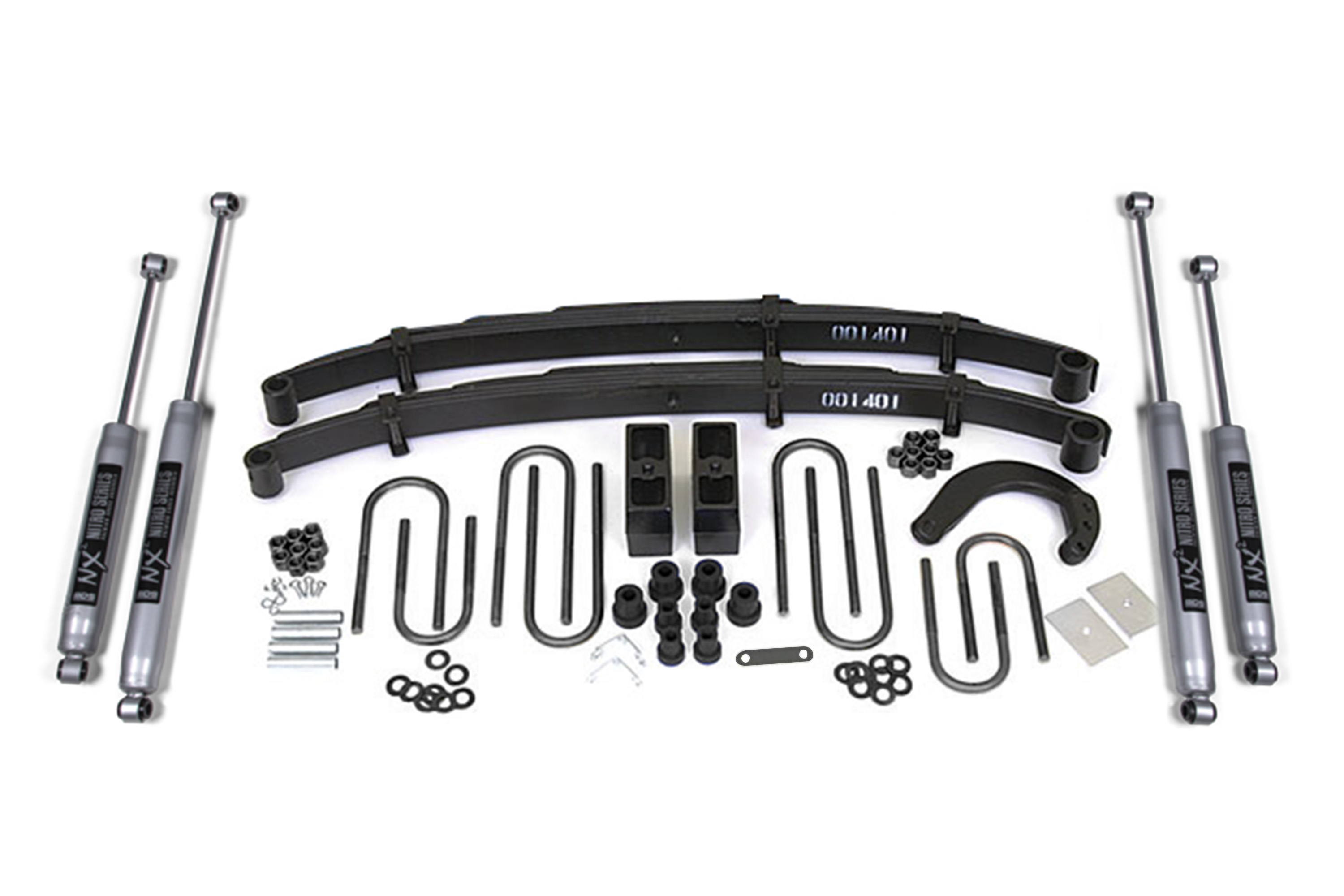

Kit Components:
- Includes two BDS001401, 73-91 GM 4 Inch Front Spring, UPC Code 658848611164
- Includes one BDS011001, 77-87 GM Front Box Kit (3.00 dia. front), UPC Code 658848611621
- Includes one BDS011209, GM 1/2 ton 2 Inch Rear Box Kit, UPC Code 658848611690
- Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064 Includes one BDS119157, GM/Dodge Rear Long Add-a-leaf, UPC Code 658848618774
- Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
- Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164
Includes one BDS011001, 77-87 GM Front Box Kit (3.00 dia. front), UPC Code 658848611621
Includes one BDS011209, GM 1/2 ton 2 Inch Rear Box Kit, UPC Code 658848611690
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes one BDS119157, GM/Dodge Rear Long Add-a-leaf, UPC Code 658848618774
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
