4 Inch Lift Kit Block Kit With Add A Leaf Chevy/GMC 1/2 Ton Truck/SUV 73-76 4WD BDS Suspension

4 Inch Lift Kit Block Kit With Add A Leaf Chevy/GMC 1/2 Ton Truck/SUV 73-76 4WD With NX2 Shocks

SKU

BDS111H-BLDV

List price

$900.50

Price

$900.50

Description

Update the style of your 1973-1976 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

Easy, 100 percent Bolt-on installation
Glideride leaf springs to provide full lift height and increased capacity
New steering arm maintains proper steering angles for improved handling
Cast steel blocks and add-a-leaf provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)
35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Rear Lift Option
4 Inch Block Kit with Add-A-Leaf

Help freshen up old worn-out factory leaf springs.
Provides an additional 1 inch of lift.
Includes new center pins.

Shock Option

NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

Details:

Front Lift Method: Leaf Spring
Rear Lift Method: Blocks
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 4 inch

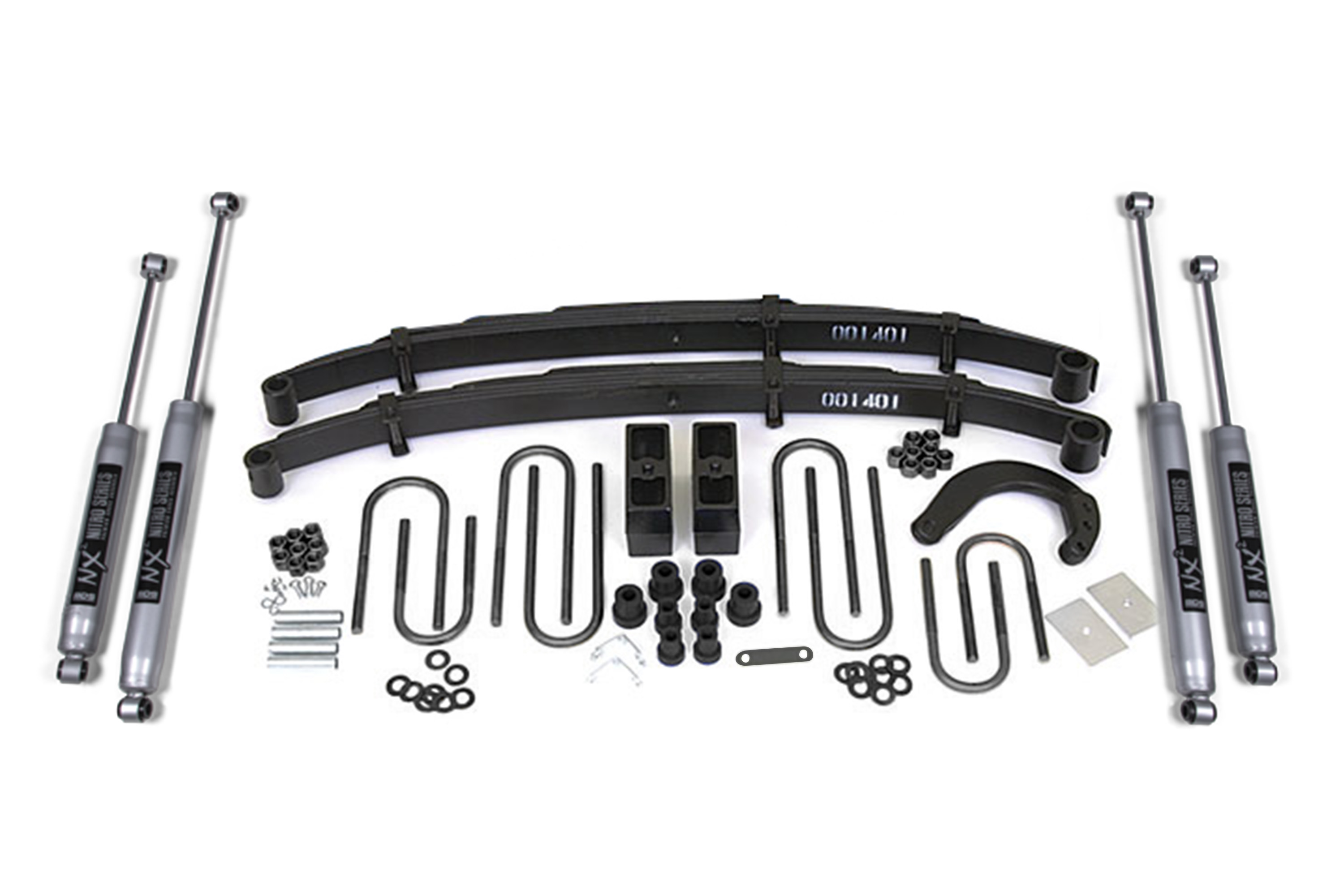

Kit Components

Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164
Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
Includes one BDS011209, GM 1/2 ton 2 Inch Rear Box Kit, UPC Code 658848611690
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes one BDS119157, GM/Dodge Rear Long Add-a-leaf, UPC Code 658848618774
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1973-1976 GMC Jimmy

1973-1974 Chevrolet K20 Pickup

1975-1976 Chevrolet K5 Blazer Cheyenne

1975-1975 Chevrolet K5 Blazer Custom Deluxe

1975-1976 GMC Jimmy High Sierra

1975-1976 GMC Jimmy Sierra Classic

1975-1976 GMC Jimmy Sierra Grande

1976-1976 Chevrolet K5 Blazer

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416409680

Availability: Available

Universal: No

Drive: 4WD

Shocks Included: Yes

Lift Height

4.0 Inch
