3 Inch Lift Kit Jeep Wrangler JK 07-11 4-Door Sway Bar Disconnect NX2 Nitro Shocks
3 Inch Lift Kit Jeep Wrangler JK 07-11 4-Door Sway Bar Disconnect NX2 Nitro Shocks
SKU
BDS1411H-BLDV
List price
$783.65
Price
$783.65

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 3 inch
  • Rear Lift Height: 3 inch
  1. This kit is FMVSS No.126 Compliant
  2. This kit is right hand drive compatible.
  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • Rear track bar bracket repositions rear axle under vehicle
  • Lower cam locks to correct caster for alignment
  • Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
  • Allows clearance for 35 inch Tires

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Sway Bar Link Option Disconnects

  • Gain 30 percent more axle articulationl by disconnecting your front sway bar
  • Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
  • Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
  • Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

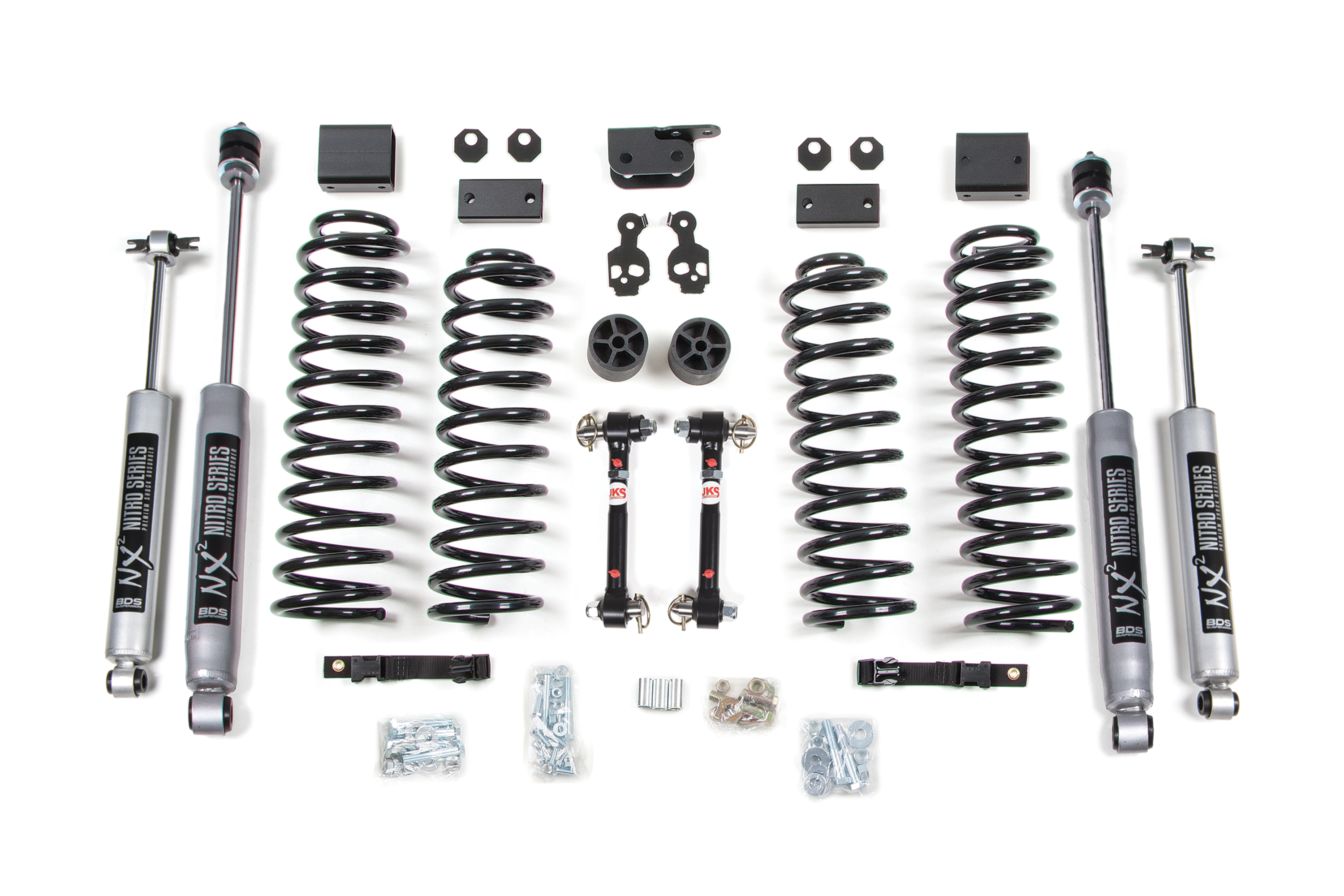

Kit Components:

  • Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
  • Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs, UPC Code 658848616770
  • Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs, UPC Code 658848616794
  • Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
  • Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]
Vehicle Fitment
2007-2011 Jeep Wrangler Rubicon
2007-2011 Jeep Wrangler Sahara
2007-2011 Jeep Wrangler Unlimited Rubicon
2007-2011 Jeep Wrangler Unlimited Sahara
2007-2010 Jeep Wrangler Unlimited X
2007-2010 Jeep Wrangler X
2010-2011 Jeep Wrangler Sport
2010-2011 Jeep Wrangler Unlimited Sport
2011-2011 Jeep Wrangler 70th Anniversary
2011-2011 Jeep Wrangler Unlimited 70th Anniversary
Specs
Country of Origin: USA
Sold As: Kit
UPC: 840416410419
Availability: Available
Universal: No
Shocks Included: Yes
Doors: 4 Door
Lift Height
3.0 Inch
Category
Suspension / Steering / Brakes
Suspension
Lift Kits
Brand
BDS Suspension
Vehicle Type
Jeep

Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4in 4 Door/3in Front Coil Springs, UPC Code 658848616770
Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4in 4 Door/3in Rear Coil Springs, UPC Code 658848616794
Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040
