Description
Improve the style and handling of your 1993-1998 Jeep Grand Cherokee ZJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.
Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and front track bar bracket to properly center the axle. In the rear the kit utilizes matching Glide-Ride coil springs to add height without creating a harsh ride to level out the Jeep and rear track bar bracket.
These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 3 inch
- Vehicles equipped with V8 may not achieve stated height.
- Measure your front driveshaft - over 24-1/2 inch no modifications required, 20 inch to 24 inch you may need to change over to a spicer type joint if vibration occurs. It your driveshaft is less than 20 inch, then a Spicer type joint is required and vibration may persist.
- ProRide coil springs offer improved ride quality and more articulation
- Extended sway bar link for improved offroad flex
- Front and Rear track bar bracket repositions rear axle under vehicle
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
- Allows clearance for 31 inchTires
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

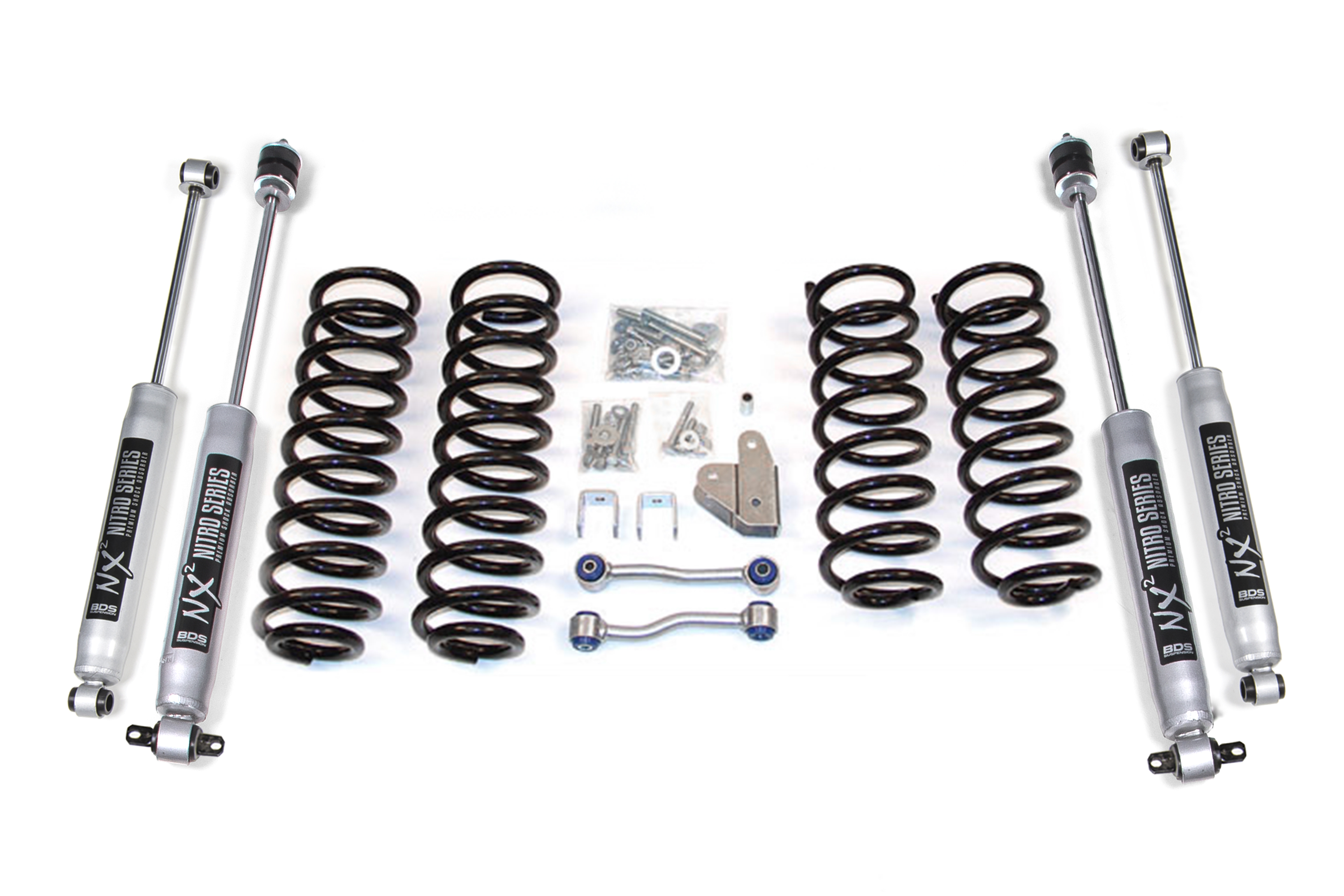

Kit Components:
- Includes one BDS034208, Jeep ZJ 2 Inch Rear Coil Kit, UPC Code 658848616695
- Includes one BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in, UPC Code 658848616749
- Includes one BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid, UPC Code 711745604957
- Includes two FOX98224950, Fox 2.0 Shock 23.65 x 15.05 x 2- EB1/EB1
- Includes two FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
Includes one BDS034208, Jeep ZJ 2 Inch Rear Coil Kit, UPC Code 658848616695
Includes one BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in, UPC Code 658848616749
Includes one BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid, UPC Code 711745604957
Includes two FOX98224950, Fox 2.0 Shock 23.65 x 15.05 x 2- EB1/EB1
Includes two FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
