Description
BDS steps up the performance and capability of the Jeep Gladiator JT with a 3-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.

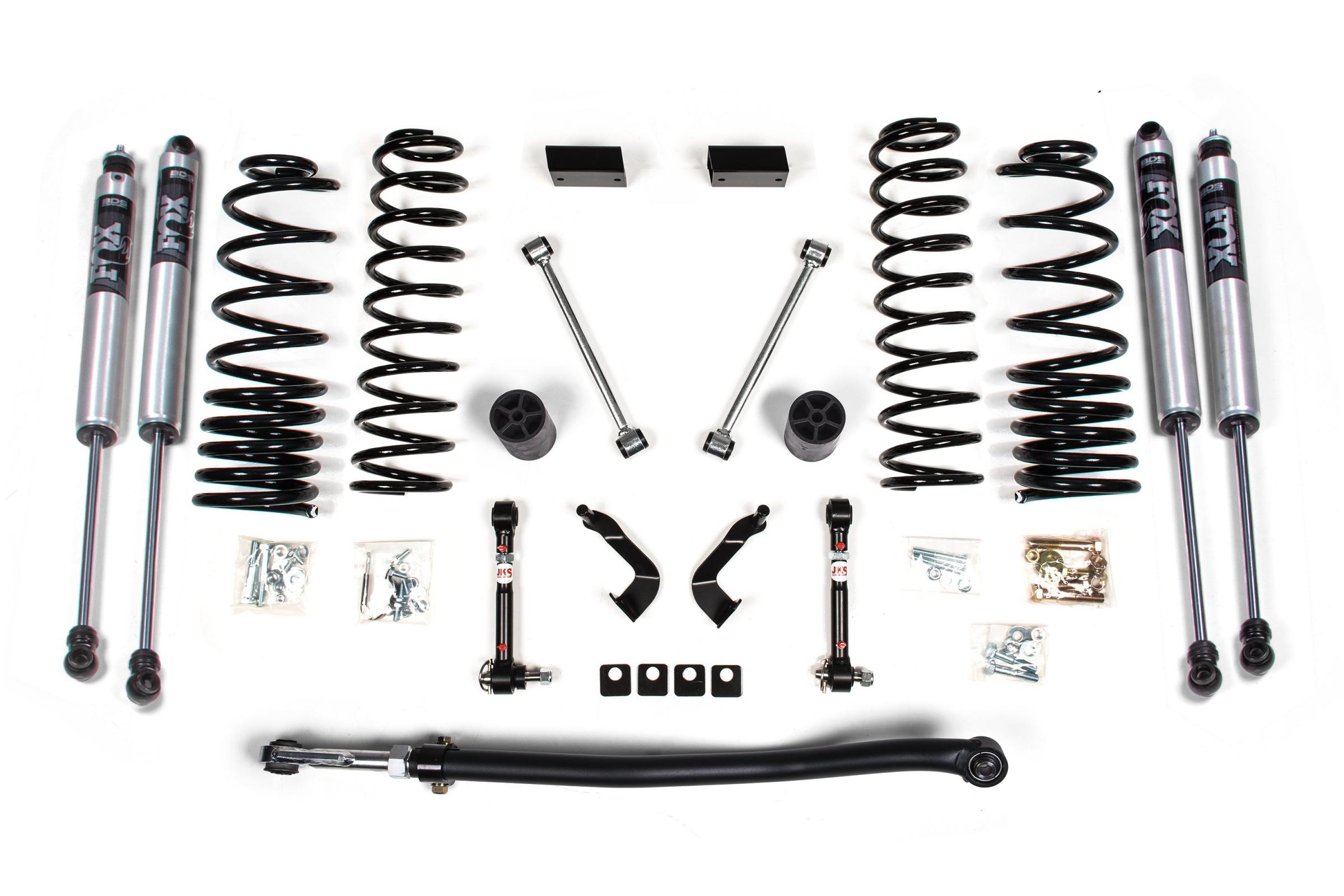

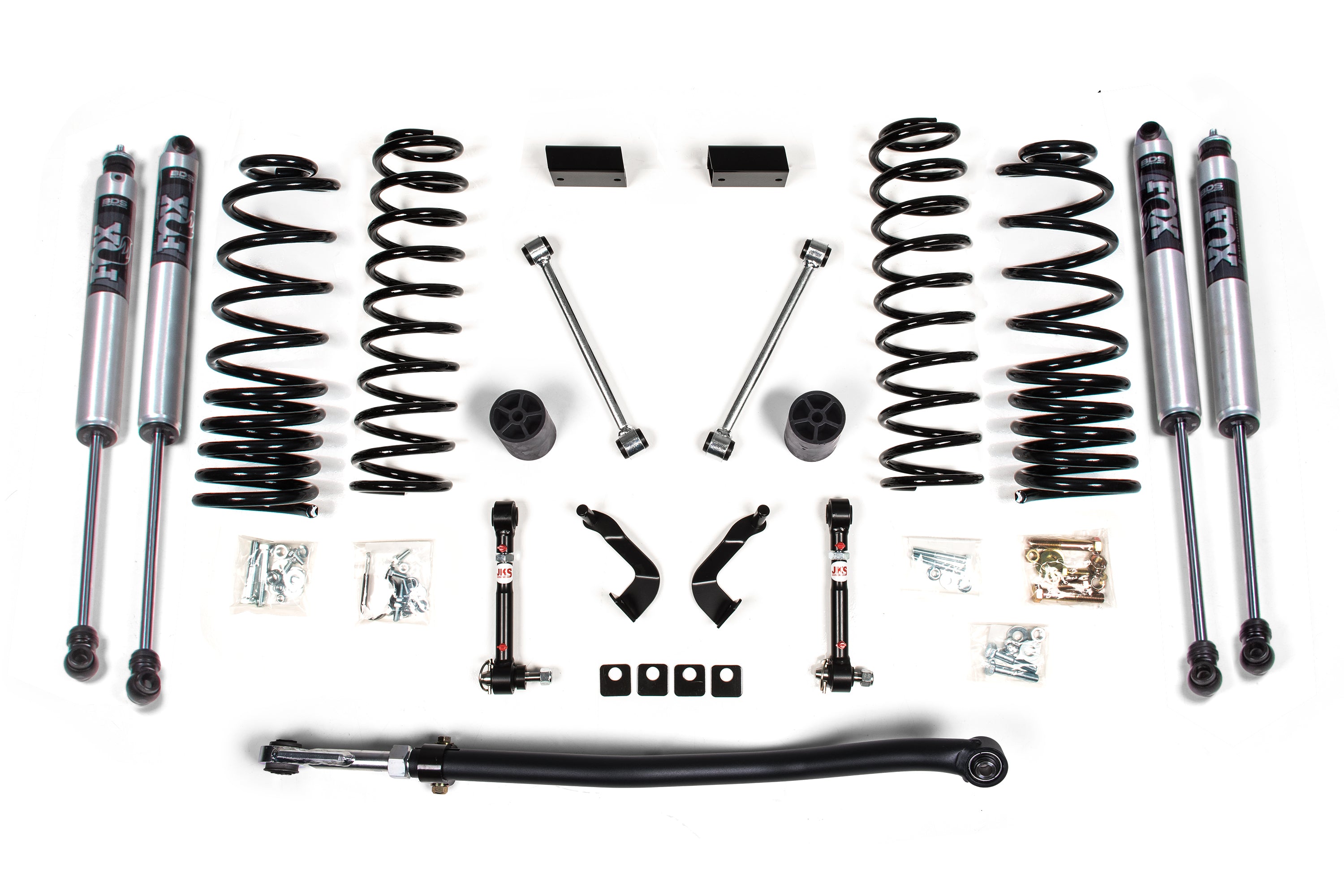

The lift kit includes front and rear BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar is utilized to recenter the front axle, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, rear sway bar links, and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 1.25 inch
- Does NOT work with Mojave models.
- Non-Rubicon comes from the factory at a lower ride height, which will net slightly more lift in final stance the same for all models
- Sport Model with aftermarket wheels may rub under articulation
- Rubicon with aftermarket wheels may rub under extreme articulation
- Doe not fit Diesel models.
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Front HD track bar to correction position the front axle and control lateral movement
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Kit Components:
- Includes one BDS014331, 2020-2024 Jeep Gladiator (JT) 3-3.5in Box Kit, UPC Code 658848614073
- Includes one BDS032159, 2020-2023 Jeep Gladiator (JT) 2-3 inch Rear Coil Spring Box Kit, UPC Code 658848616329
- Includes one BDS034440, 2019-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3-4 inch Front Coil Spring Box Kit, UPC Code 658848616893
- Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
- Includes two FOX98524177, 2018-2024 Jeep JL Front, PS, 2.0, Internal Floating Piston, 9.6 inch, 2-3 inch Lift, UPC Code 788000423745
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
Includes one BDS014331, 2020-2024 Jeep Gladiator (JT) 3-3.5in Box Kit, UPC Code 658848614073
Includes one BDS032159, 2020-2023 Jeep Gladiator (JT) 2-3 inch Rear Coil Spring Box Kit, UPC Code 658848616329
Includes one BDS034440, 2019-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3-4 inch Front Coil Spring Box Kit, UPC Code 658848616893
Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
Includes two FOX98524177, 2018-2024 Jeep JL Front, PS, 2.0, Internal Floating Piston, 9.6 inch, 2-3 inch Lift, UPC Code 788000423745
