3 Inch Lift Kit Jeep Comanche MJ 86-91 Chrysler 8.25 Axle BDS Suspension

3 Inch Lift Kit Jeep Comanche MJ 86-91 Chrysler 8.25 Axle Fox 2.0 Performance

SKU

BDS440FS-BLDV

List price

$1,200.40

Price

$1,200.40

Description

Improve the style and handling of your 1986-2001 Jeep Commanche MJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the Commanche MJ, this kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.

Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles. In the rear the kit utilizes a long thin add-a-leaf to add height without creating a harsh ride and a 5/8 inch lift block to level out the Jeep.

These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Front Lift Method: Coil Spring
Rear Lift Method: Add-A-Leaf
Shocks Included: Yes
Front Lift Height: 3 inch
Rear Lift Height: 2.5 inch

The Jeep Comanche was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.
The transfer case drop kit will not be necessary for 2WD applications.

ProRide coil springs offer improved ride quality and more articulation
Transfer case drop maintains proper driveline angles
Easy, 100 percent Bolt-on installation
NX2 gas shocks for improved damping
Allows clearance for 31 inchTires

Rear Axle Option Chrylser 8.25

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts.

Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts. Chrysler axles require 3 inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Shock Option

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

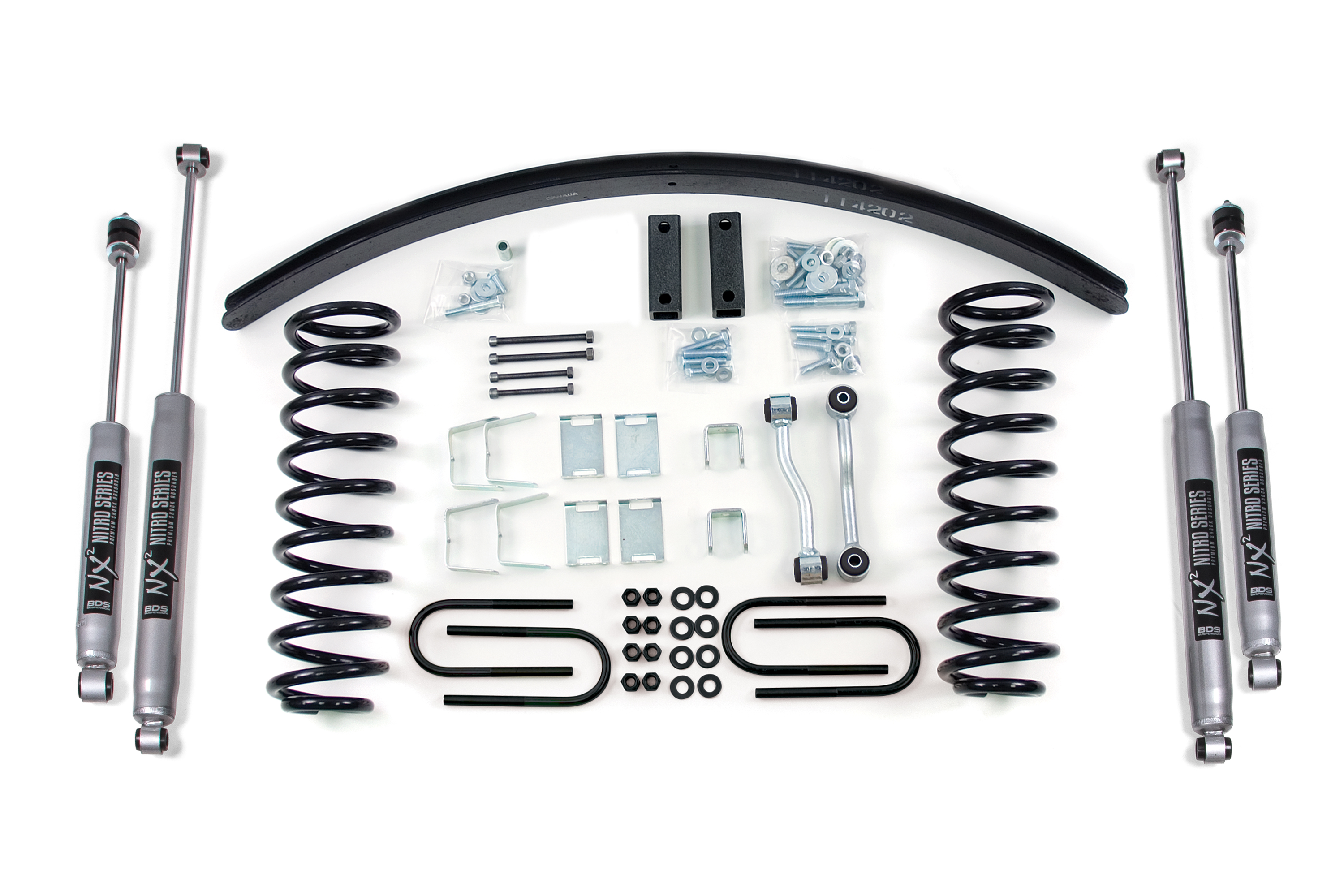

Kit Components:

Includes one BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in, UPC Code 658848616749
Includes one BDS114202, Jeep YJ/XJ Front/Rear Long Add-a-leaf, UPC Code 658848618750
Includes one BDS124006, Jeep XJ/MJ Transfer Case Drop Kit 1 inch, UPC Code 711745604544
Includes one BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid, UPC Code 711745604957
Includes two FOX98224920, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
Includes two FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
Includes four UBT4012, 1/2 x 3 x 6-3/4 Round U-bolt, UPC Code 711745613454

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

  0 of 0
0 array:5 [▼
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [▶
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8 ◀https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuz ▶"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [▶
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [▶
    "library" => array:1 [▶
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [▶
    "contexts" => []
    "tags" => array:1 [▶
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1986-1986 Jeep Comanche X

1986-1986 Jeep Comanche Custom

1986-1986 Jeep Comanche XLS

1987-1991 Jeep Comanche

1987-1988 Jeep Comanche Chief

1987-1988 Jeep Comanche Laredo

1987-1991 Jeep Comanche Pioneer

1988-1991 Jeep Comanche Eliminator

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416417678

Availability: Available

Universal: No

Shocks Included: Yes

Lift Height

3.0 Inch
