2.5 Inch Lift Kit w/ Radius Arm Ford F450 Super Duty 20-22 4WD Diesel & Gas Fox 2.0 Performance Shocks
2.5 Inch Lift Kit w/ Radius Arm Ford F450 Super Duty 20-22 4WD Diesel & Gas Fox 2.0 Performance Shocks
SKU
BDS1915FS-BLDV
List price
$2,350.68
Price
$2,350.68

Level out and take your Ford F450 Super Duty diesel or gas powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 2.5 inch
  • Rear Lift Height: 1 inch
  • Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2 inch front ride height).
  • Larger Tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in Tire and wheel fitment section.
  • Installation requires a torque wrench capable of 405 ft-lbs

Wheel/Tire Specs:

- Max Tire Size: 35x12.50
- Front Wheel: 20x8.25, 8.76 inch BS
- Rear Outer: 20x8.25, -3.33 inch BS
- Rear Inner: 20x8.25, 9.11 inch BS

  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

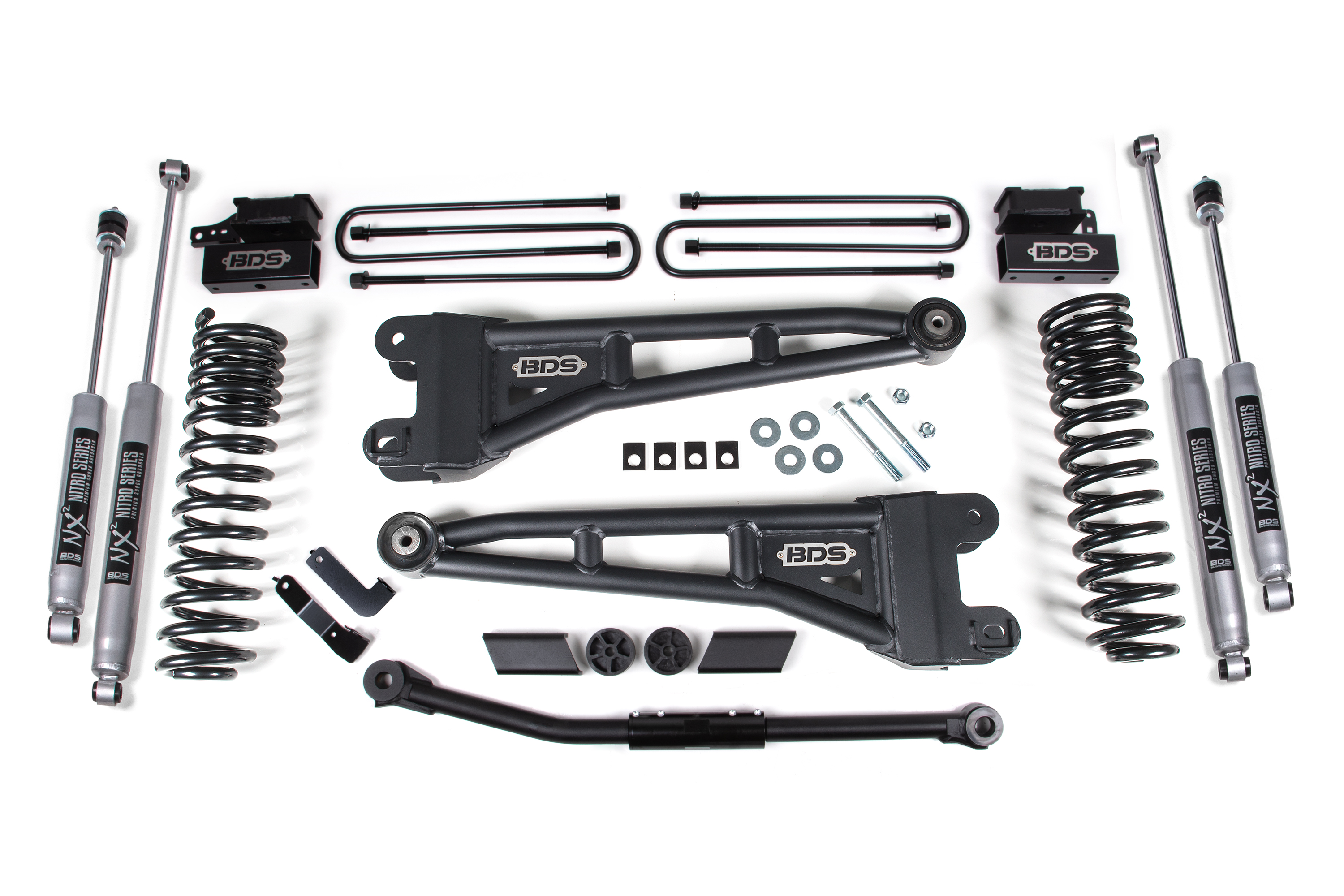

Kit Components:

  • Includes one BDS013207, 2020-2022 Ford F-450 4wd 2 inch Rear Block Kit, UPC Code 658848613137
  • Includes one BDS013263, 2020-2022 Ford F-450 Super Duty 4wd 2.5 inch Front Box Kit, UPC Code 658848613250
  • Includes one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair, UPC Code 658848616480
  • Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
  • Includes two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
  • Includes two FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]
Vehicle Fitment
2020-2020 Ford F-450 Super Duty King Ranch
2020-2020 Ford F-450 Super Duty Lariat
2020-2020 Ford F-450 Super Duty Limited
2020-2020 Ford F-450 Super Duty Platinum
2020-2020 Ford F-450 Super Duty XL
2020-2020 Ford F-450 Super Duty XLT
2021-2022 Ford F-450 Super Duty
Specs
Country of Origin: USA
Sold As: Kit
UPC: 840416404821
Availability: Available
Universal: No
Drive: 4WD
Shocks Included: Yes
Lift Height
2.5 Inch
Fuel Type
Diesel/Gas
Category
Suspension / Steering / Brakes
Suspension
Lift Kits
Brand
BDS Suspension
Vehicle Type
Truck/SUV

Includes one BDS013207, 2020-2022 Ford F-450 4wd 2 inch Rear Block Kit, UPC Code 658848613137
Includes one BDS013263, 2020-2022 Ford F-450 Super Duty 4wd 2.5 inch Front Box Kit, UPC Code 658848613250
Includes one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair, UPC Code 658848616480
Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
Includes two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
Includes two FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
