2.5 Inch Lift Kit Jeep CJ5/CJ7 82-86 BDS Suspension

2.5 Inch Lift Kit Jeep CJ5/CJ7 82-86 Fox 2.0 Performance Shocks

SKU

BDS405FS-BLDV

List price

$1,378.55

Price

$1,378.55

Description

Designed to improve stance, performance, and capability. BDS Suspension has designed this 2.5-inch lift kit for your 1982-1986 Jeep CJ5 and CJ7. This kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.

This 2.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts and round out these kits with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.

These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Front Lift Method: Leaf Spring
Rear Lift Method: Leaf Spring
Shocks Included: Yes
Front Lift Height: 2.5 inch
Rear Lift Height: 2.5 inch

Vehicles equipped with the optional Dana 44 axle will require 04005 U-bolts (Qty. 4) listed in the accessories.
Shackle bushing kit 074002 listed in the accessories is highly recommended.

Easy, 100 percent Bolt-on installation
Glideride leaf springs to provide full lift height and increased capacity
Standard NX2 Nitro shocks with vehicle-specific valving for better control

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

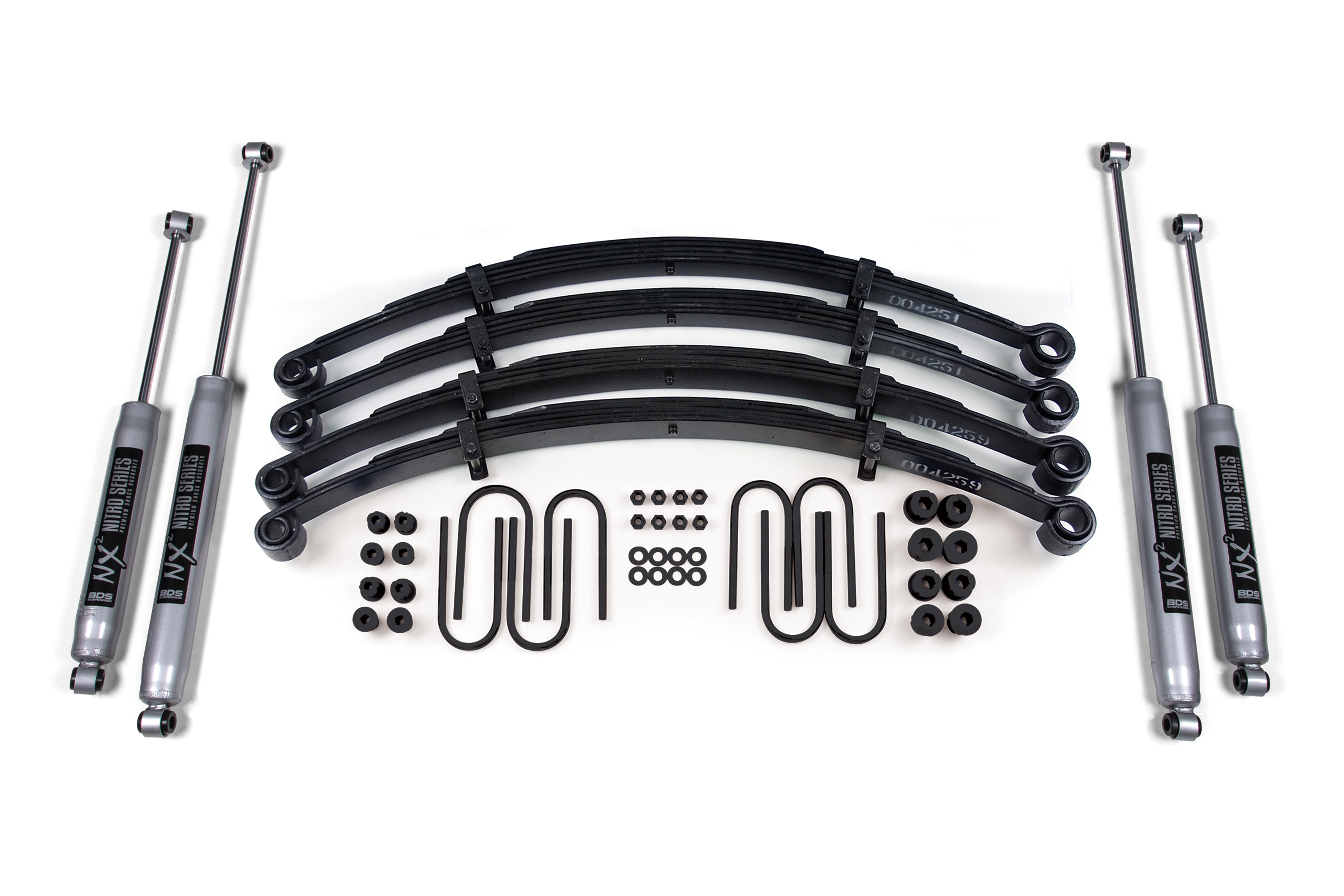

Kit Components:

Includes two BDS004251, 76-86 Jeep CJ 2.5 InchFront Spring, UPC Code 658848611478
Includes two BDS004259, 76-86 Jeep CJ 2.5 InchRear Spring, UPC Code 658848611508
Includes one BDS014250, 76-86 Jeep CJ 2.5 InchBox Kit, UPC Code 658848613946
Includes two FOX98224900, Fox 2.0 Shock 22.15 x 14.55 x 2- EB1/EB1
Includes two FOX98224950, Fox 2.0 Shock 23.65 x 15.05 x 2- EB1/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

1982-1983 Jeep CJ5

1982-1986 Jeep CJ7

1982-1983 Jeep CJ5 Laredo

1982-1983 Jeep CJ7 Laredo

1982-1983 Jeep CJ7 Limited

1982-1983 Jeep CJ5 Limited

1982-1983 Jeep CJ5 Renegade

1982-1986 Jeep CJ7 Renegade

1985-1986 Jeep CJ7 Laredo

Installation

Installation Instructions

014250_014400.pdf (670 KB)

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416417203

Availability: Available

Universal: No

Shocks Included: Yes

Lift Height

2.5 Inch
