23-24 Ford F-250/F-350 Super Duty 4WD 5 Inch Radius Arm Lift Kit 3 Inch Rear Block Gas 3 Leaf Main Zone Offroad

23-24 Ford F-250/F-350 Super Duty 4WD 5 Inch Radius Arm Lift Kit 3 Inch Rear Block Gas 3 Leaf Main No Shocks Zone Offroad

SKU

ZONF126-FQMS

List price

$1,170.19

Price

$1,170.19

Description

Zone Offroad now offers 5 Inch radius arm lift kits for the 2023-2024 Ford F250/F30 Super Duty gas 4WD trucks. These new 5 Inch lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 3 Inch Inch tires.

As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Quick Specs:

Radius or Square U-bolts Is equipped with radiused U-bolts
Rear Block Height 3 InchInch
Front Lift Height 5 Inch
Rear Lift Height 3 InchInch
Material Steel
Front Lift Method Coil Springs
Rear Lift Method Block Kit
Lift Type Lift Kit
Wheel Size 20 x 9
Back Spacing 4.5 Inch
Max Tire Size 3 Inch x 12.5
Finish Powdercoat
Cutting Required No

Features:

Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance.
Forged pitman arm to correct steering angles.
Heavy duty fabricated track bar relocation bracket to recenter the front axle.
Full length specific coil springs which are gas or diesel specific.

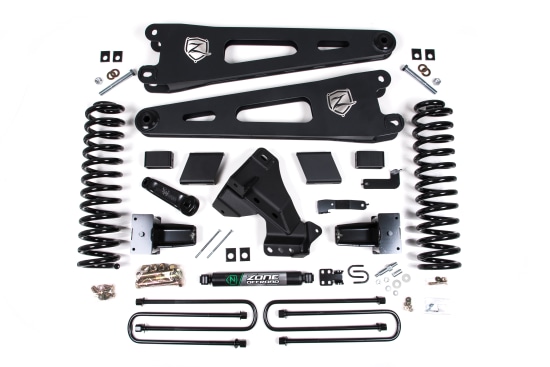

Kit Components:

ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
ZONF1318 2017-2024 F250 5 Inch Rear Block 3 Leaf Main 1 711745599130
ZONF1423 2005-2024 Ford F250/350 4 Inch Front Coil Gas (One) 2 711745599277
ZONF1432 2023 Ford F250/350 4WD Drivers Side Radius Arm Drv 1 810156368042
ZONF1433 2023 Ford F250/350 4WD Passengers Side Radius Arm Pass 1 810156368059
ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2023-2024 Ford F-350 Super Duty

2023-2024 Ford F-250 Super Duty

Installation

Installation Instructions

3e5e89c03bca798896e6b05cc2415f424943051f_F1614_25.pdf (15.1 MB)

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156368158

Availability: Available

Universal: No

Drive: 4WD

Max Tire: 37x12.5

Shocks Included: No

Lift Height

5.0 Inch

Fuel Type

Gas
