Description
JKS Mfg adds specially tuned FOX 2.0 Adventure Series IFP Gas Shocks to lineup for Jeep Wrangler JL. Designed for improved damper performance in rough terrain and all around comfort and control, thee shocks take advantage of FOX's racing pedigree and offering an affordable option that packs true race proven capability.
They feature a monotube design and an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Lengths and shock tuning have been specially designed for the JKS lift kits to optimize performance.
Get more out of your lifted Jeep JL FOX Adventure Series 2.0 shocks.
Features & Benefits
- Fox Adventure Series Shocks
- Front/Rear Dual Rate Coil Springs (Heavy Duty) designed to great ride quality across any terrain.
- Front/Rear FOX Shocks, specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front Control Arm Correction Brackets to flatten upper/lower control arm angles to correct caster and improve handling.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Rear aftermarket driveshaft recommended for 2 Door models
- Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

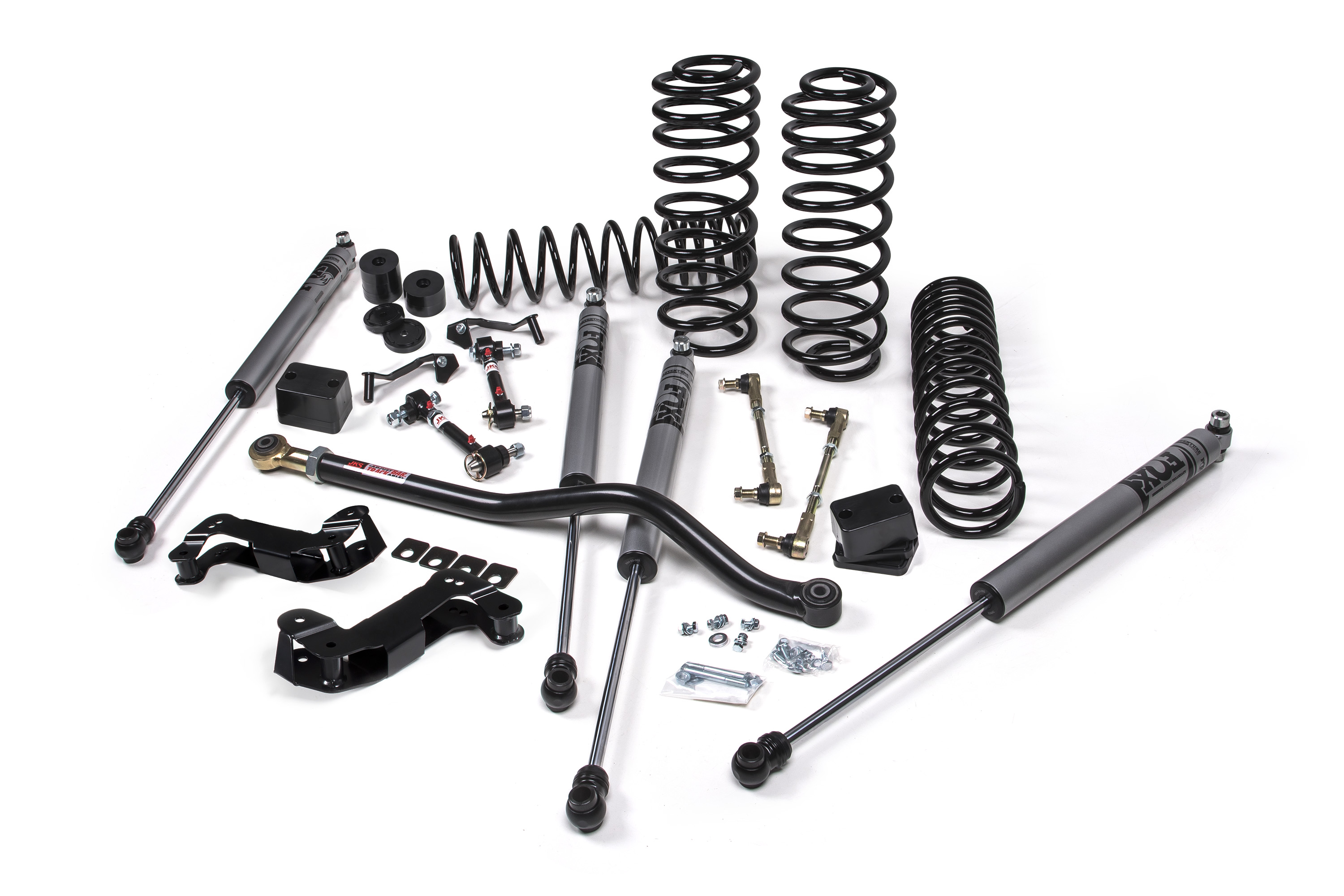

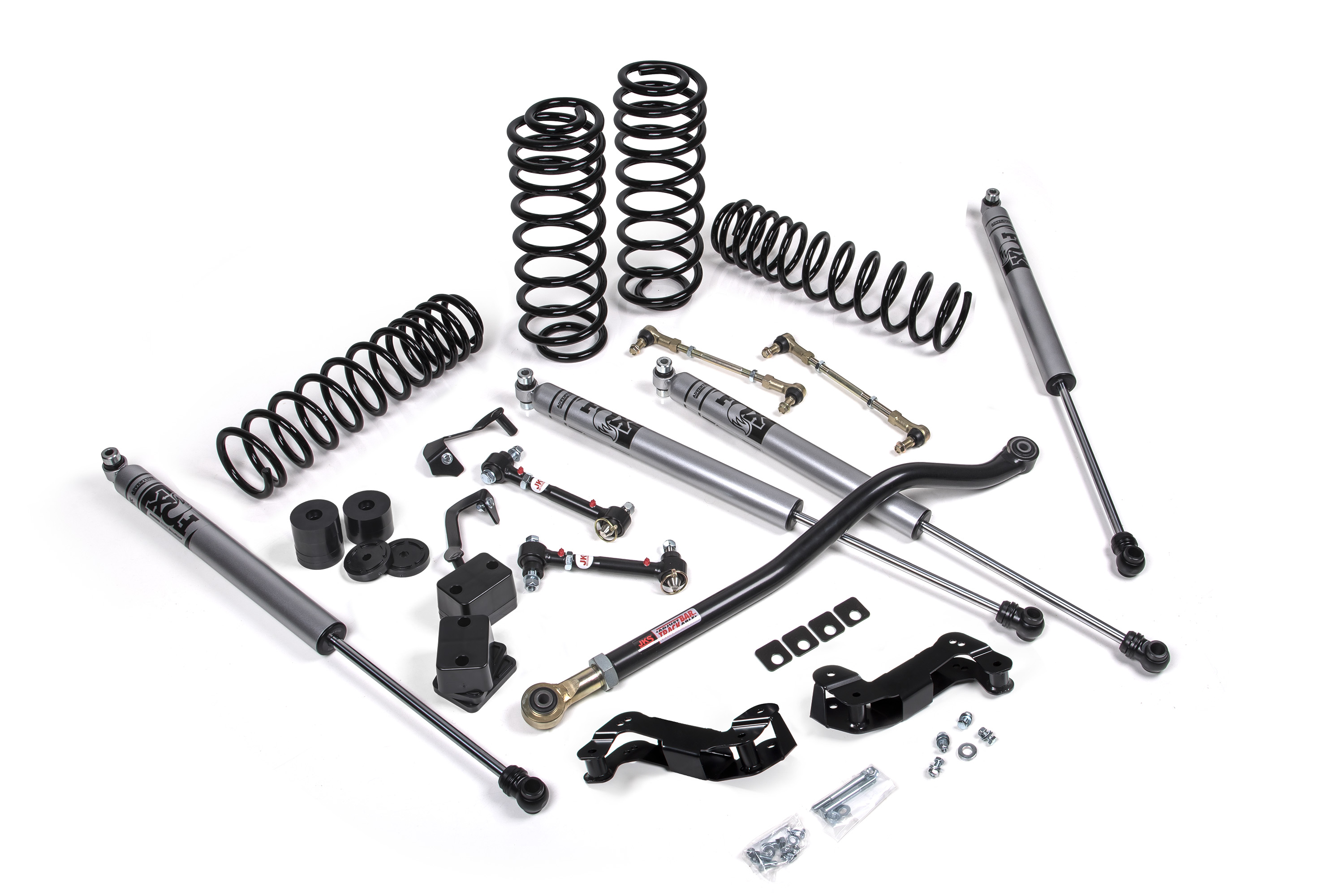

Kit Components
Includes two FOX98450323, 2018-2024 Fox Adv Shock 26.86 x 16.76 x 2 EB1/EB1, UPC Code 814897017764 Includes two FOX98450327, 2018-2024 Fox Adv Shock 30.06 x 18.46 x 2 EB1/EB1, UPC Code Includes one JKS6201, 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets, UPC Code 814897012486 Includes one JSPEC1252, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012295 Includes one JSPEC1258, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - HD, UPC Code 814897012301 Includes one JSPEC1310, 2018-2024 Jeep Wrangler (JL) J-Kontrol Ma inch Box Kit, UPC Code 814897012578
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/VmkcrvBlhMM%3Fsi%3DEGnDM6cK4DH7OoI8&max_width=0&max_height=0&hash=OBwNJ8ShzhjApZ6G8OWwJePT2eTVl-wOQQNYrEv5IJg" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Why Jeep Owners Choose JKS | Premium Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Installation
Specs
Kit Components
Includes two FOX98450323, 2018-2024 Fox Adv Shock 26.86 x 16.76 x 2 EB1/EB1, UPC Code 814897017764
Includes two FOX98450327, 2018-2024 Fox Adv Shock 30.06 x 18.46 x 2 EB1/EB1, UPC Code
Includes one JKS6201, 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets, UPC Code 814897012486
Includes one JSPEC1252, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012295
Includes one JSPEC1258, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - HD, UPC Code 814897012301
