Description
Raise up your Jeep Wrangler JL 4 Door with a J-Konnect 2.5 inch Lift kit to fit larger tires and increase off road capabilities.

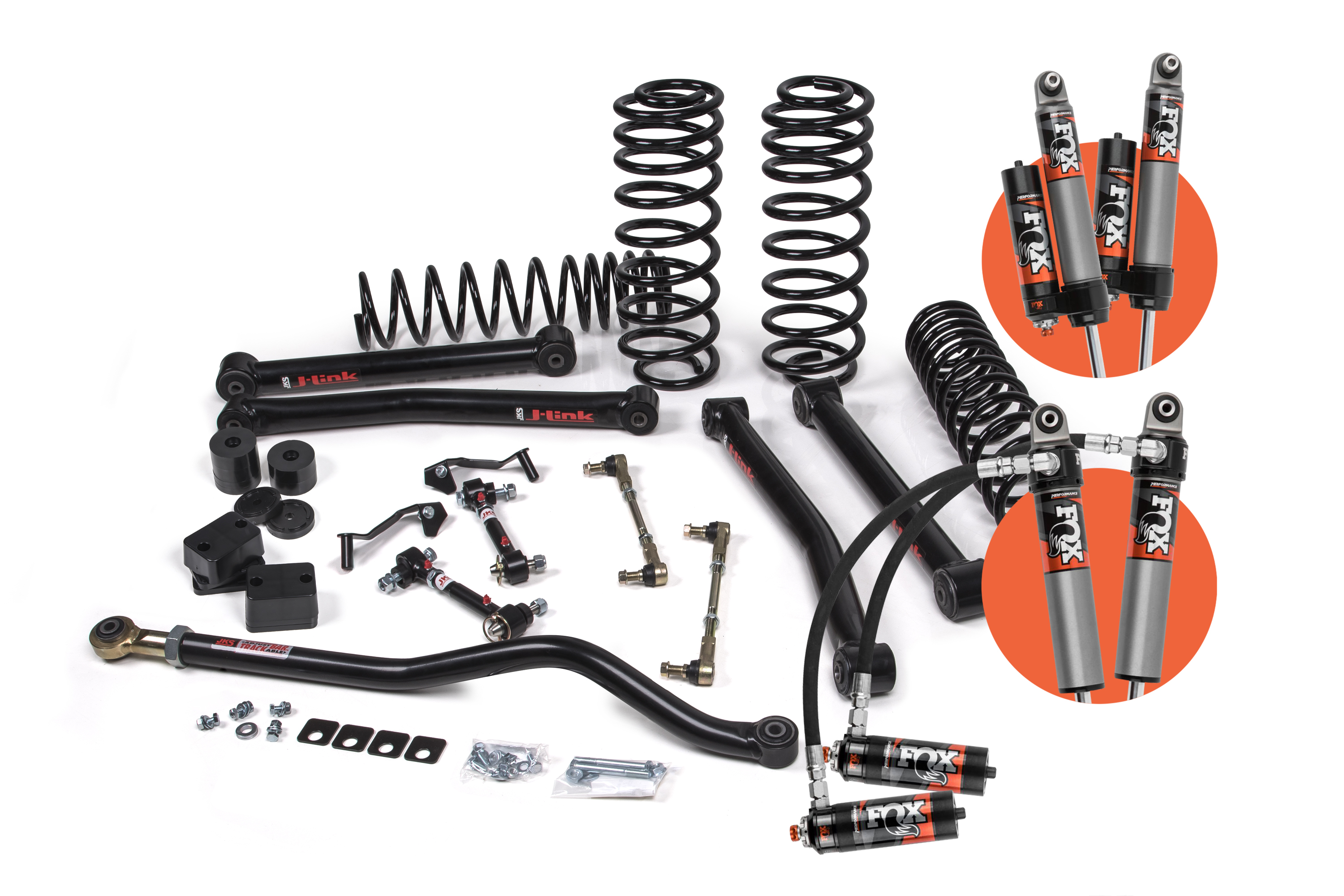

The J-Konnect kit includes dual rate coil springs, tuned gas shocks, adjustable front track bar, J-Link lower control arms, and sway bar Quicker Disconnects as well as all other hardware required for a complete 2.5 inch lift.
While the entry level J-Venture systems is designed for equal parts on-road handling and off-road capability, J-Konnect takes strength and performance a step further by adding front and rear fixed length J-Link lower control arms.
These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms.
Built 2 inch x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends. The end result is aggressive off-road performance and strength while maintaining excellent on-road manners. Get connected with J-Konnect
Features & Benefits
- Jspec Shocks
- Front/Rear Dual Rate Coil Springs (Standard) designed to great ride quality across any terrain.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front/Rear Gas Shocks (JPSEC or FOX) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Link Lower Control Arms to add strength and correct caster.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Will not fit 4xe models
- Will not fit Rubicon 392 models
Kit Components
Includes one JKS1621, 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-L k, UPC Code 814897012332 Includes one JKS1671, 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-L k, UPC Code 814897012349 Includes one JSPEC1251, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - STD, UPC Code 814897012288 Includes one JSPEC1259, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - STD, UPC Code 814897012318 Includes one JSPEC1311, 2018-2024 Jeep Wrangler (JL) J-Konnect Ma inch Box Kit, UPC Code 814897012585 Includes two JSPEC9322, 2018-2024 JSPEC - 26.2 x 15.67 x 2-3/8 - EB1/EB1, UPC Code 814897012219 Includes two JSPEC9329, 2018-2024 JSPEC - 29.78 x 17.59 x 2-3/8 - EB1/EB1, UPC Code 814897012226
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/VmkcrvBlhMM%3Fsi%3DEGnDM6cK4DH7OoI8&max_width=0&max_height=0&hash=OBwNJ8ShzhjApZ6G8OWwJePT2eTVl-wOQQNYrEv5IJg" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Why Jeep Owners Choose JKS | Premium Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Installation
Specs
Kit Components
Includes one JKS1621, 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-L k, UPC Code 814897012332
Includes one JKS1671, 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-L k, UPC Code 814897012349
Includes one JSPEC1251, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - STD, UPC Code 814897012288
Includes one JSPEC1259, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - STD, UPC Code 814897012318
Includes one JSPEC1311, 2018-2024 Jeep Wrangler (JL) J-Konnect Ma inch Box Kit, UPC Code 814897012585
