Description
Improve the ground clearance and off road capability of your 4 Door Jeep Wrangler JK with the JKS J-Kontrol 3.5 inch suspension system. The J-Kontrol system retains your OE control arms, but steps up the rest of your suspension.

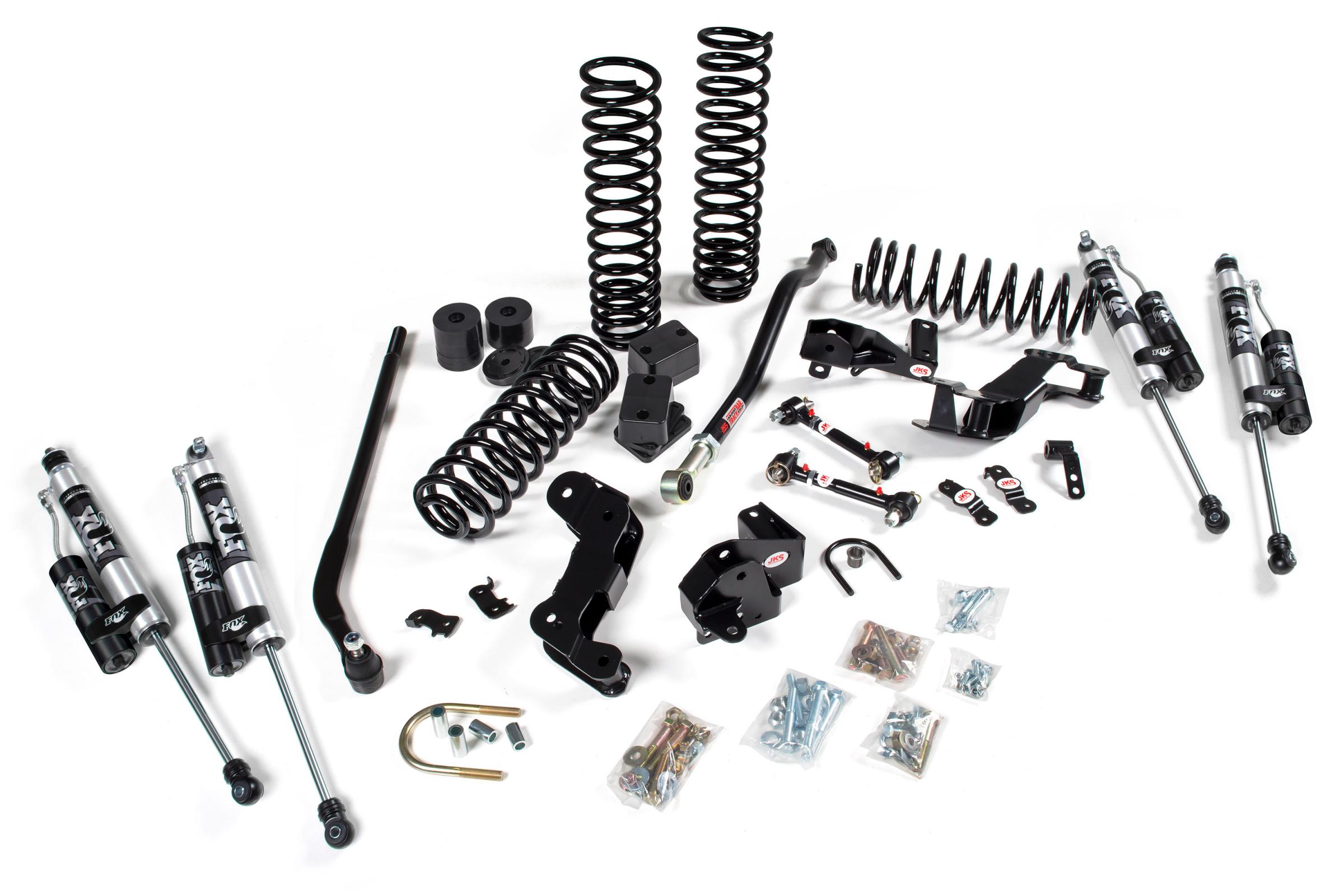

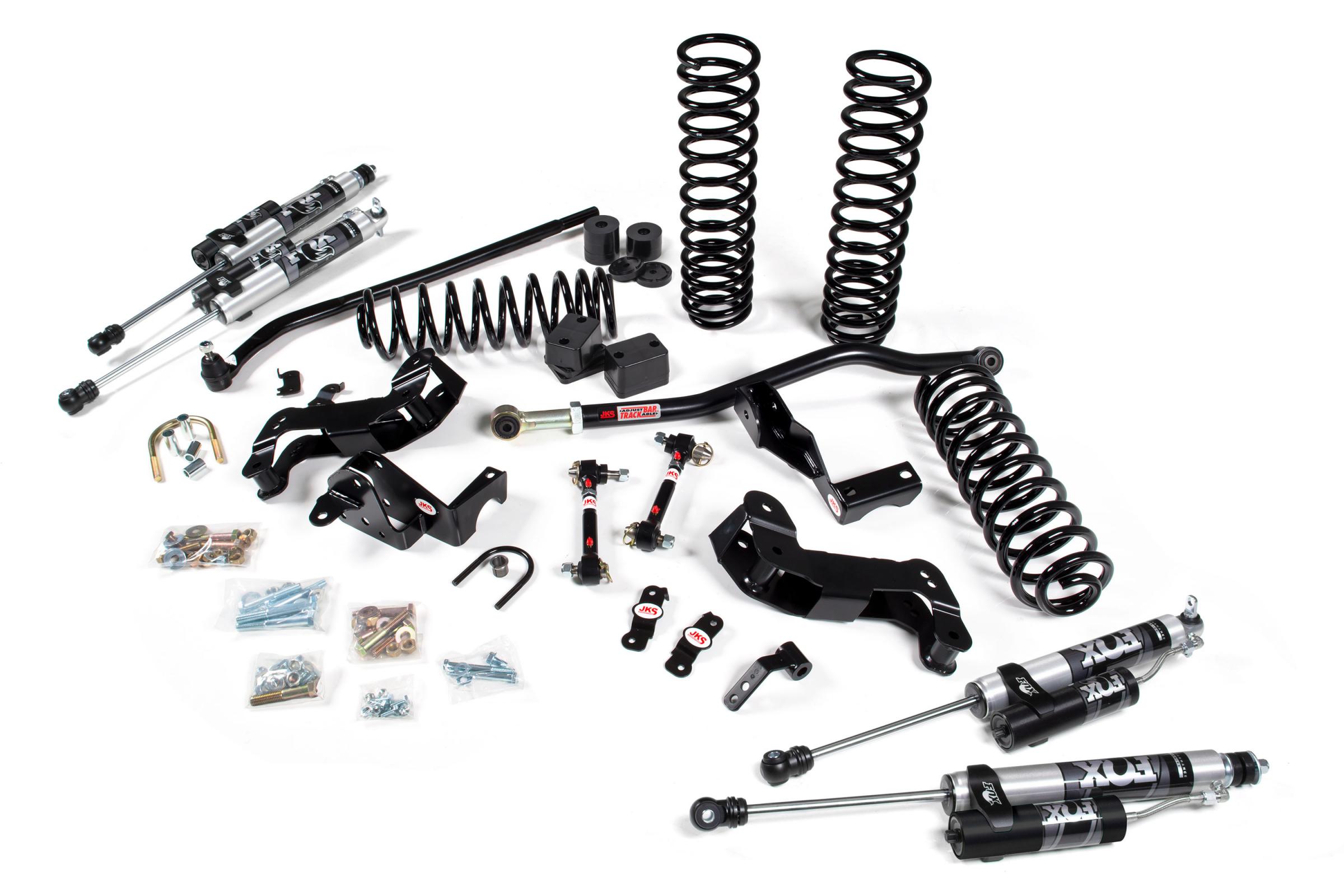

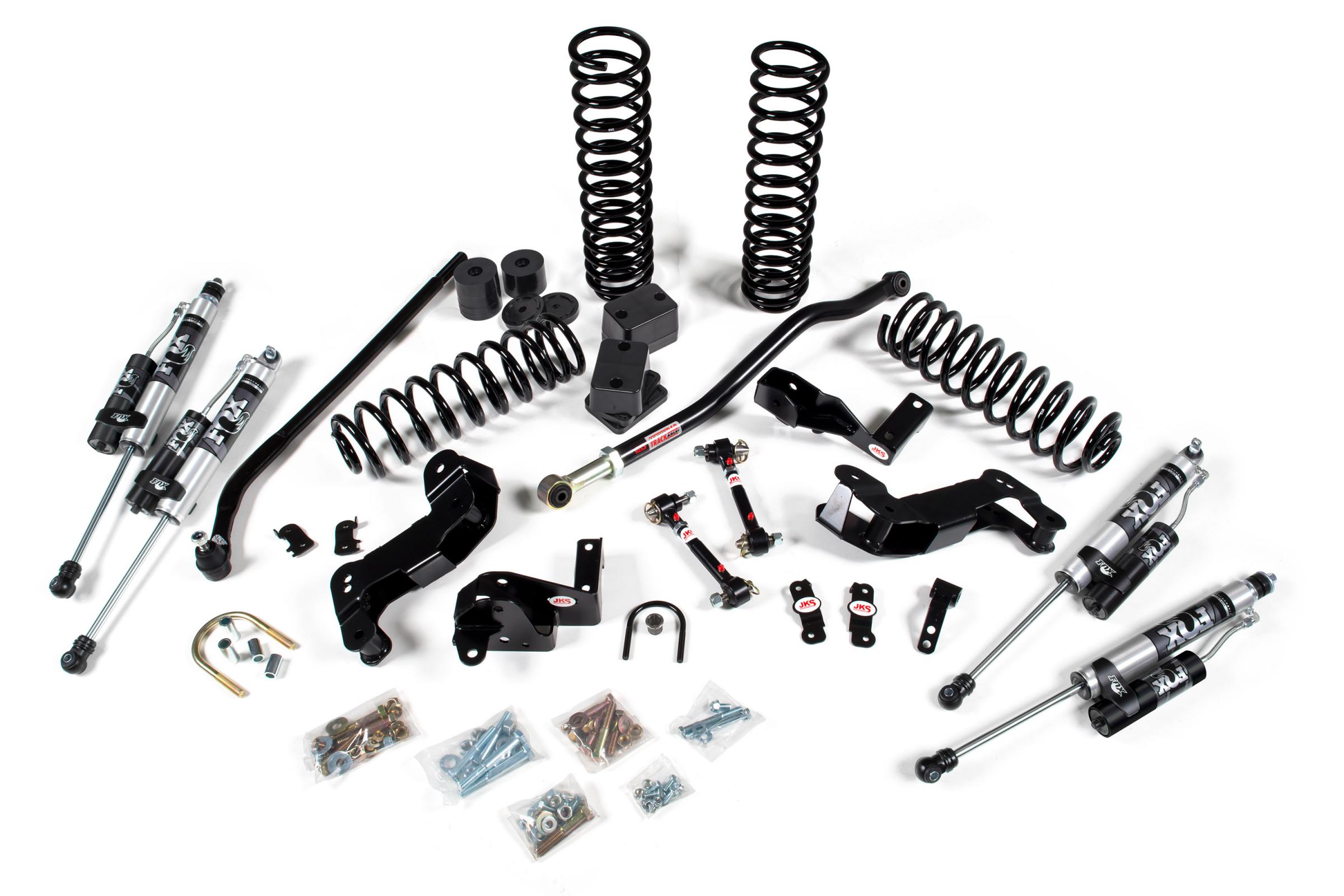

J-Kontrol kits feature dual rate coil springs, adjustable front track bar, specially-valved gas shocks, sway bar Quicker Disconnects, and front control arm correction brackets as well as all other necessary hardware for a complete bolt-on installation.
J-Kontrol system's front control arm correction brackets further enhance the on-road handling by flattening out the control arm to more closely mimic factory angles while correcting caster. With a matched combination of parts, J-Kontrol systems offer very solid performance without compromising daily-driver comfort.
If you spend a good amount of time on the trails, take control with J-Kontrol.
Features & Benefits
- JSpec Shocks
- Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.

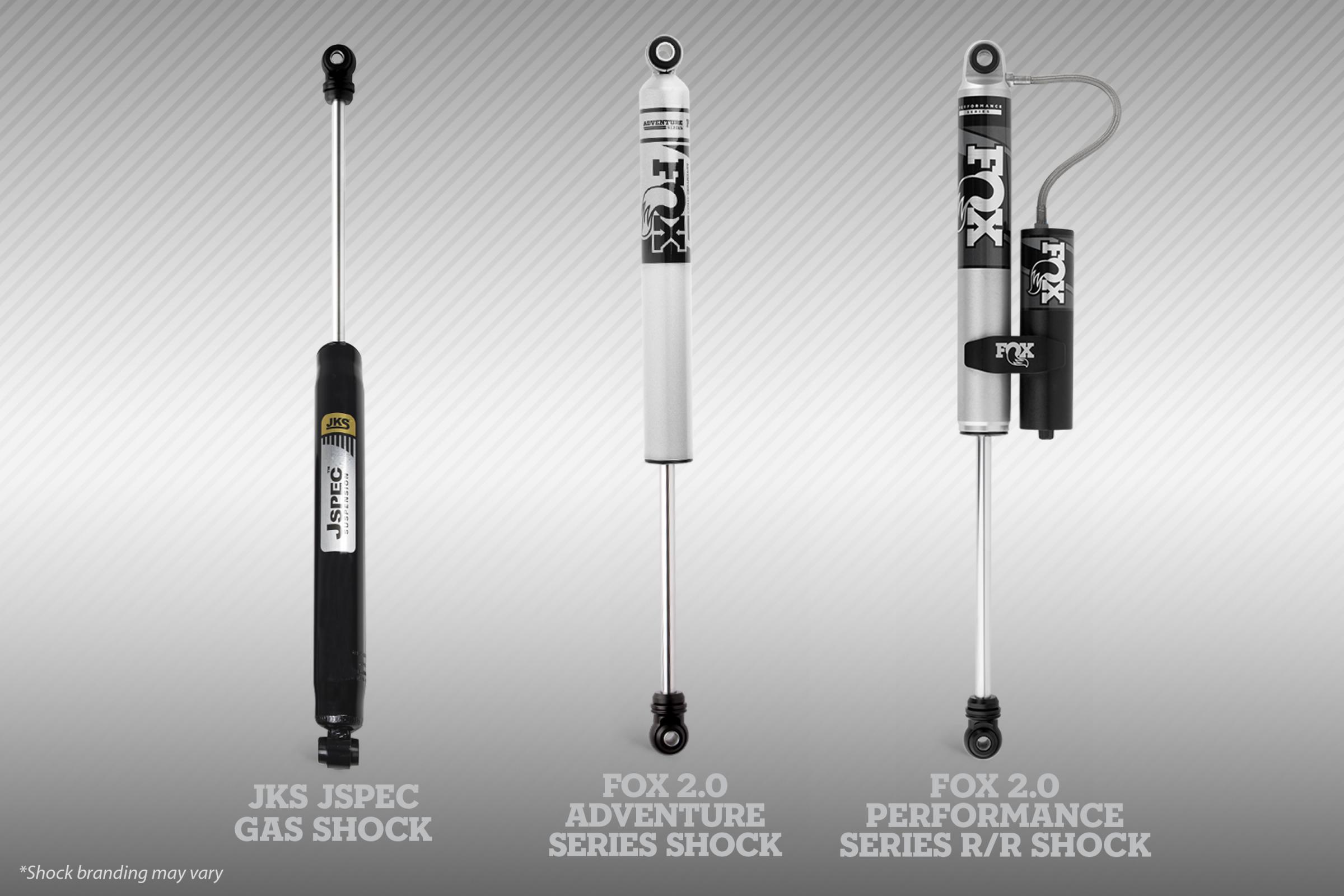

- Front+Rear Gas Shocks (JSPEC or FOX 2.0 Adventure Series IFP) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
- Front Control Arm Relocation Brackets to improve suspension geometry for improved handling.
- HD Drag Link Flip Kit w/ Track Bar Bracket to improve steering angles for better handling.
- Front+Rear Bump Stop Extensions to properly limit suspension up travel.
Tire Specs
- Tire: 35x12.50
- Wheel: 16x8, 17x9, 20x9
- Backspacing: 4.5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
- Rubicon sway bar link hardware included in kit.
- Requires 17 inch or larger wheels with 4.5 inch BS (or smaller) for steering clearance.
Kit Components
Includes one JSPEC2350, 07-18 JK 4Dr 3.5 inch Coil Box Kit, UPC Code 814897011564 Includes one JSPEC2353, 07-18 Jeep JK J Kontrol Box Kit, UPC Code 814897011755 Includes one JSPEC2450, JK Advanced Geometry Upgrade Kit, UPC Code 814897011748 Includes two JSPEC9301, JSPEC- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 814897011915 Includes two JSPEC9309, JSPEC- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 814897011922
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/VmkcrvBlhMM%3Fsi%3DEGnDM6cK4DH7OoI8&max_width=0&max_height=0&hash=OBwNJ8ShzhjApZ6G8OWwJePT2eTVl-wOQQNYrEv5IJg" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Why Jeep Owners Choose JKS | Premium Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Installation
Specs
Kit Components
Includes one JSPEC2350, 07-18 JK 4Dr 3.5 inch Coil Box Kit, UPC Code 814897011564
Includes one JSPEC2353, 07-18 Jeep JK J Kontrol Box Kit, UPC Code 814897011755
Includes one JSPEC2450, JK Advanced Geometry Upgrade Kit, UPC Code 814897011748
Includes two JSPEC9301, JSPEC- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 814897011915
Includes two JSPEC9309, JSPEC- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 814897011922
