2 Inch Lift Kit Chevy Trailblazer or GMC Envoy 02-09 BDS Suspension

2 Inch Lift Kit Chevy Trailblazer or GMC Envoy 02-09 Fox 2.0 Performance Shocks

SKU

BDS168FS-BLDV

List price

$757.85

Price

$757.85

Description

Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUV's, this 2 inch lift kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount increases the pre-load of the strut as well as increases the over all length of the strut assembly.

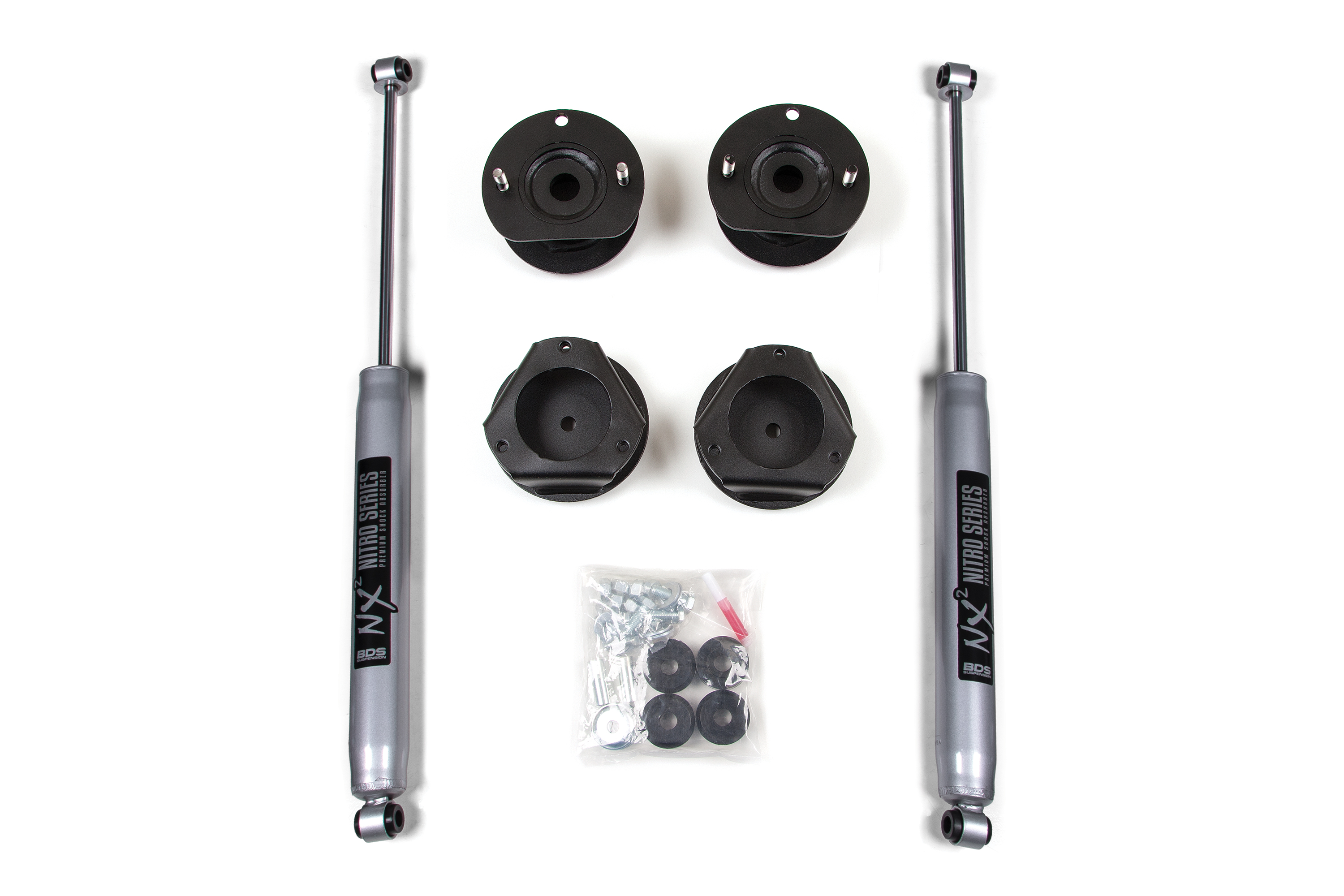

The lift kit Includes steel top mount strut spacers, rear coil spring mounts and custom-tuned NX2 Nitro or FOX Performance series shocks.

Front Lift Method: Strut Spacer
Rear Lift Method: Spacer
Shocks Included: Yes
Front Lift Height: 2 inch
Rear Lift Height: 2 inch

Strut compressor required for installation
Will not fit vehicles equipped with a rear air-ride system
Will fit Ext and XL models
Front only kit available as part #121201

Easy, 100 percent Bolt-on installation
Maintains factory like ride quality
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

Kit Components:

Includes one BDS011201, 02-09 GM Trail/Envoy 2 Inch Box Kit, UPC Code 658848611676
Includes two FOX98224619, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

  0 of 0
0 array:5 [▼
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [▶
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8 ◀https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuz ▶"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [▶
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Go Explore | BDS Suspension"
  ]
  "#attached" => array:1 [▶
    "library" => array:1 [▶
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [▶
    "contexts" => []
    "tags" => array:1 [▶
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2002-2007 Chevrolet Trailblazer LS

2002-2009 Chevrolet Trailblazer LT

2002-2003 Chevrolet Trailblazer LTZ

2002-2004 Chevrolet Trailblazer North Face

2002-2009 GMC Envoy SLE

2002-2009 GMC Envoy SLT

2005-2009 GMC Envoy Denali

2006-2009 Chevrolet Trailblazer SS

2008-2008 Chevrolet Trailblazer

Specs

Country of Origin: USA

Sold As: Kit

UPC: 840416413038

Availability: Available

Universal: No

Drive: 4WD

Shocks Included: Yes

Lift Height

2.0 Inch
