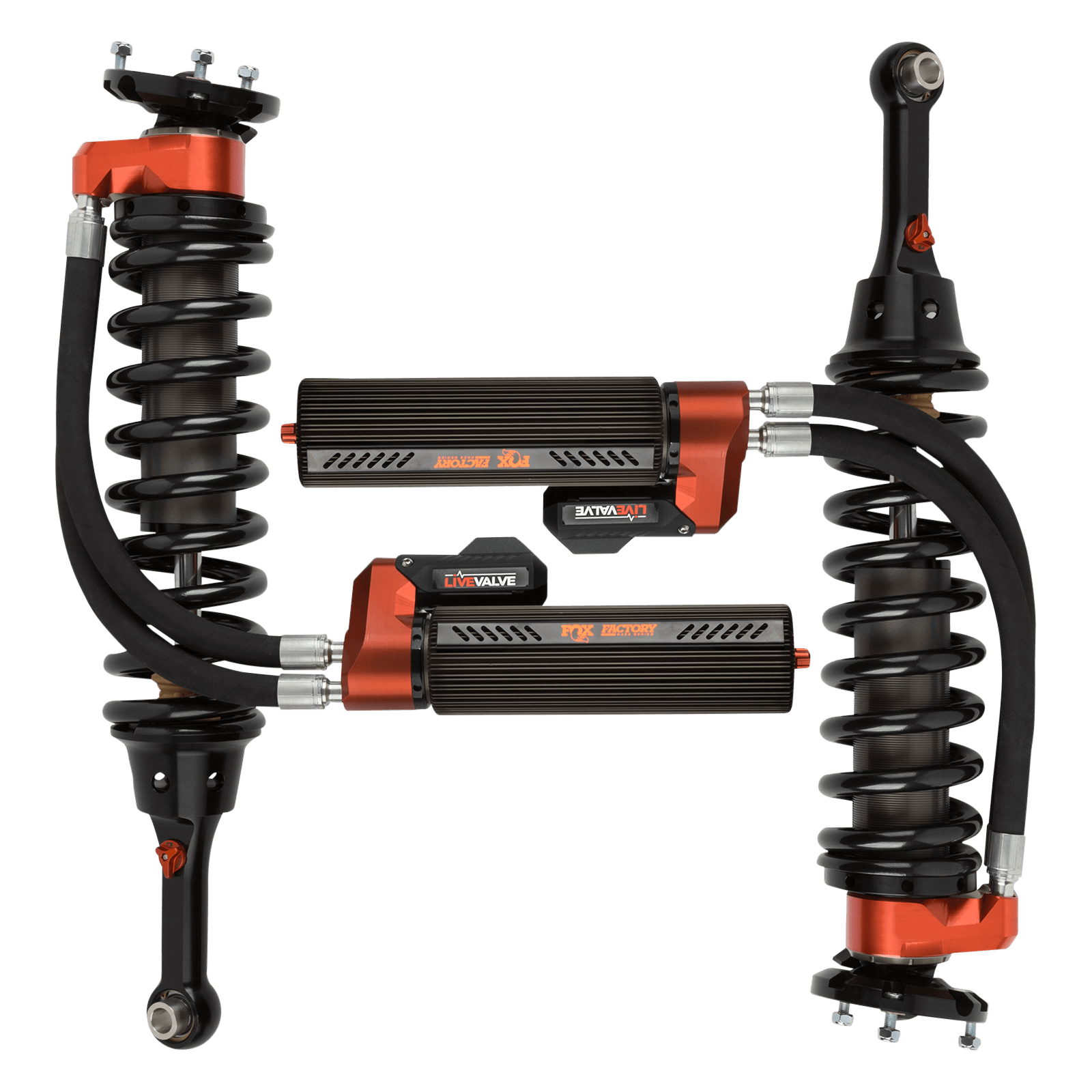

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance.

Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

• Live Valve semi active technology equipped, plug and play integration to factory electronics
• Rebound and compression adjustable via Quick Switch Technology (QS3)
• Rotatable hose fittings for easy installation
• FOX patented, position-sensitive Internal Bypass damping technology

Features

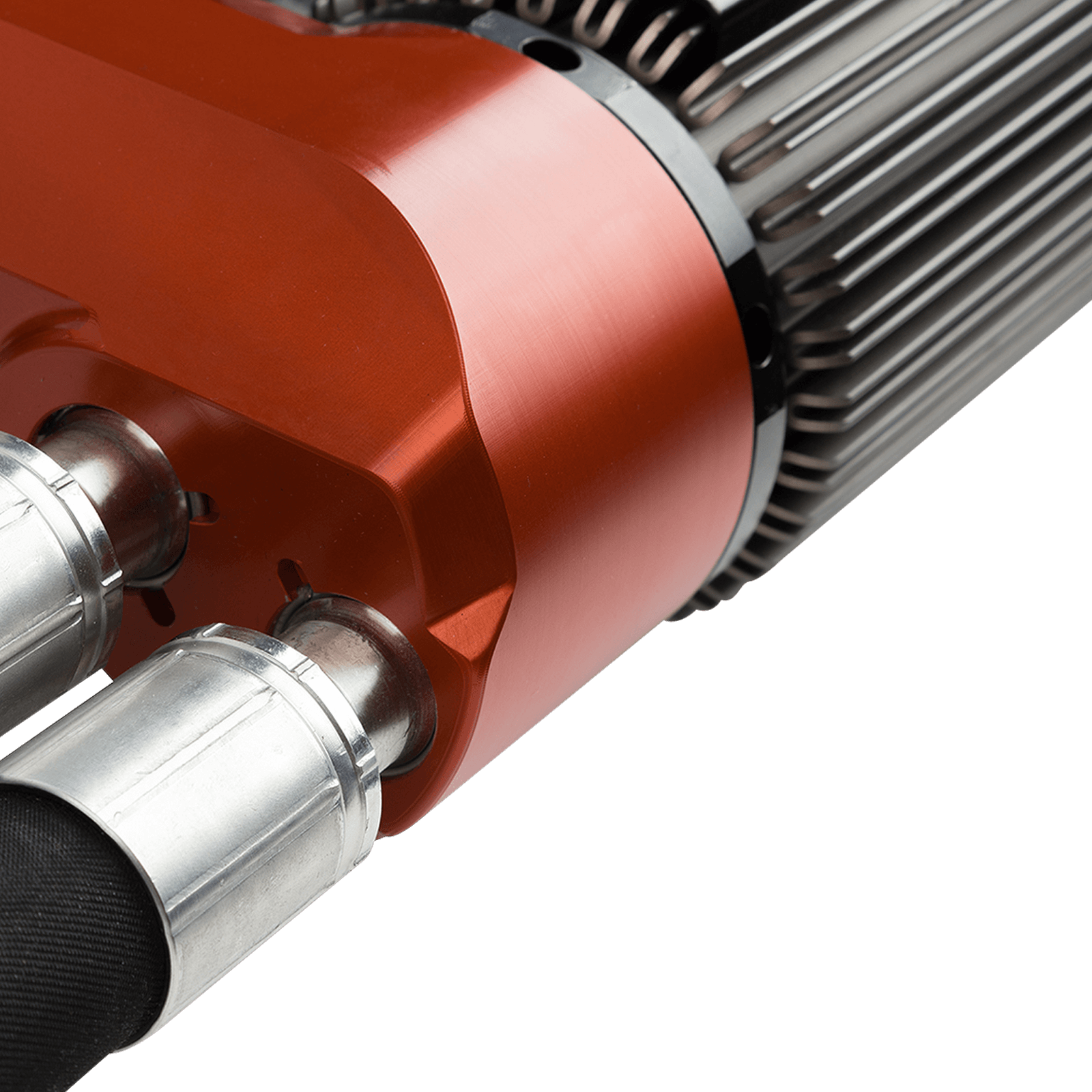

• Performance Tuned Specifically For Raptor, Finned External Reservoir System Dissipates Heat Fast, Quick Switch Compression And Rebound Adjusters, Live Valve Terrain Adaptive Technology, Black Anodized CNC Machined Aluminum Components
• Series Factory Race
• Travel 7.89
• Front Lift Height 0-2
• Body 3.0 Inch impact extruded and CNC machined 6061-T6 hard-anodized aluminum Body resists corrosion and weighs less than steel
• Body Plating Hard-anodized for a durable finish
• Components Anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 7/8 Inch hard chrome plated 17-4 H900 stainless steel
• Piston Hard anodized 6061-T6 billet aluminum high flow race Piston
• Valving Application-specific Valving to maximize performance
• Seals Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
• Bearings PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
• Extended Length 28.49
• Compressed Length 20.6
• Top Mount OEM
• Bottom Mount Eyelet
• Fitment NotesReservoir Mounting Hardware Included
