19-23 RAM 1500 4WD 6 Inch Front 5 Inch Rear Lift Kit Zone Offroad

19-23 RAM 1500 4WD 6 Inch Front 5 Inch Rear Lift Kit No Shocks Zone Offroad

SKU

ZOND96-FQMS

List price

$1,543.65

Price

$1,543.65

Description

Take your RAM 1500 to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and differential relocation brackets to maintain driveline angles.

Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.
Quick Specs:

Front Lift Height 6 Inch
Rear Lift Height 5 Inch
Material Steel
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Coil Springs
Lift Type Lift Kit
Wheel Size 20 x 9
Back Spacing 4.5-5 Inch
Max Tire Size 37 x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 4.5-5 Inch
Max Tire Size 2 37 x 12.5
Finish Powdercoat
Cutting Required Yes
FMVSS Certification Yes
Accommodates Factory Wheels See Notes

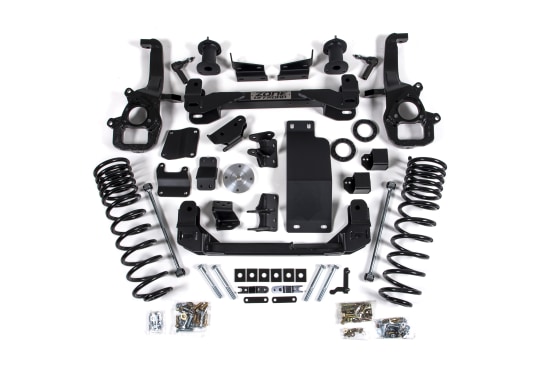

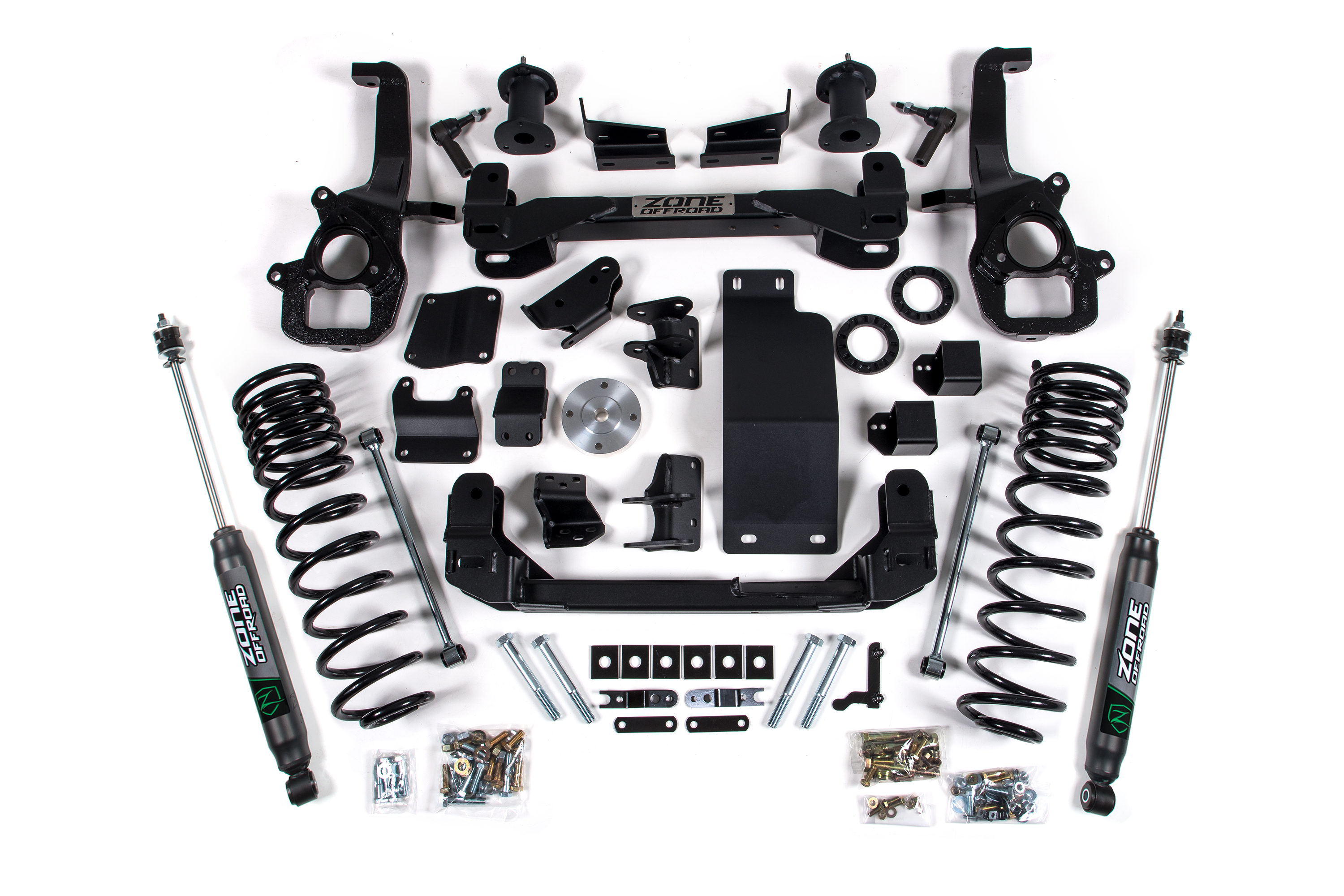

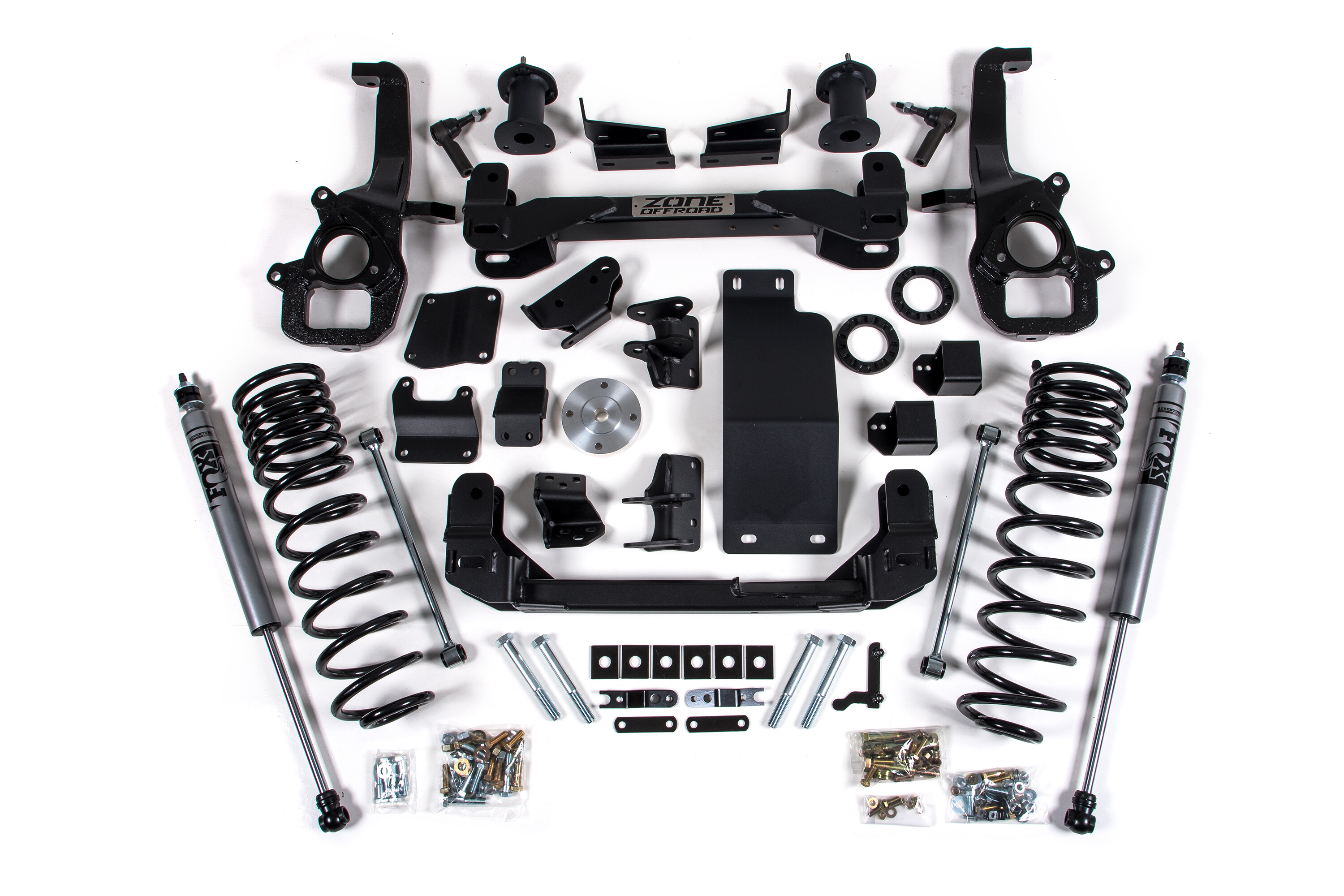

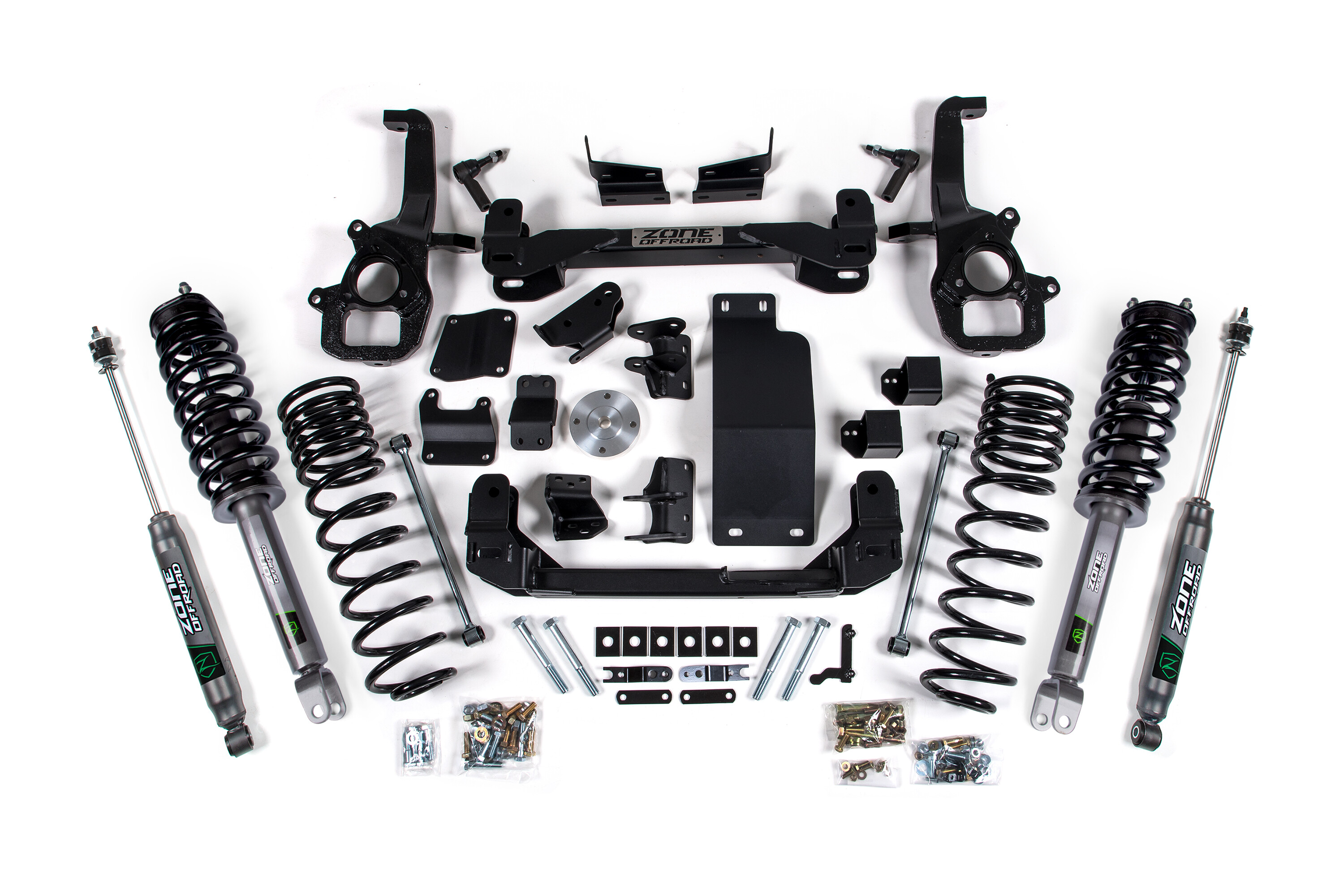

In The Box:

Coil Springs - Rear
Differential Relocation Brackets
Frame Crossmembers - Front and Rear
Driveshaft Spacer
Steering Knuckles
Strut Spacers
Sway Bar Links
Tie Rod End(s)

Features:

Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
Heavy-duty differential skid slate improves offroad protection.
High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
Top mount strut and preload spacers set ride height and maintain ride quality.
5 Inch rear coil springs achieve leveled stance while maintain ride quality and load capacity.

Kit Components:

ZOND2630 2019-2023 RAM 1500 4WD Knuckle Box Kit Std Drv 1 711745594302
ZOND2631 2019-2023 RAM 1500 4WD Knuckle Box Kit Std Pass 1 711745594319
ZOND2634 2019-2023 RAM 1500 4WD 6 Inch Strut Spacer Box Kit 1 711745594340
ZOND2639 2019-2023 RAM 1500 4WD 3-5 Inch Rear Box Kit 1 711745594357
ZOND2642 2019-2023 RAM 1500 4WD 4-6 Inch Front Box Kit 1 of 2 1 711745594388
ZOND2643 2019-2023 RAM 1500 4WD 4-6 Inch Front Box Kit 2 of 2 1 711745594395
ZOND3509 2019-2023 RAM 1500 4WD 5 Inch Rear Box Kit 1 711745594401

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2019-2022 Ram 1500

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156364693

Availability: Available

Universal: No

Drive: 4WD

Max Tire: 37x12.5

Shocks Included: No

Lift Height

6.0 Inch

Fuel Type

Gas/Diesel
