Description
Improve the ground clearance and off road capability of your 4 Door Jeep Wrangler JL with the JKS J-Kontrol 3.5 inch suspension system.
The J-Kontrol system retains your OE control arms, but steps up the rest of your suspension. J-Kontrol kits feature dual rate coil springs, adjustable front track bar, specially-valved gas shocks, sway bar Quicker Disconnects, and front control arm correction brackets as well as all other necessary hardware for a complete bolt-on installation.
J-Kontrol system's front control arm correction brackets further enhance the on-road handling by flattening out the control arm to more closely mimic factory angles while correcting caster. With a matched combination of parts, J-Kontrol systems offer very solid performance without compromising daily-driver comfort.
If you spend a good amount of time on the trails, take control with J-Kontrol.
Features & Benefits
- Fox Adventure Series Shocks
- Front/Rear Dual Rate Coil Springs (Heavy Duty) designed to great ride quality across any terrain.
- Front/Rear Gas Shocks (Jspec, FOX 2.0 Performance Series) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front Control Arm Correction Brackets to flatten upper/lower control arm angles to correct caster and improve handling.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Will not fit 4xe models
- Will not fit Rubicon 392 models
- Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

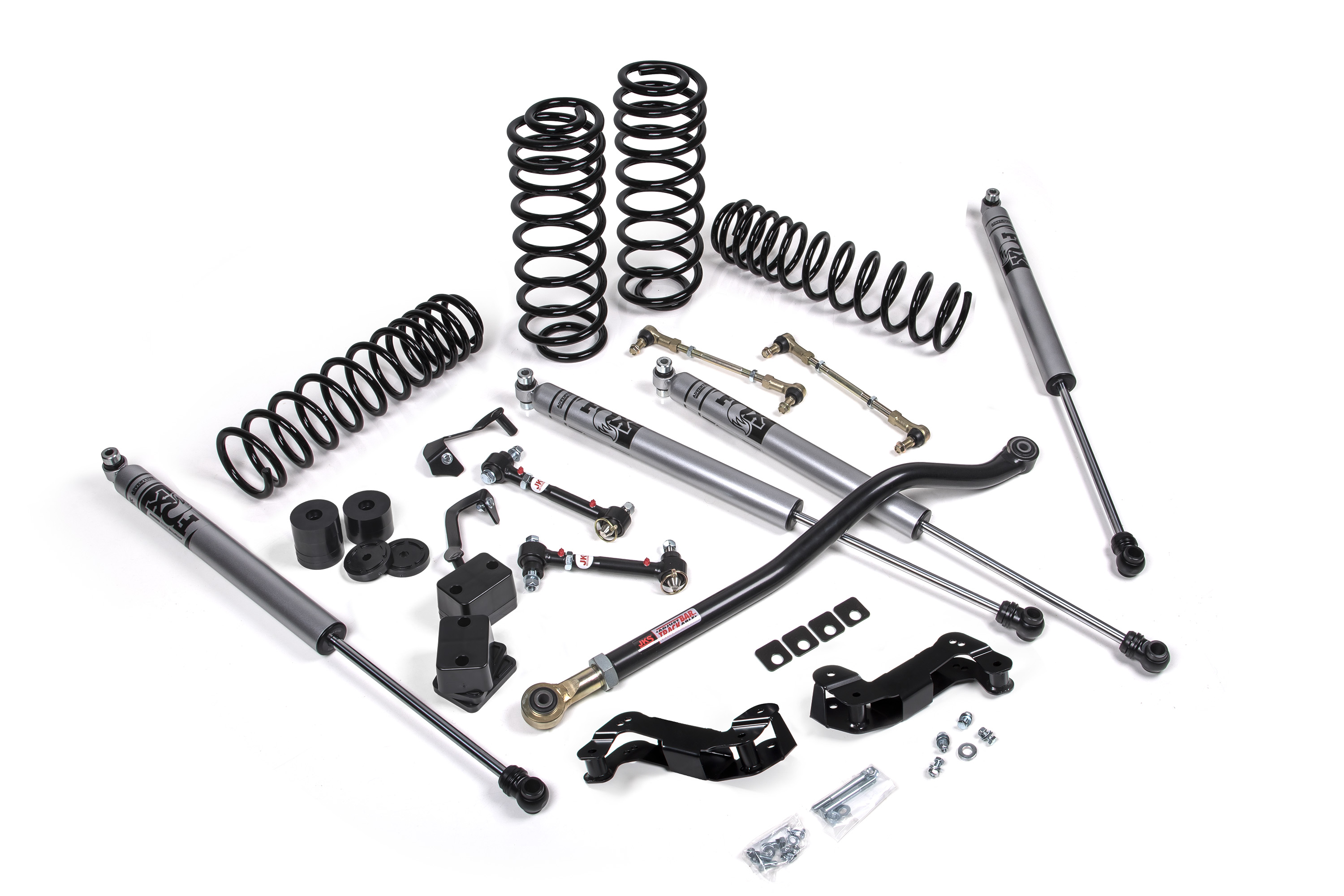

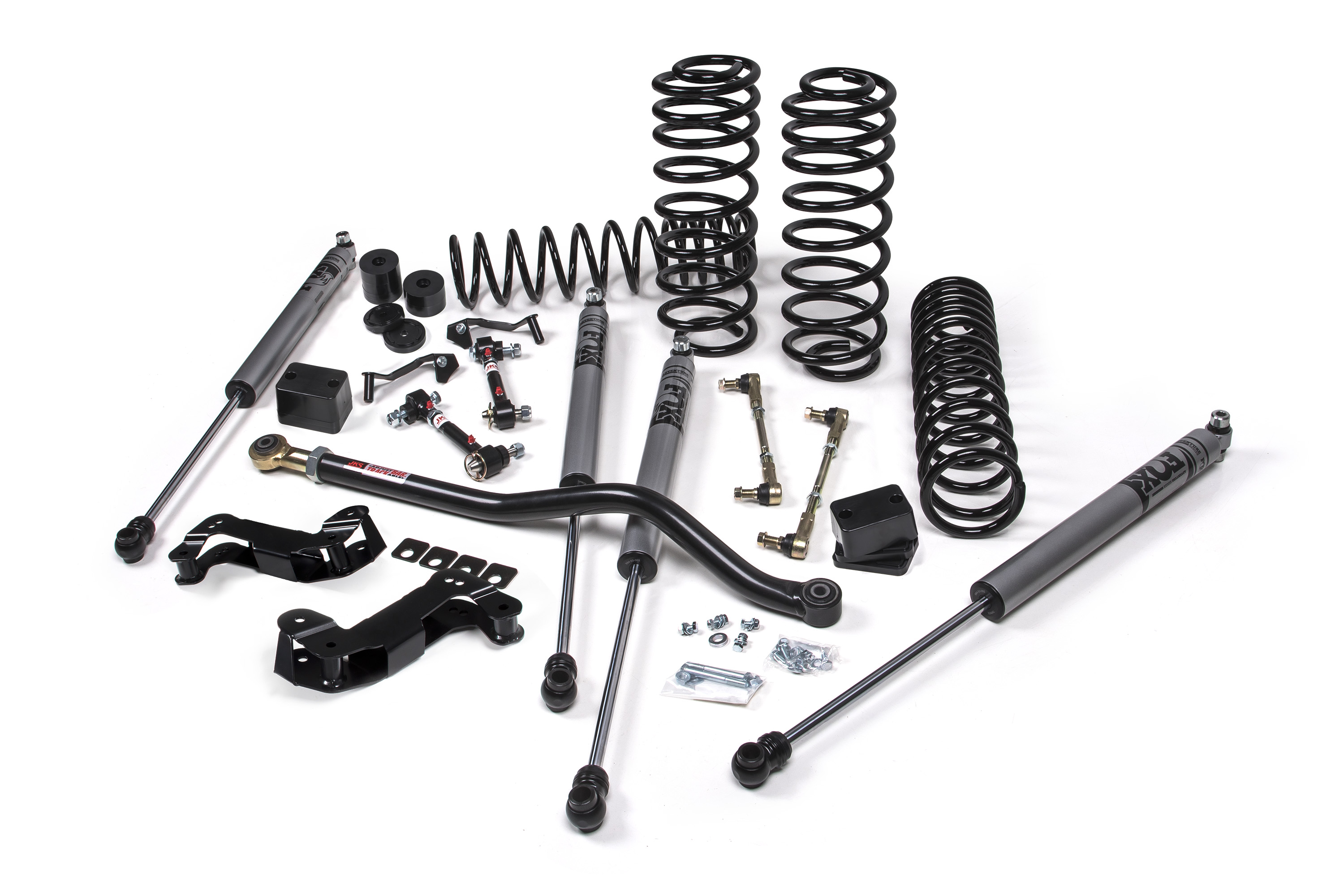

Kit Components
Includes two FOX98450323, 2018-2024 Fox Adv Shock 26.86 x 16.76 x 2 EB1/EB1, UPC Code 814897017764 Includes two FOX98450327, 2018-2024 Fox Adv Shock 30.06 x 18.46 x 2 EB1/EB1, UPC Code Includes one JKS6201, 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets, UPC Code 814897012486 Includes one JSPEC1310, 2018-2024 Jeep Wrangler (JL) J-Kontrol Ma inch Box Kit, UPC Code 814897012578 Includes one JSPEC1352, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012370 Includes one JSPEC1358, 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spr inchg Kit - HD, UPC Code 814897012387
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/VmkcrvBlhMM%3Fsi%3DEGnDM6cK4DH7OoI8&max_width=0&max_height=0&hash=OBwNJ8ShzhjApZ6G8OWwJePT2eTVl-wOQQNYrEv5IJg" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Why Jeep Owners Choose JKS | Premium Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Installation
Specs
Kit Components
Includes two FOX98450323, 2018-2024 Fox Adv Shock 26.86 x 16.76 x 2 EB1/EB1, UPC Code 814897017764
Includes two FOX98450327, 2018-2024 Fox Adv Shock 30.06 x 18.46 x 2 EB1/EB1, UPC Code
Includes one JKS6201, 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets, UPC Code 814897012486
Includes one JSPEC1310, 2018-2024 Jeep Wrangler (JL) J-Kontrol Ma inch Box Kit, UPC Code 814897012578
Includes one JSPEC1352, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012370
