16-23 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit Zone Offroad

16-23 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit No Shocks Zone Offroad

SKU

ZONT8-FQMS

List price

$1,151.80

Price

$1,151.80

Description

Take your Tacoma to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 33 Inch tires.
Quick Specs:

Front Lift Height 4 Inch
Rear Lift Height 3 Inch
Front Lift Method Strut Spacer & Cross-Member
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 4.5 Inch
Max Tire Size 33 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 4.5 Inch
Max Tire Size 2 33 x 12.5
Wheel Size 3 22 x 9
Back Spacing 3 4.5 Inch
Max Tire Size 33 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels No
Welding Required Yes

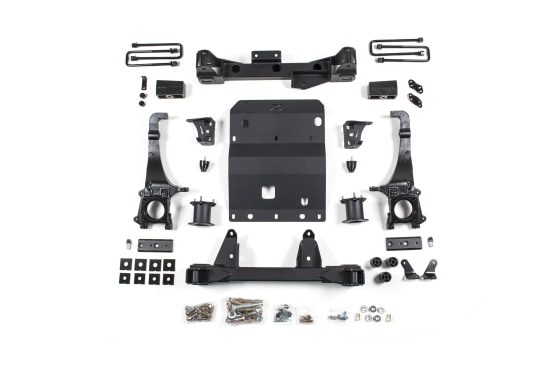

In The Box:

All Necessary Mounting / Installation Hardware
Crossmembers
Rear Lift Block & U-Bolt Kit
Steering Knuckles
Strut Spacers

Features:

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Full width belly skid plate offers improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Bump stop, sway bar and brake line relocation brackets to correct operating angles

Kit Components:

ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789
ZONT2413 2016-2023 Toyota Tacoma Box Kit (2of3) 1 711745601826
ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888
ZONT2612 2016-2023 Toyota Tacoma Box Kit (3of3) 1 711745601925

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2016-2020 Toyota Tacoma

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156367991

Availability: Available

Universal: No

Max Tire: 33x12.5

Shocks Included: No

Lift Height

4.0 Inch

Fuel Type

Gas/Diesel
