14-18 Silverado/Sierra 1500 2WD 6.5 Inch Cast Steel Arms Zone Offroad

14-18 Silverado/Sierra 1500 2WD 6.5 Inch Cast Steel Arms No Shocks Zone Offroad

SKU

ZONC33-FQMS

List price

$847.90

Price

$847.90

Description

Take your Silverado/Sierra 1500 to new heights with this 6.5 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.

Get the look, performance, and capability your truck deserves with clearance for 35 Inch tires.
Quick Specs:

Front Lift Height 6.5 Inch
Rear Lift Height 5 Inch
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 5.25 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 20 x 9
Back Spacing 3 5.75 Inch
Max Tire Size 3 35 x 12.5
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

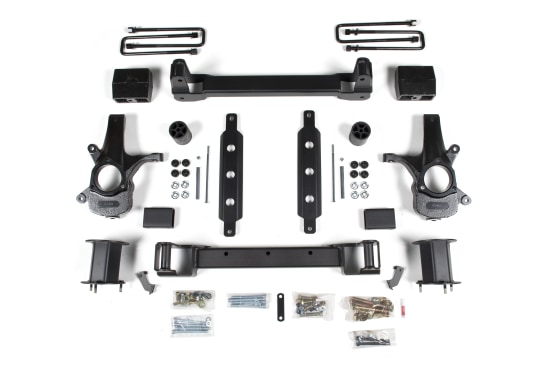

In The Box:

All Necessary Mounting / Installation Hardware
Crossmembers
Differential Drop Brackets
Rear Lift Block & U-Bolt Kit
Skid Plate
Steering Knuckles
Strut Spacers
Sway Bar Relocation Brackets

Features:

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain FMVSS No126 (ESC System) compatibility
Top mounted strut spacers to provide lift and install easily
Rear 5 Inch lift block and u-bolt kit to lift and level the stance
Sway bar, bracket line and bump stop relocation brackets to correct operating angles
Allows clearance for up to 35 Inch tires

Kit Components:

ZONC2650 2014-2018 Chevy/GMC 1500 6.5 Inch/4.5 Inch Cast Steel 1 711745597303
ZONC2653 2014-2018 Chevy/GMC 1500 2WD 6.5 Inch (Box 2of2) 1 711745597334

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2014-2018 GMC Sierra 1500

2014-2018 Chevrolet Silverado 1500

Installation

Installation Instructions

1e2ba22464c7dc5ebf731cd42f729d11f5817035_C2453_C2653_10.pdf (13.43 MB)

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156360572

Availability: Available

Universal: No

Drive: 2WD

Max Tire: 35x12.5

Shocks Included: No

Lift Height

6.5 Inch

Fuel Type

Gas/Diesel
