14-18 RAM 2500 6.5 Inch Lift Kit Diesel Zone Offroad

14-18 RAM 2500 6.5 Inch Lift Kit Diesel No Shocks Zone Offroad

SKU

ZOND53-FQMS

List price

$1,034.70

Price

$1,034.70

Description

Take your RAM 2500 to new heights with this 6.5 Inch lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:

Front Lift Height 6.5 Inch
Rear Lift Height 4.5 Inch
Front Lift Method Radius Arms
Rear Lift Method Coil Springs
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 4.5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 5.75 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 20 x 9
Back Spacing 3 5.75 Inch
Max Tire Size 3 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels
Welding Required No

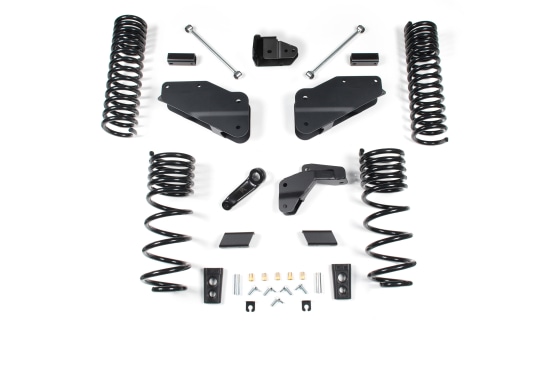

In The Box:

All Necessary Mounting / Installation Hardware
Bump Stops
Coil Springs
Dropped Pitman Arm
Radius Arm Drop Brackets
Sway Bar Relocation Brackets
Track Bar Relocation Bracket

Features:

Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and levelign the stance
Radius arm drop brackets to correct caster and improve suspension geometry
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Kit Components:

ZOND1459 14-18 Ram 2500 Rear 4.5 Inch Box Kit 1 711745598119
ZOND1601 13-14 3500/14 2500 Ram 6 Inch Box Kit 1 711745598249
ZOND3409 2014-2024 Ram 2500 4.5 Inch Rear Coil Spring 2 711745598584
ZOND3602 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 6.5 Inch Diesel 2 711745598645

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2014-2018 Ram 2500

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156363689

Availability: Available

Universal: No

Max Tire: 35x12.5

Shocks Included: No

Lift Height

6.5 Inch

Fuel Type

Diesel
