13-18 RAM 3500 4.5 Inch Replacement Radius Arm Lift Kit Diesel Zone Offroad

13-18 RAM 3500 4.5 Inch Replacement Radius Arm Lift Kit Diesel No Shocks Zone Offroad

SKU

ZOND54-FQMS

List price

$880.70

Price

$880.70

Description

Take your RAM 3500 to new heights with this 4.5 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:

Front Lift Height 4.5 Inch
Rear Lift Height 3 Inch
Material Steel
Front Lift Method Radius Arms
Rear Lift Method Coil Springs
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 4.5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 5.75 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 20 x 9
Back Spacing 3 5.75 Inch
Max Tire Size 3 35 x 12.5
Finish Powdercoat
Cutting Required No
Welding Required No

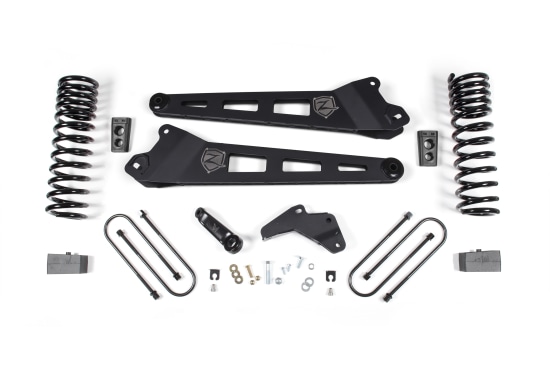

In The Box:

All Necessary Mounting / Installation Hardware
Bump Stops
Coil Springs
Dropped Pitman Arm
Rear Lift Block & U-Bolt Kit
Sway Bar Relocation Brackets
Track Bar Relocation Bracket
Radius Arms

Features:

Progressive rate front coil springs improve ride quality and offroad performance
HD radius arm to correct caster while maximizing ground clearance
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
Replacement rear lift blocks and u-bolts to lift and level the stance

Kit Components:

ZOND1307 Ram Rear 3 Inch Block Kit 4 Inch U-bolts 1 711745598010
ZOND1402 13 Ram 4.5 Inch Replacement Radius Arm Box Kit 1 711745598034
ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 1 711745598560
ZOND3402 13 3500/14 2500 Ram 4.5 Inch Coils-Pass Diesel 1 711745598577

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2013-2018 Ram 3500

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156363702

Availability: Available

Universal: No

Max Tire: 35x12.5

Shocks Included: No

Lift Height

4.5 Inch

Fuel Type

Diesel
