13-14 Dodge RAM 3500 6.5 Inch Replacement Radius Arm Lift Kit Diesel Zone Offroad

13-14 Dodge RAM 3500 6.5 Inch Replacement Radius Arm Lift Kit Diesel No Shocks Zone Offroad

SKU

ZOND57-FQMS

List price

$978.70

Price

$978.70

Description

Take your RAM 3500 to new heights with this 6.5 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.

Quick Specs:

Front Lift Height 6.5 Inch
Rear Lift Height 5 Inch
Front Lift Method Radius Arm Drop
Rear Lift Method Coil Springs
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 4.5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 5.75 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 20 x 9
Back Spacing 3 5.75 Inch
Max Tire Size 3 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

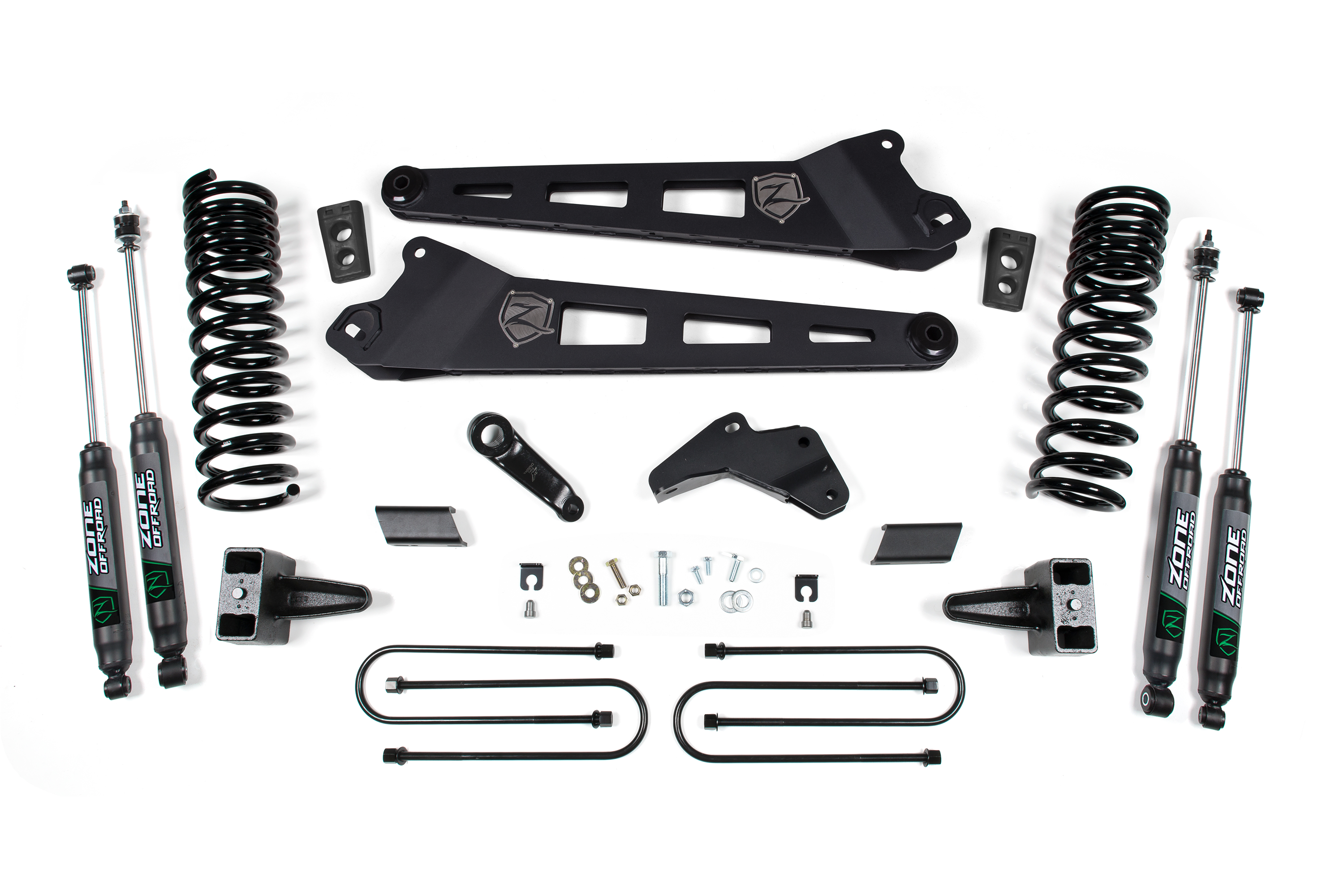

In The Box:

All Necessary Mounting / Installation Hardware
Bump Stops
Coil Springs
Dropped Pitman Arm
Rear Lift Block & U-Bolt Kit
Sway Bar Relocation Brackets
Track Bar Relocation Bracket
Radius Arms

Features:

Progressive rate front coil springs improve ride quality and offroad performance
HD radius arm to correct caster while maximizing ground clearance
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
Replacement rear lift blocks and u-bolts to lift and level the stance

Kit Components:

ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
ZOND1508 03-13 Ddge 2500 5.0 Inch Block Kit-4 Inch Axle 1 711745598188
ZOND1602 13 Ram 6 Inch Replacement Radius Arm Box Kit 1 711745598256
ZOND3602 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 6.5 Inch Diesel 2 711745598645

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2013-2018 Ram 3500

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156363757

Availability: Available

Universal: No

Max Tire: 35x12.5

Shocks Included: No

Lift Height

6.5 Inch

Fuel Type

Diesel
