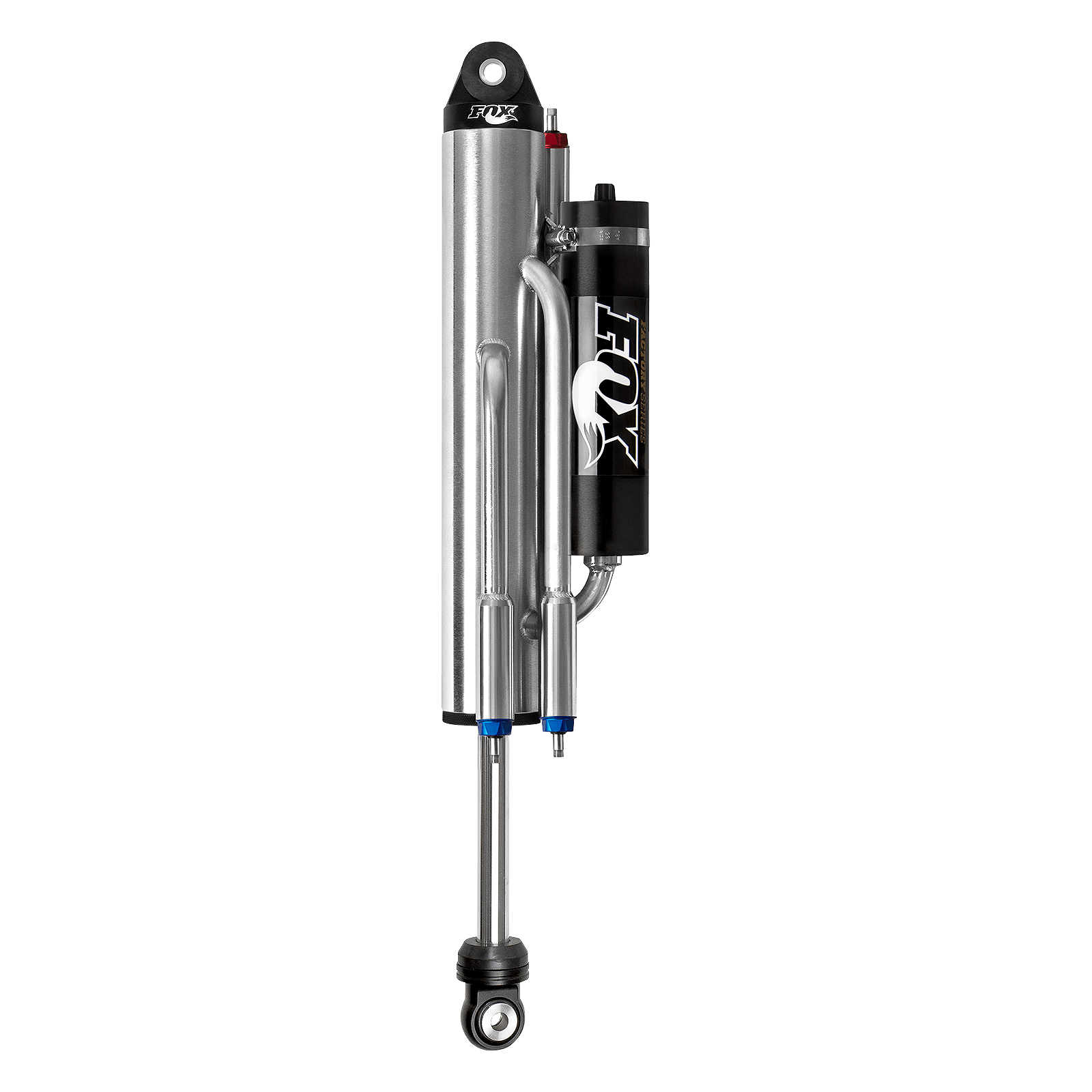

10-13 Ford Raptor Rear External Bypass Factory Race 3.0 Piggback 11.5 Inch 0-1 Inch Lift Fox Offroad Shocks
SKU
FOX88302047-BKTK
List price
$2,299.95
Price
$2,299.95

    At FOX, racing has always been the cornerstone of our product development. Our 3.0 Factory Race Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel Travel, increases oil capacity, and adds 60 percent more damping area over the stock FOX SVT shocks.

    They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.

    These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum Components and race-bred internal Valving.

    They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box.

    Large 2.5 inch remote Reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race Series 3.0 Coil-over Internal Bypass shocks utilize all of the same Components from our race winning Trophy Truck shocks with Eibach springs, stainless steel shock Shafts, PTFE-lined spherical Bearings, proprietary racing oil and high-temp Viton Seals.

    Part Number
    883-02-047
    Features

    • Performance Tuned For Vehicle Specific Application
    • Durable Zinc Plated Seamless Alloy Body
    • External Reservoir System Dissipates Heat Fast
    • Black Anodized CNC Machined Aluminum Components
    • Series Factory Race
    • Travel 11.42 Rear Lift Height 0-1
    • Body 3.0 inch Smooth bore and honed seamless alloy Body
    • Body Plating Zinc-plated for long lasting finish
    • Reservoir 2.5 inch Smooth bore and honed seamless alloy Reservoir
    • Components Black-anodized, CNC-machined 6061-T6 billet aluminum
    • Shaft 7/8 inch 17-4 H900 stainless steel hard-chrome plated
    • Piston 6061-T6 hard-anodized, high flow aluminum Piston
    • Valving Application specific Valving to maximize performance
    • Seals Redundant sealing pack system main seal, wiper seal, scraper seal High temperature Viton Seals
    • Bearings PTFE-lined, heat-treated, alloy steel spherical
    • Extended Length 29.35
    • Compressed Length 17.93
    • Top Mount Eyelet
    • Bottom Mount Eyelet
    Vehicle Fitment
    2010-2013 Ford F-150 SVT Raptor
    Installation Instructions
    Specs
    Country of Origin: USA
    Sold As: Pair
    Shock Type: External Bypass
    UPC: 714686851817
    Availability: Available
    Location: Rear
    Universal: No
    Collapsed Length: 17.93
    Extended Length: 29.35
    Shock Mount: Eyelet/Eyelet
    Sub Brand: Fox Offroad Shocks
    Travel/Length: 11.42
    Internal Part Number: 883-02-047
    Lift Height
    0-1 Inch Lift
    Category
    Suspension / Steering / Brakes
    Suspension
    Shocks
    Shock Absorber
    Brand
    Fox Factory
    Series
    Factory Race 3.0
    Vehicle Type
    Truck/SUV
