09-13 Dodge RAM 2500 8 Inch Lift Diesel Zone Offroad

09-13 Dodge RAM 2500 8 Inch Lift Diesel No Shocks Zone Offroad

SKU

ZOND36-FQMS

List price

$1,165.75

Price

$1,165.75

Description

Step up to our highest lift that will let you clear 38 Inch tires, but will still leave you in control. This coil spring and cast block lift is the easy and affordable way to create the truck you've always wanted.

Fits Diesel 4WD 2009 - 2013 Dodge / Ram 2500 / 3500.
Quick Specs:

Front Lift Height 8 Inch
Rear Lift Height 5 Inch
Front Lift Method Coil Springs
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 5 Inch
Max Tire Size 38x13.5
Wheel Size 2 18 x 9
Back Spacing 2 5 Inch
Max Tire Size 2 38x13.5
Wheel Size 3 20 x 9
Back Spacing 3.5 Inch
Max Tire Size 38x13.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

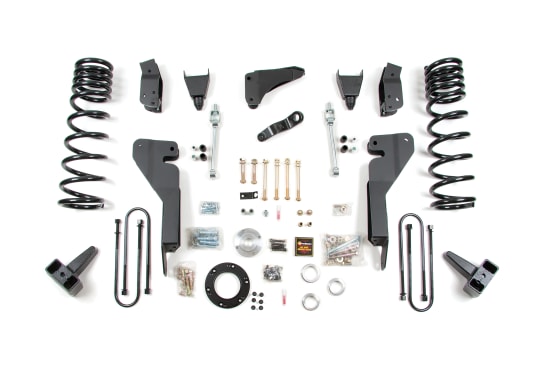

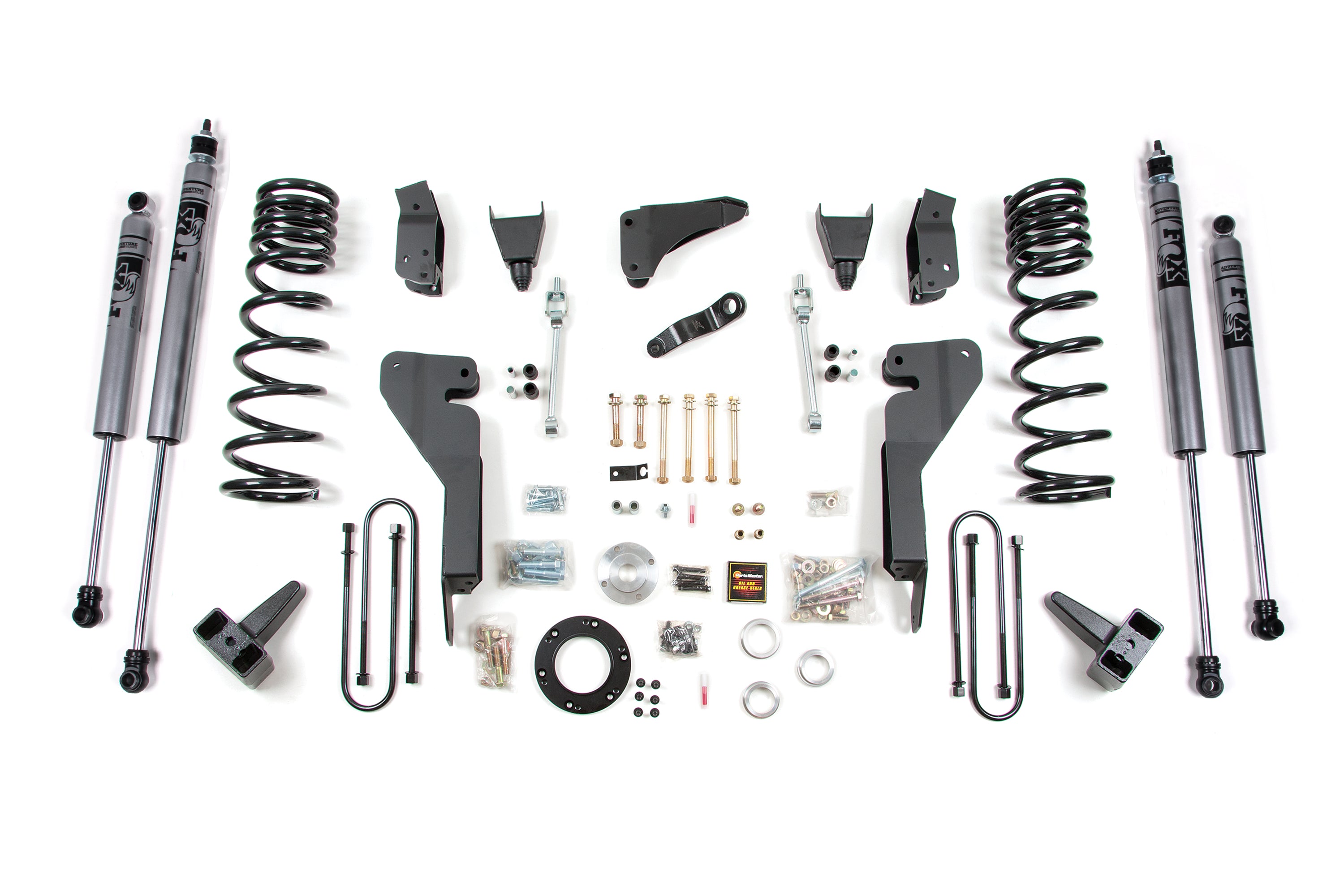

In The Box:

All Necessary Mounting / Installation Hardware
Brake Line Brackets
Coil Springs
Control Arm Relocation Brackets
Dropped Pitman Arm
Rear Lift Block & U-Bolt Kit
Track Bar Relocation Bracket
Transfer Case Indexing Ring

Features:

100 percent bolt-on design for easy installation.
High-strength control arm relocation brackets correct suspension geometry and add rigidity.

Kit Components:

ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
ZON7761 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595774
ZOND1418 03-12 Dodge 2500 4 Inch Block Kit-4 Inch Axle 1 711745598096
ZOND1801 03-13 Dodge 2500 Control Arm Mount Kit 1 711745598263
ZOND1803 08 Dodge 2500 6/8 Front Box Kit 1 711745598287
ZOND3601 03-12 Dodge 2500 6 Inch Coils Gas 1 711745598638

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2009-2010 Dodge Ram 3500

2009-2010 Dodge Ram 2500

2011-2012 Ram 3500

2011-2013 Ram 2500

Installation

Installation Instructions

a7a5b6037e33b72e15ec60992125632bb84ec875_D1801_6.pdf (21.54 MB)

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156363306

Availability: Available

Universal: No

Max Tire: 38x13.5

Shocks Included: Yes

Lift Height

8.0 Inch

Fuel Type

Diesel
