07-21 Toyota Tundra 3.5 Inch Adventure Series Lift Zone Offroad

07-21 Toyota Tundra 3.5 Inch Adventure Series Lift No Shocks Zone Offroad

SKU

ZONT6-FQMS

List price

$810.90

Price

$810.90

Description

Engineered to take advantage of your truck's factory suspension design, this system offers smooth on road ride quality while increasing wheel travel for when you hit the trails.

At the core of this system is a pair of Adventure Series upper control arms with a repositioned ball joint mount to provide improved suspension travel while eliminating the ball joint binding and premature wear.

The arms are constructed from 1/8 Inch steel with CNC-machined ball joint and bushing cups. MOOG ball joints come pre-installed and ready to handle off-road abuse. At the frame mount, the arms use factory-style rubber bushings for quiet, low maintenance operation.

A pair of top-mounted, steel strut spacers provide lift while retaining factory ride quality and speeding up installation time by not requiring strut disassembly. Factory bump stops are relocated, as is the sway bar.

Differential drop spacers and longer hardware keep the CV axle angles at a minimum while still allowing the use of the factory front driveline. In the rear, replacement shackles provide 1 Inch of lift to level the vehicle's stance.
Quick Specs:

Front Lift Height 3.5 Inch
Rear Lift Height 1 Inch - 2 Inch
Material Steel Tube
Front Lift Method Strut Spacers
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 6-6.25 Inch
Max Tire Size 35/70
Wheel Size 2 20 x 9
Back Spacing 2 6-6.25 Inch
Max Tire Size 2 295 / 60
Finish Powdercoat
Has Control Arm type Stamped Steel / Aluminium
Accommodates Factory Wheels Yes
Welding Required No

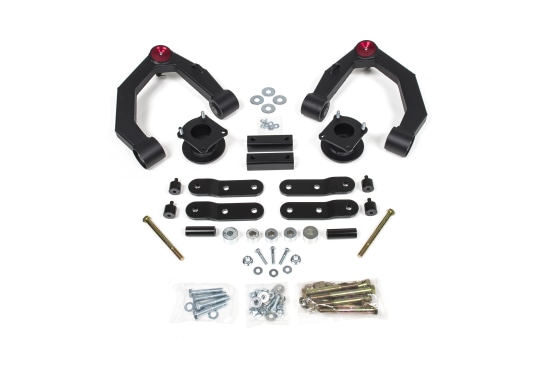

In The Box:

Boomerang Shackles - Rear
Control Arms
Strut Spacer - Front

Features:

Fully Welded, Heavy Duty Boxed Upper Control Arms That Dwarf The Factory Arms
CNC-Machined UCA Bushing & Ball Joint Cups
OE Style Rubber Bushings & Greasable Style Ball Joints For Quiet, Reliable, & Low Maintenance Operation.
Improved UCA Range Of Motion Compared To Stock Arms
UCAs Utilize Replaceable Ball Joints and Bushings
Top Mounted Strut Spacer Retains Factory Ride Quality & Offers Easy Installation
Differential Relocation to Correct CV Shaft Operating Angle
Long Lasting Black Powdercoat Finish
Limited Lifetime Warranty

Kit Components:

ZONT2300 07-21 Toyota Tundra Adventure Series UCA Kit 1 711745601765
ZONT2301 07-21 Toyota Tundra 3.5 Inch Box Kit 1 711745601772

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2007-2021 Toyota Tundra

Installation

Installation Instructions

4e258b1e23eb338100bd299056753ded26eda6ef_T2301_0.pdf (5.77 MB)

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156367946

Availability: Available

Universal: No

Max Tire: 305/70

Shocks Included: No

Lift Height

3.5 Inch

Fuel Type

Gas/Diesel
