07-15 Toyota Tundra 5.0 Inch Lift Kit Zone Offroad

07-15 Toyota Tundra 5.0 Inch Lift Kit No Shocks Zone Offroad

SKU

ZONT1-FQMS

List price

$1,256.80

Price

$1,256.80

Description

The Tundra has some serious power, take advantage of it with this 5 Inch Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together.

Fits 2007 - 2015 Toyota Tundra

Quick Specs:

Front Lift Height 5 Inch
Rear Lift Height 3 Inch
Front Lift Method Knuckle & Drop Cross-Member
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 5.5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 6.25 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 22 x 9
Back Spacing 3 6.25 Inch
Max Tire Size 3 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels No
Welding Required No

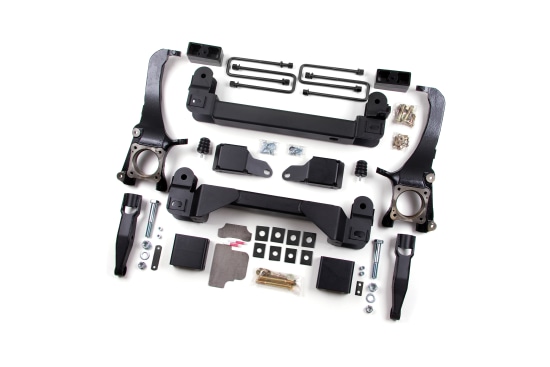

In The Box:

All Necessary Mounting / Installation Hardware
Crossmembers
Lower Strut Extensions
Rear Lift Block & U-Bolt Kit
Steering Knuckles
Tie Rod End(s)

Features:

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
Lower strut extensions to provide lift and install easily
Weld-in chassis plates add strength and rigidity
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line, and bump stop relocation brackets to correct operating angles

Kit Components:

ZONT2500 07-15 Toyota Tundra 5.0 Inch Box Kit (1of4) 1 711745601833
ZONT2501 07-21 Toyota Tundra 5.0 Inch Box Kit (2of4) 1 711745601840
ZONT2502 07-21 Toyota Tundra 5.0 Inch Box Kit (3of4) 1 711745601857
ZONT2503 07-21 Toyota Tundra 5.0 Inch Box Kit (4of4) 1 711745601864

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2007-2015 Toyota Tundra

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156367816

Availability: Available

Universal: No

Max Tire: 35x12.5

Shocks Included: No

Lift Height

5.0 Inch

Fuel Type

Gas/Diesel
