05-15 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit No Shocks Zone Offroad
SKU
ZONT4-FQMS
List price
$1,151.80
Price
$1,151.80

    Raise it up with this 4 Inch Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear.

    This kit clears your 4WD 2005 - 2015 Toyota Tacoma for tires up to 33 Inches with some trimming.
    Quick Specs:

    • Front Lift Height 4 Inch
    • Rear Lift Height 3 Inch
    • Front Lift Method Knuckle & Strut Spacer
    • Rear Lift Method Cast Blocks
    • Lift Type Lift Kit
    • Wheel Size 18 x 9
    • Back Spacing 4.5 Inch
    • Max Tire Size 33 x 12.5
    • Wheel Size 2 20 x 9
    • Back Spacing 2 4.5 Inch
    • Max Tire Size 2 33 x 12.5
    • Wheel Size 3 22 x 9
    • Back Spacing 3 4.5 Inch
    • Max Tire Size 33 x 12.5
    • Is Adjustable No
    • Finish Powdercoat
    • Cutting Required No
    • Accommodates Factory Wheels No
    • Welding Required No

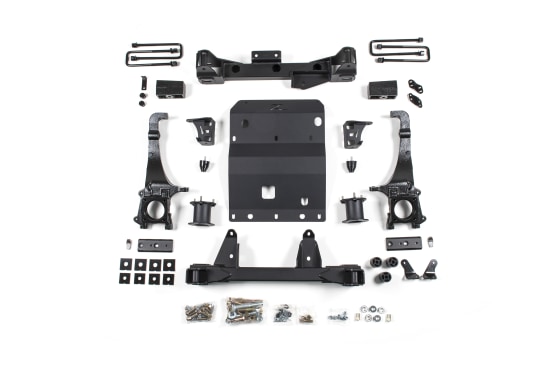

    In The Box:

    • All Necessary Mounting / Installation Hardware
    • Crossmembers
    • Rear Lift Block & U-Bolt Kit
    • Steering Knuckles
    • Strut Spacers

    Features:

    • High strength crossmembers to correct lower control arm positioning
    • Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
    • Top mounted strut spacers to provide lift and install easily
    • Full width belly skid plate offers improved offroad protection
    • Rear lift blocks and u-bolts to lift and level the stance
    • Bump stop, sway bar and brake line relocation brackets to correct operating angles

    Kit Components:

    • ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789
    • ZONT2401 2005-2015 Toyota Tacoma Box Kit (2of3) 1 711745601796
    • ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888
    • ZONT2602 2005-2015 Toyota Tacoma Box Kit (3of3) 1 711745601901
    0 array:5 [
      "#type" => "html_tag"
      "#tag" => "iframe"
      "#attributes" => array:7 [
        "src" => "https://ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
        "scrolling" => false
        "width" => 600
        "height" => 339
        "class" => array:1 [
          0 => "media-oembed-content"
        ]
        "loading" => "lazy"
        "title" => "Offroad Trip - Adventure Series | Michigan"
      ]
      "#attached" => array:1 [
        "library" => array:1 [
          0 => "media/oembed.formatter"
        ]
      ]
      "#cache" => array:3 [
        "contexts" => []
        "tags" => array:1 [
          0 => "config:media.settings"
        ]
        "max-age" => -1
      ]
    ]

    Vehicle Fitment
    2005-2015 Toyota Tacoma
    Specs
    Country of Origin: USA
    Sold As: Kit
    UPC: 810156367892
    Availability: Available
    Universal: No
    Max Tire: 33x12.5
    Shocks Included: No
    Lift Height
    4.0 Inch
    Fuel Type
    Gas/Diesel
    Category
    Suspension / Steering / Brakes
    Suspension
    Lift Kits
    Brand
    Zone Offroad
    Vehicle Type
    Truck/SUV

    Kit Components: ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789
    ZONT2401 2005-2015 Toyota Tacoma Box Kit (2of3) 1 711745601796
    ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888
    ZONT2602 2005-2015 Toyota Tacoma Box Kit (3of3) 1 711745601901
